UPCI portable CTEL holder (Universal Portable CTEL Interface), component description - GF82.70-P-5001SX

MODEL 221.0/1 with CODE (494) USA version up to Model Year 8

MODEL 221.0/1 with CODE (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada up to Model Year 8

MODEL 221.0/1 with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada up to Model Year 8

MODEL 221.0/1 with CODE (386) Preinstallation for telephone "Handy", UPCI system up to Model Year 8

MODEL 221.0/1 with CODE (388) Telephone "Handy", UPCI system up to Model Year 8

MODEL 216.3 with CODE (494) USA version up to Model Year 8

MODEL 216.3 with CODE (386) Preinstallation for telephone "Handy", UPCI system up to Model Year 8

MODEL 216.3 with CODE (388) Telephone "Handy", UPCI system up to Model Year 8

Illustrated on model 221

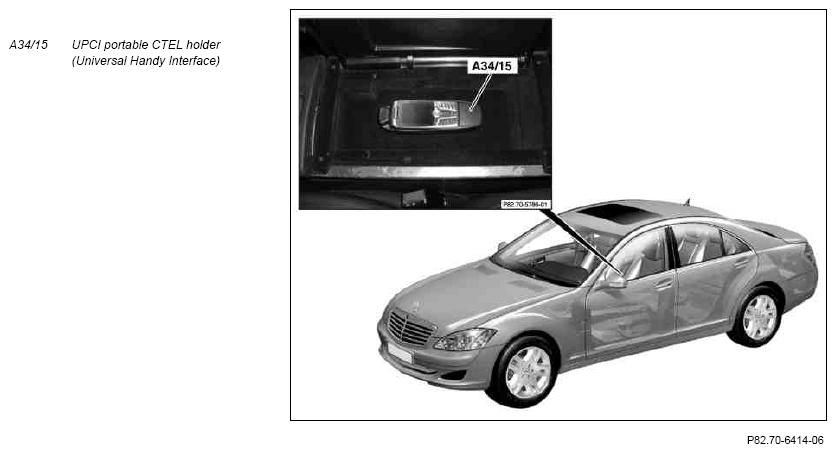

Fig 1: Identifying UPCI Portable CTEL Holder (Universal Handy Interface) - Illustrated On Model 221

Courtesy of MERCEDES-BENZ USA

Location

The UPCI [UHI] portable CTEL holder (Universal Portable CTEL Interface) is in the center console.

Task

The different UPCI [UHI] portable CTEL holders (Universal Handy Interface) enable various portable CTELs (A34/6) (e.g. Motorola) to be used. The portable CTEL is directly connected to the Universal Portable CTEL Interface (UPCI [UHI]) control unit (N123/1) via the UPCI [UHI] portable CTEL holder (Universal Portable CTEL Interface) via a contact plate.
