Center console button group component description - GF82.70-P-4131SX

MODEL 221.0/1 with CODE (386) Preinstallation for telephone "Handy", UPCI system up to Model Year 8

MODEL 221.0/1 with CODE (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada up to Model Year 8

MODEL 221.0/1 with CODE (388) Telephone "Handy", UPCI system up to Model Year 8

MODEL 221.0/1 with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada up to Model Year 8

MODEL 221.0/1 with CODE (494) USA version up to Model Year 8

MODEL 221.0/1 with CODE (498) Japan version up to Model Year 8

MODEL 216.3 with CODE (386) Preinstallation for telephone "Handy", UPCI system up to Model Year 8

MODEL 216.3 with CODE (388) Telephone "Handy", UPCI system up to Model Year 8

MODEL 216.3 with CODE (494) USA version up to Model Year 8

MODEL 216.3 with CODE (498) Japan version up to Model Year 8

Illustrated on model 221

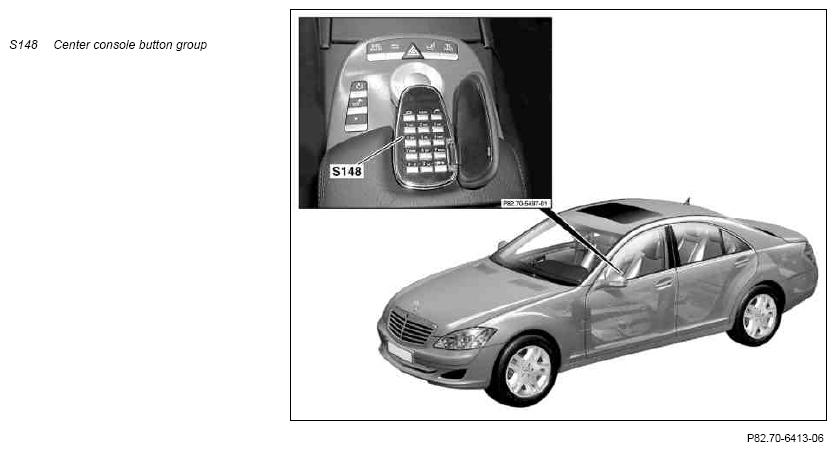

Fig 1: Identifying Center Console Button Group - Illustrated On Model 221

Courtesy of MERCEDES-BENZ USA

Location

The center console button group is installed in the center console.

Task

In order to make the portable CTEL (A34/6) easier to use, the center console button group is a copy of the portable CTEL keypad. The center console button group takes over the functions of the portable CTEL keypad.
