Mobile phone system, location of components - GF82.70-P-0007-01LA

MODEL 216 up to 31.5.09 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada as of Model Year 2009 /AEJ 08

MODEL 216 except CODE (498) Japan version as of Model Year 2010 /AEJ 09

Vehicles up to 31.5.09 with code (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system

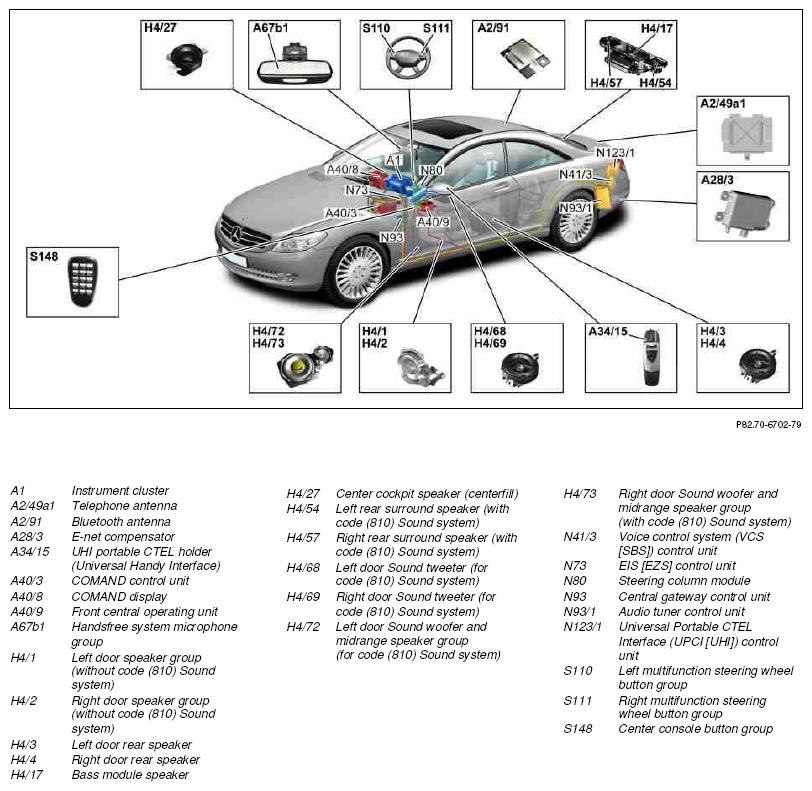

Fig 1: Mobile Phone System Components Location - Vehicles Up To 31.5.09 With Code (386)

Courtesy of MERCEDES-BENZ USA

Vehicles up to 31.5.09 with code (389) Mobile phone preinstallation with universal interface, USA/Canada

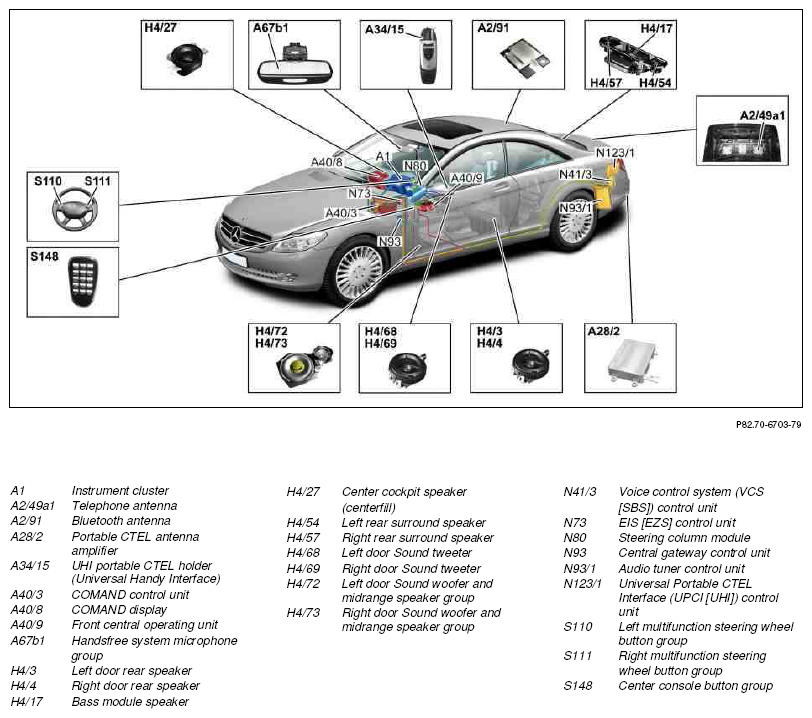

Fig 2: Mobile Phone System Components Location - Vehicles Up To 31.5.09 With Code (389)

Courtesy of MERCEDES-BENZ USA

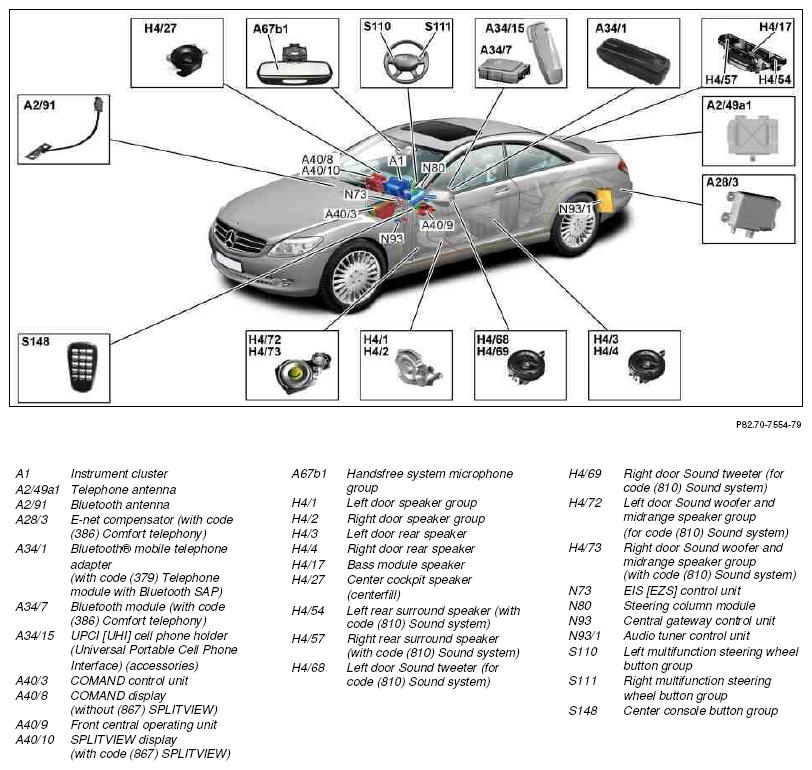

Fig 3: Mobile Phone System Components Location - Vehicles As Of 1.6.09

Courtesy of MERCEDES-BENZ USA
