GPS antenna splitter, component description - GF82.62-P-3129SXU
MODEL 216.3, 221.0/1 with CODE (494) USA version up to Model Year 8
Illustrated on model 221

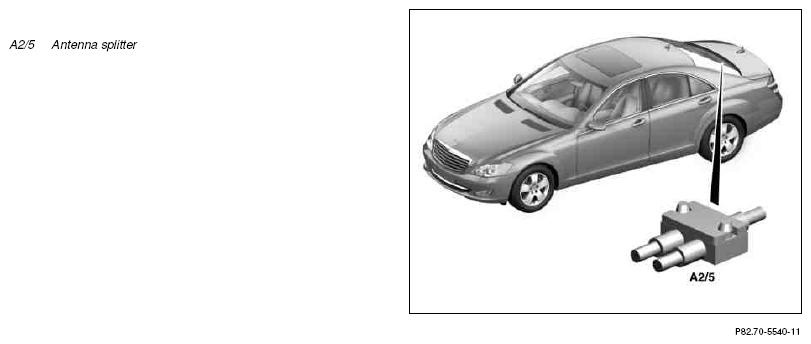

Location
The antenna splitter is installed beneath the left rear shelf.
Task
The antenna splitter splits up the Global Positioning System (GPS) signal and relays it to the COMAND controller unit (A40/3) and to the emergency call system control unit (N123/4).
The antenna splitter receives the GPS signal from the telephone and GPS roof antenna (A2/49) (model 221) or from the telephone and GPS antenna (A2/49) (model 216).
