Wiper system (WSA), location of components - GF82.30-P-0003-01SX

MODEL 221.0 /1, 216.3 up to Model Year 8

Shown on model 221.0

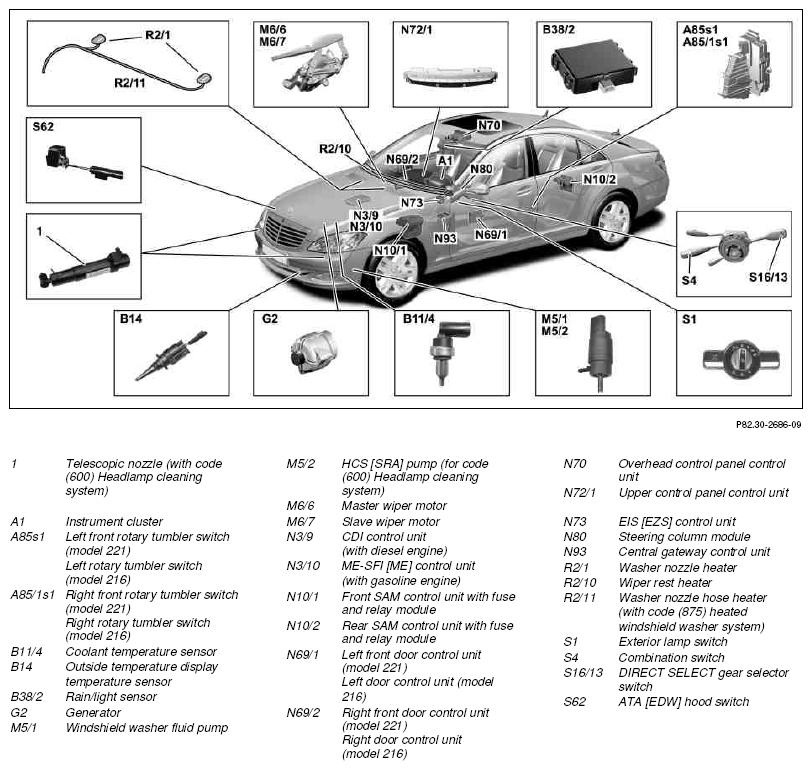

Fig 1: Wiper System (WSA) Components Location - Shown On Model 221.0
G10112172Courtesy of MERCEDES-BENZ USA
