Wiper system (WSA), location of components - GF82.30-P-0003-01LA

MODEL 216.3 as of Model Year 09 /AEJ 08

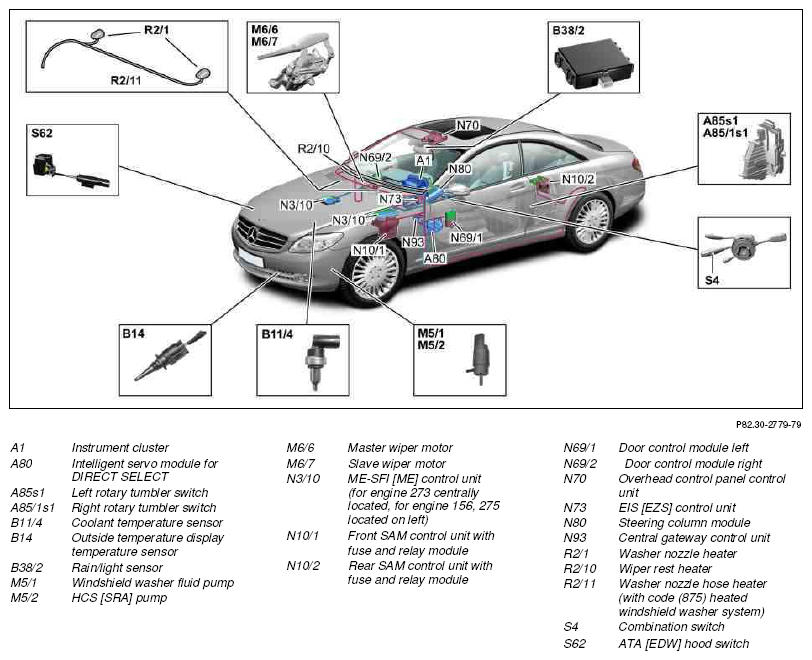

Fig 1: Wiper System (WSA) Components Location
G10112170Courtesy of MERCEDES-BENZ USA
