Wiper system (WSA) block diagram - GF82.30-P-0003-04LE

MODEL 216.3, 221.0 /1 as of Model Year 09 /AEJ 08

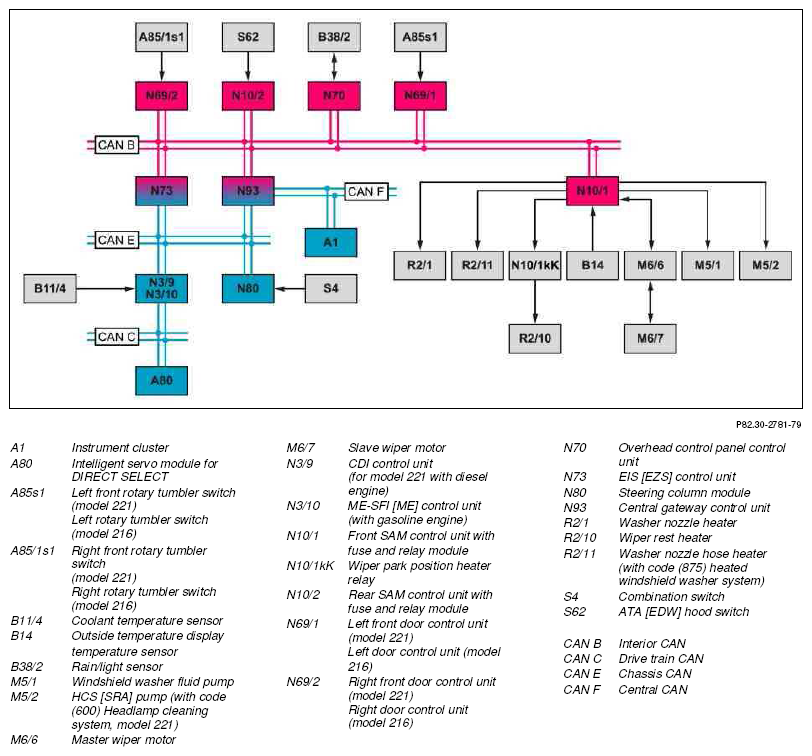

Fig 1: Wiper System (WSA) Block Diagram
G10112174Courtesy of MERCEDES-BENZ USA
