Washer nozzles/washer nozzle hose heater, function - GF82.35-P-3003SX
MODEL 221.0/1, 216.3 up to Model Year 8
Function
The washer nozzle heater and the washer nozzle hose heater are automatically switched on if:
- Circuit 61 ON (engine running)
- An outside air temperature of less than 5 °C is detected.
Switching-off occurs automatically when:
- Term. 61 OFF (motor OFF)
- An outside air temperature of greater than 8 °C is detected.

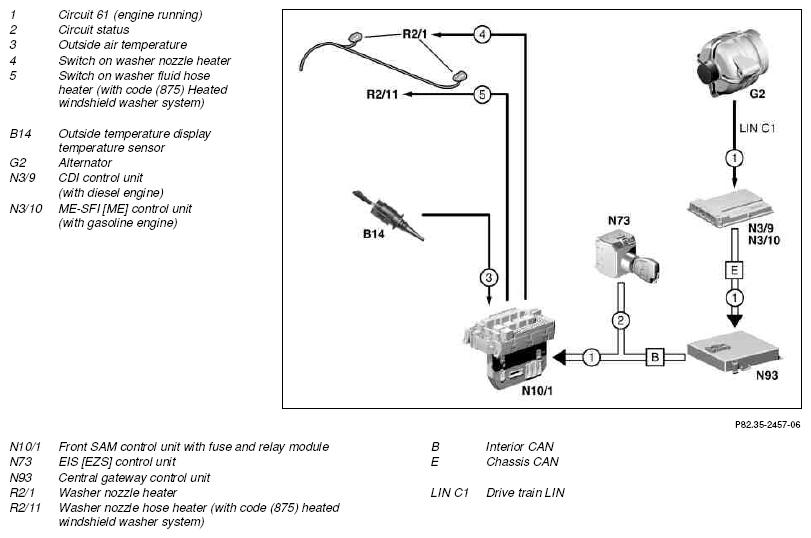

Actuation of heating elements
The washer nozzle heater and the washer nozzle hose heater are actuated by the front SAM control unit.
| Outside air temperature sensor component description | B14 | GF83.57-P-4000SX | |
| CDI control unit component description | N3/9 Model 221.0/2 with engine 642 |
GF07.16-P-6000SX | |
| ME-SFI [ME] control unit, component description | N3/10 Model 221 with engine 272.965 and 273.961 |
GF07.61-P-6000V | |
| ME-SFI control unit, location/task/design/function | N3/10 Model 221 with engine 275.953/982 |
GF07.61-P-5000M | |
| Driver-side SAM control unit with fuse and relay module, component description | N10/1 | GF54.21-P-6010SX | |
| Electronic ignition/starter switch control unit (EIS) component description | N73 | GF80.57-P-6000SX | |
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX |
