Interior illumination (IBL), location of components - GF82.20-P-0002-01LE

MODEL 216.3, 221.0 /1 as of Model Year 2009 /AEJ 08

Shown on model 221.0

Manual interior illumination

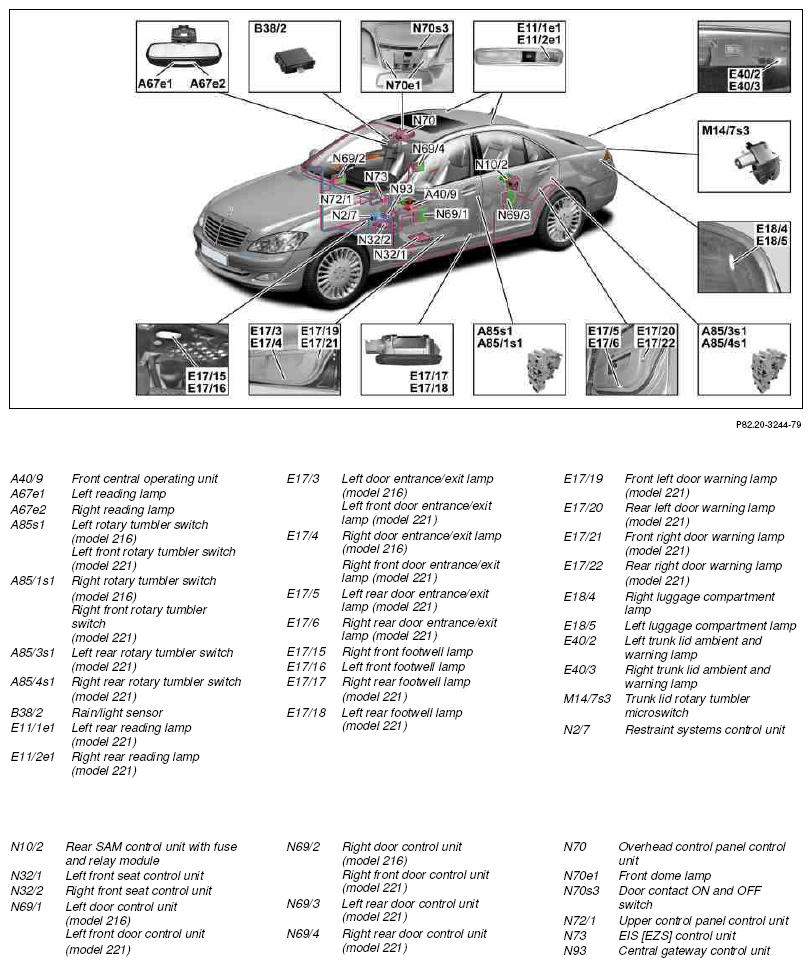

Fig 1: Manual Interior Illumination Components Location - Shown On Model 221.0

Courtesy of MERCEDES-BENZ USA

Shown on model 221

Automatic interior illumination

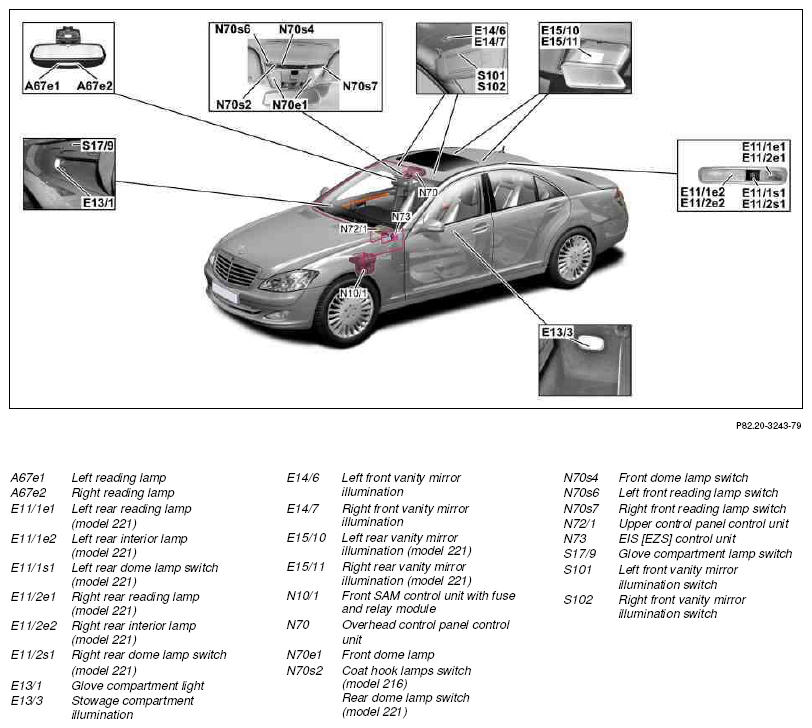

Fig 2: Automatic Interior Illumination Components Location - Shown On Model 221

Courtesy of MERCEDES-BENZ USA

Symbol and ambiance illumination Shown on model 221 without code (882) Interior monitoring (with ATA only)

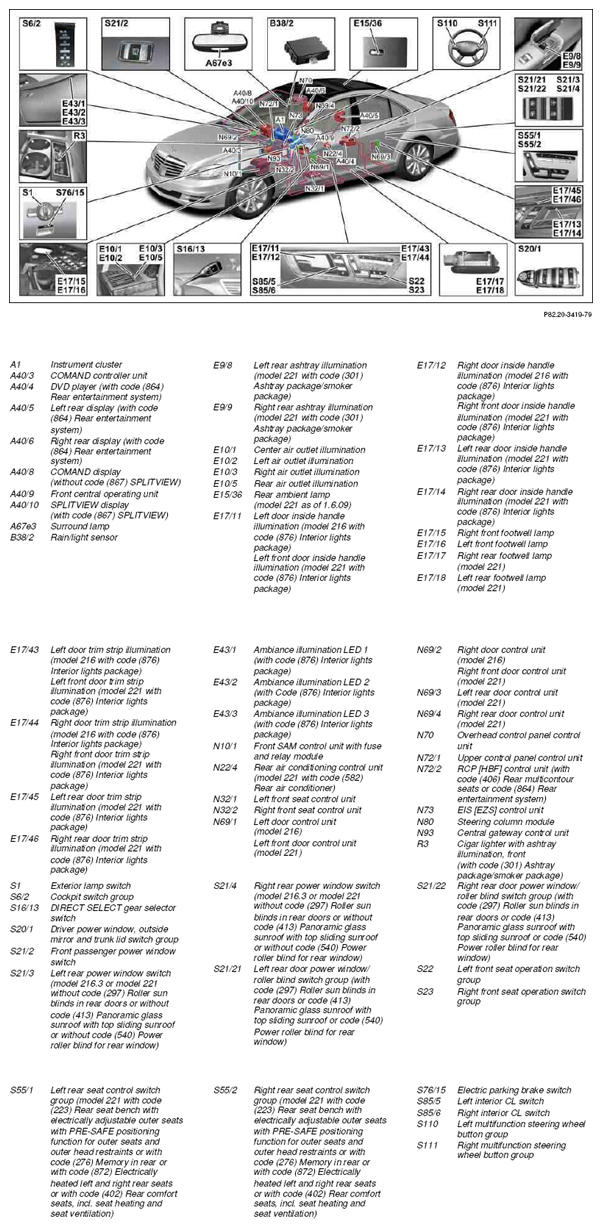

Fig 3: Symbol And Ambiance Illumination Components Location - Shown On Model 221

Courtesy of MERCEDES-BENZ USA
