Exterior lights, location of components - GF82.10-P-0003-02LE

MODEL 216.3, 221.0 /1 as of Model Year 2009 /AEJ 08

Shown on model 221.0

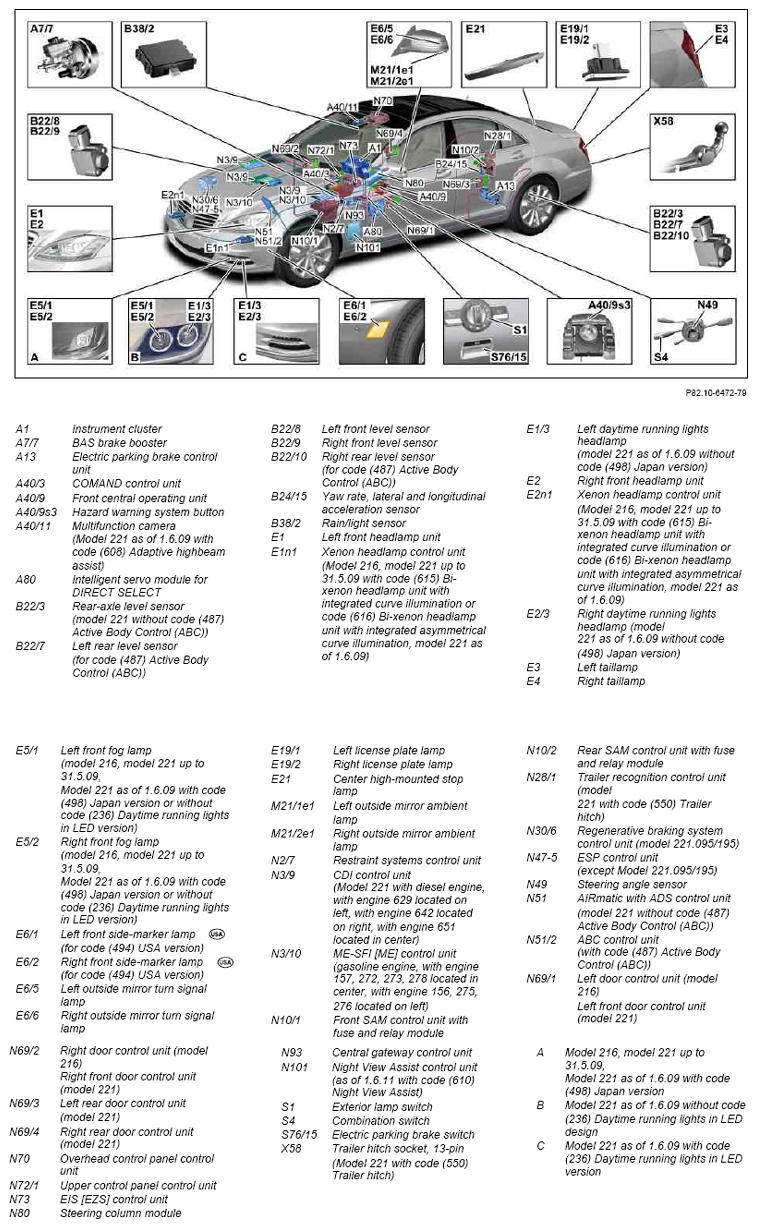

Fig 1: Exterior Lights Component Locations - Shown On Model 221.0

Courtesy of MERCEDES-BENZ USA
