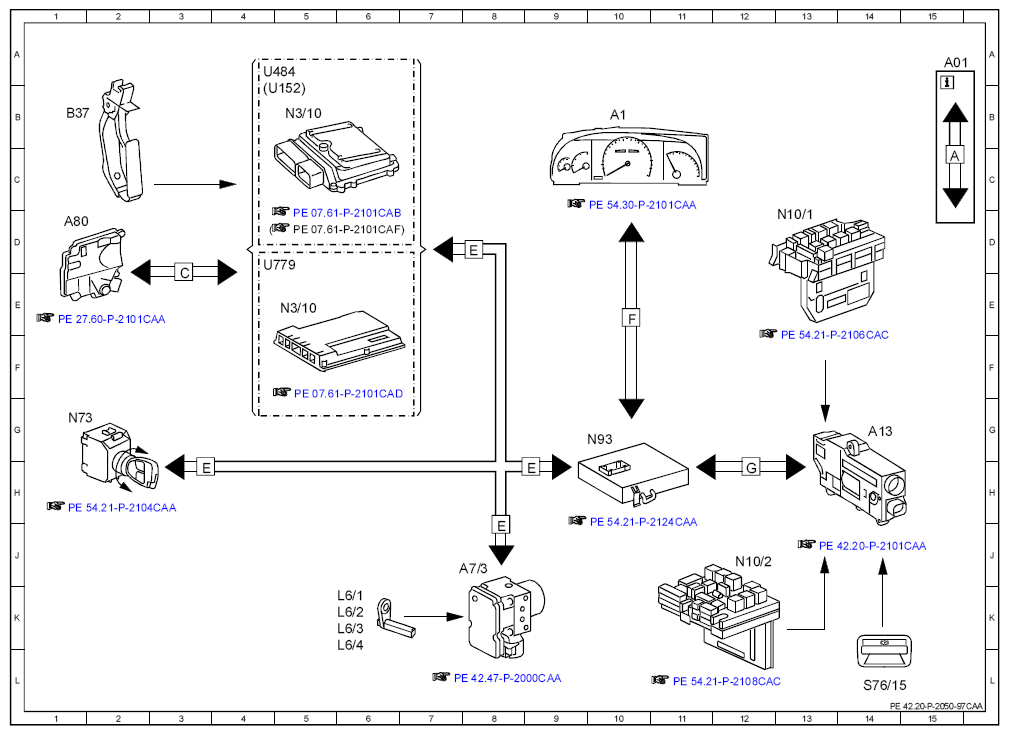

Electrical function schematic for electric parking brake - PE42.20-P-2050-97CAA
MODEL 216 up to model year 08/YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 15A |
| A1 | Instrument cluster | 10B |
| A13 | Electric parking brake control unit | 14G |
| A7/3 | Traction system hydraulic unit | 7J |
| A80 | Intelligent servo module for DIRECT SELECT | 1D |
| B37 | Accelerator pedal sensor | 2B |
| L6/1 | Left front rpm sensor | 6K |
| L6/2 | Right front rpm sensor | 6K |
| L6/3 | Left rear rpm sensor | 6K |
| L6/4 | right rear rpm sensor | 6L |
| N10/1 | Front SAM control unit with fuse and relay module | 13D |
| N10/2 | Rear SAM control unit with fuse and relay module | 12J |
| N3/10 | ME-SFI [ME] control unit | 5B |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N73 | EIS [EZS] control unit | 1G |
| N93 | Central gateway control unit | 10G |
| S76/15 | Electric parking brake switch | 14L |
| U152 | Valid for engine 156 | 5B |
| U484 | Valid for M273 ME | 5A |
| U779 | Valid for engine 275 | 5D |
