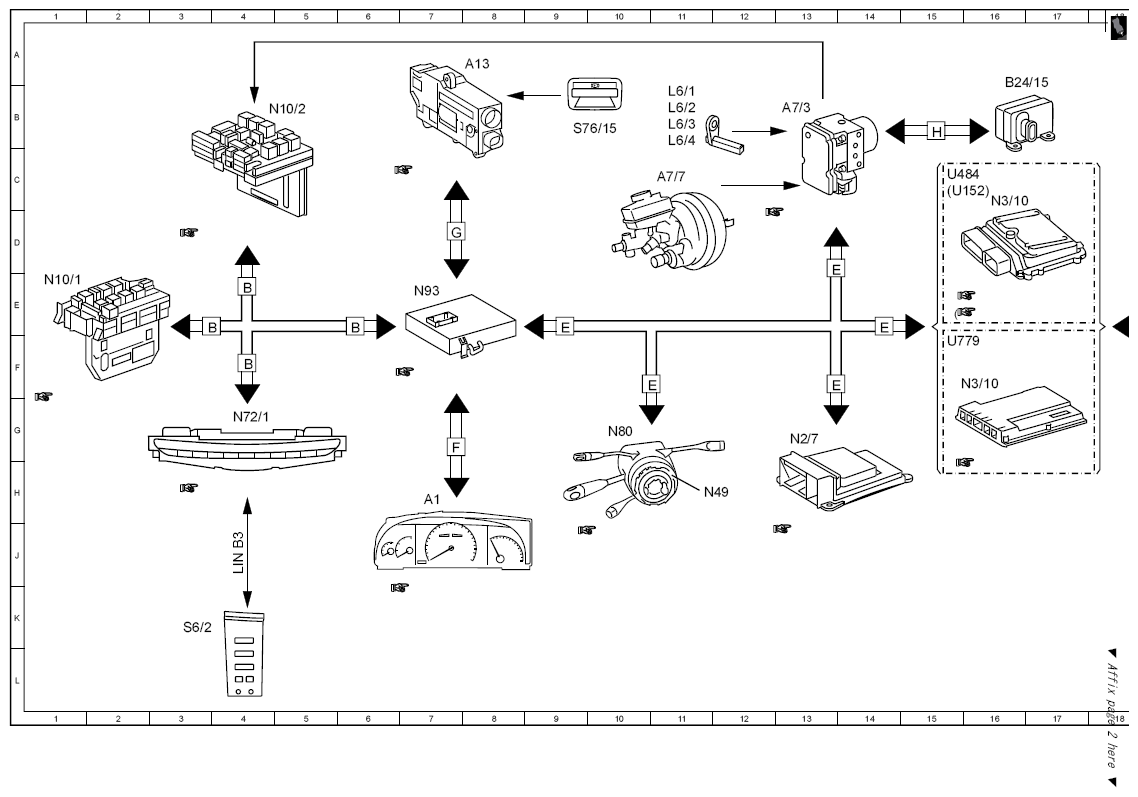

| A01 |
Explanation of CAN and LIN-Bus |
23L |
| A1 |
Instrument cluster |
7H |
| A13 |
Electric parking brake control unit |
8A |
| A7/3 |
Traction system hydraulic unit |
13B |
| A7/7 |
BAS brake booster |
11C |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
16B |
| L6/1 |
Left front rpm sensor |
11B |
| L6/2 |
Right front rpm sensor |
11B |
| L6/3 |
Left rear rpm sensor |
11B |
| L6/4 |
right rear rpm sensor |
11B |
| LIN B3 |
OBF LIN |
4H |
| N10/1 |
Front SAM control unit with fuse and relay module |
1E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5B |
| N15/3 |
ETC [EGS] control unit |
21F |
| N2/7 |
Restraint systems control unit |
13G |
| N3/10 |
ME-SFI [ME] control unit |
16F |
| N3/10 |
ME-SFI [ME] control unit |
16C |
| N49 |
Steering angle sensor |
11H |
| N72/1 |
Upper control panel control unit |
4G |
| N80 |
Steering column module |
10G |
| N93 |
Central gateway control unit |
7E |
| S6/2 |
Cockpit switch group |
3K |
| S76/15 |
Electric parking brake switch |
9B |

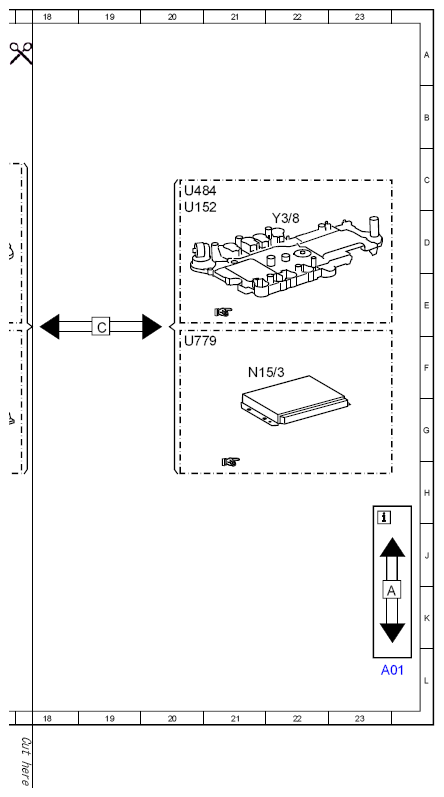

| U152 |
Valid for engine 156 |
15C |
| U152 |
Valid for engine 156 |
20D |
| U484 |
Valid for M273 ME |
20C |
| U484 |
Valid for M273 ME |
15C |
| U779 |
Valid for engine 275 |
20F |
| U779 |
Valid for engine 275 |
15F |
| Y3/8 |
Electric control unit (VGS) |
22D |
