Wiring diagram rear control module - PE67.39-U-2101-97CAA

Code:	Designation:	Position:
CAN B	Interior CAN	8K
F1/6	Right instrument panel fuse box	3L
F1/6f81	Fuse 81	3K
F1/6f82	Fuse 82	1K
M10/5	Left rear power window motor	11L
M10/6	Right rear power window motor	14L
N22/6	Rear control unit	4A
N22/6	Rear control unit	12A
N22/6	Rear control unit	20A
S21/3	Left rear power window switch	17L
S21/4	Right rear power window switch	20L
W17	Ground (right rear seat)	2E
X30/33	Right interior CAN/FFS [RBA] voltage distributor connector	8L
Y24/4	Left head restraint raise valve	22L
Y24/5	Right head restraint raise valve	23L

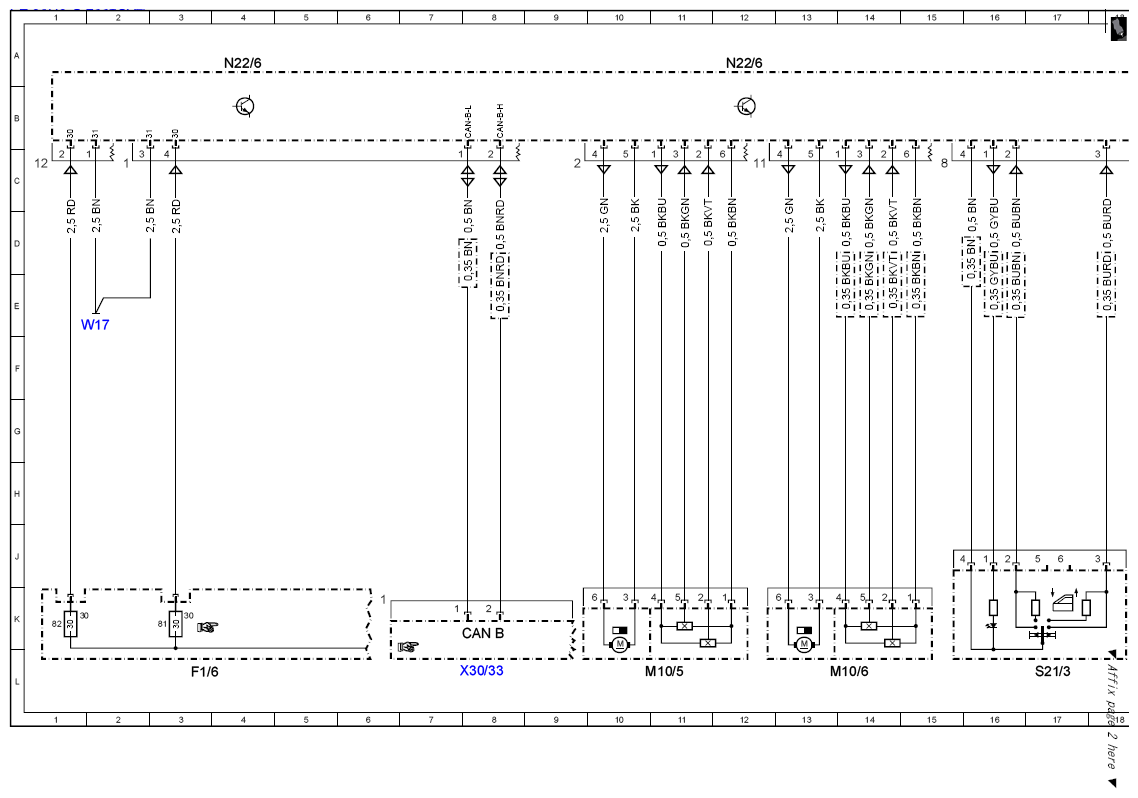

Fig 1: Rear Control Module Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

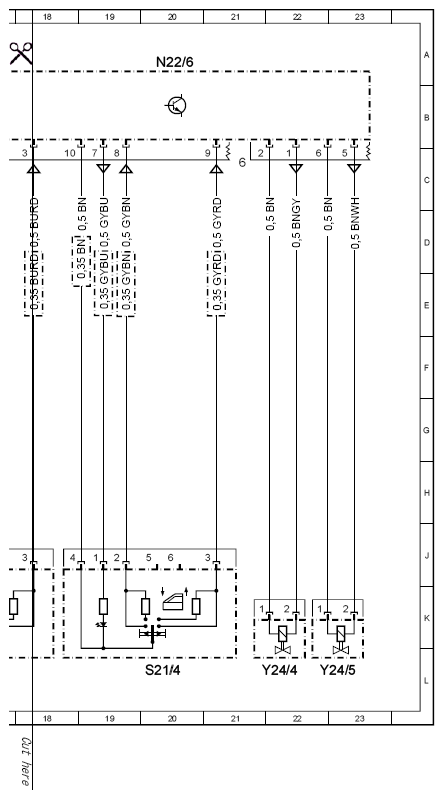

Fig 2: Rear Control Module Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
