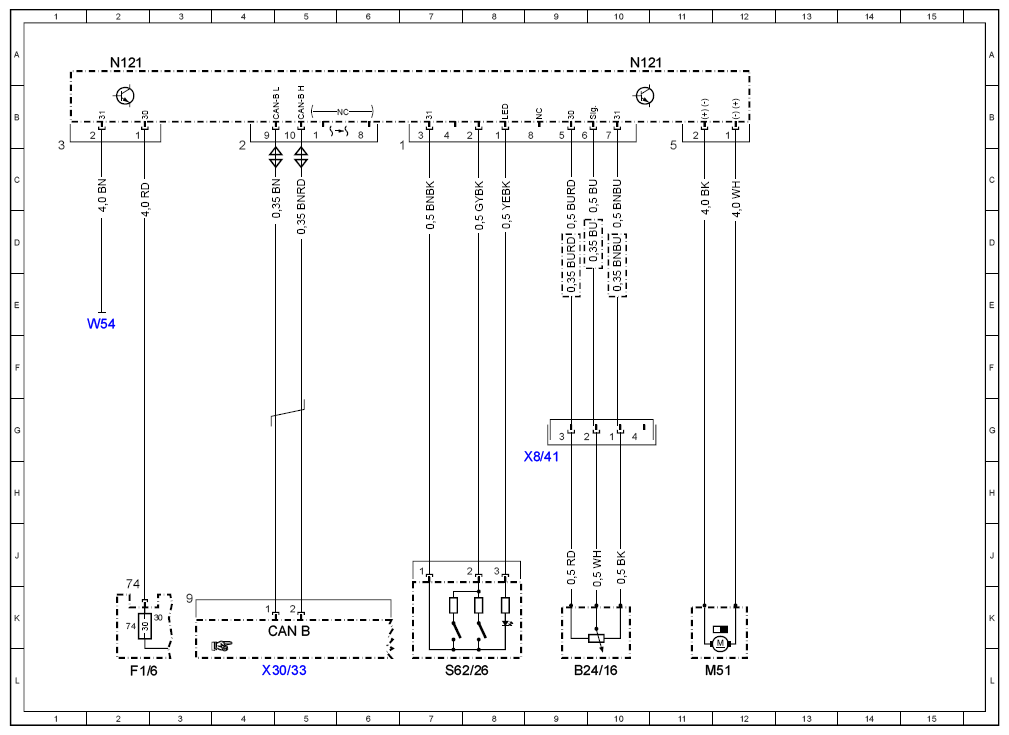

Wiring diagram of remote trunk locking control module - PE72.30-U-2101-97CAB
| Code: | Designation: | Position: |
|---|---|---|
| B24/16 | Trunk lid position sensor | 9L |
| CAN B | Interior CAN | 5K |
| F1/6 | Right instrument panel fuse box | 2L |
| F1/6f74 | Fuse 74 | 2K |
| M51 | TLC [HDS] hydraulic pump | 11L |
| N121 | TLC [HDS] control unit | 2A |
| N121 | TLC [HDS] control unit | 10A |
| S62/26 | TLC [HDS] button | 7L |
| W54 | Ground (right rear wheelhouse) | 2E |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 4L |
| X8/41 | Trunk lid position sensor connector | 9H |
