Wiring diagram of central locking (CL) - PE80.20-U-2000-97CAB

Code: Designation: Position:
A85/1 Right door lock unit 6L
A85/1m1 Right CL [ZV] motor 2L
A85/1m2 Right opening assist motor 9L
A85/1m3 Right power closing motor 8L
A85/1s1 Right rotary tumbler switch 3L
A85/1s2 Right drive lock pawl switch 5L
A85/1s3 Right safety limit switch 5L
N69/2 Right door control unit 4A
N69/5 KEYLESS-GO control unit 11L
U82 Valid for KEYLESS GO 8E
X35/2 Right front door and FFS [RBA] connector 11H

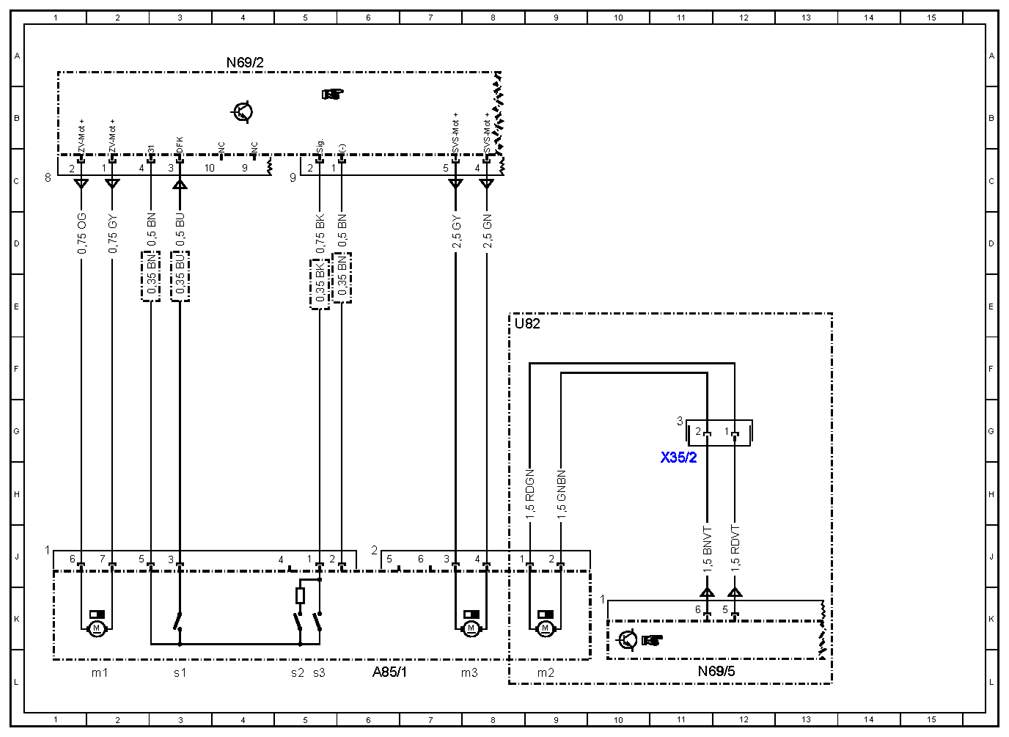

Fig 1: Central Locking (CL) - Wiring Diagram
