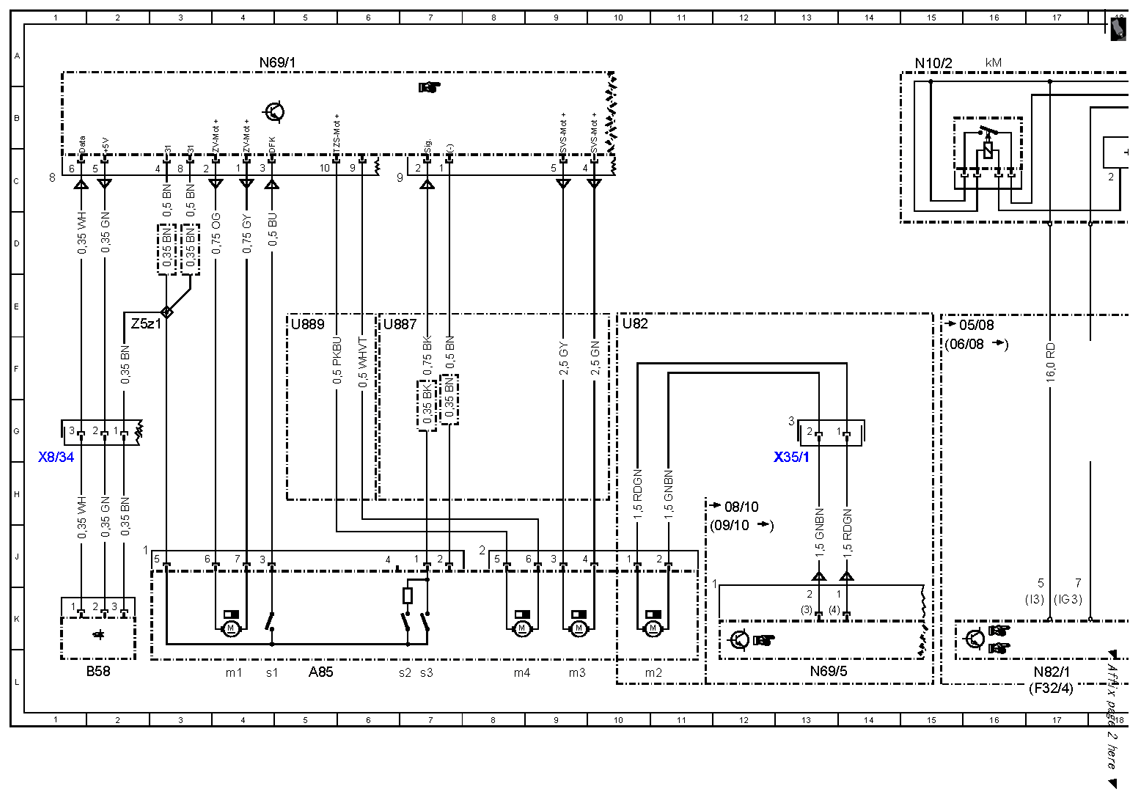

| A85 |
Left door lock unit |
5L |
| A85m1 |
Left CL [ZV] motor |
4L |
| A85m2 |
Left opening assist motor |
11L |
| A85m3 |
Left power closing motor |
9L |
| A85m4 |
Left door additional lock motor |
8L |
| A85s1 |
Left rotary tumbler switch |
4L |
| A85s2 |
Left drive lock pawl switch |
7L |
| A85s3 |
Left safety limit switch |
7L |
| B58 |
Driver door infrared sensor |
2L |
| F32/4 |
Interior prefuse box |
17L |
| F32/4 |
Interior prefuse box |
17L |

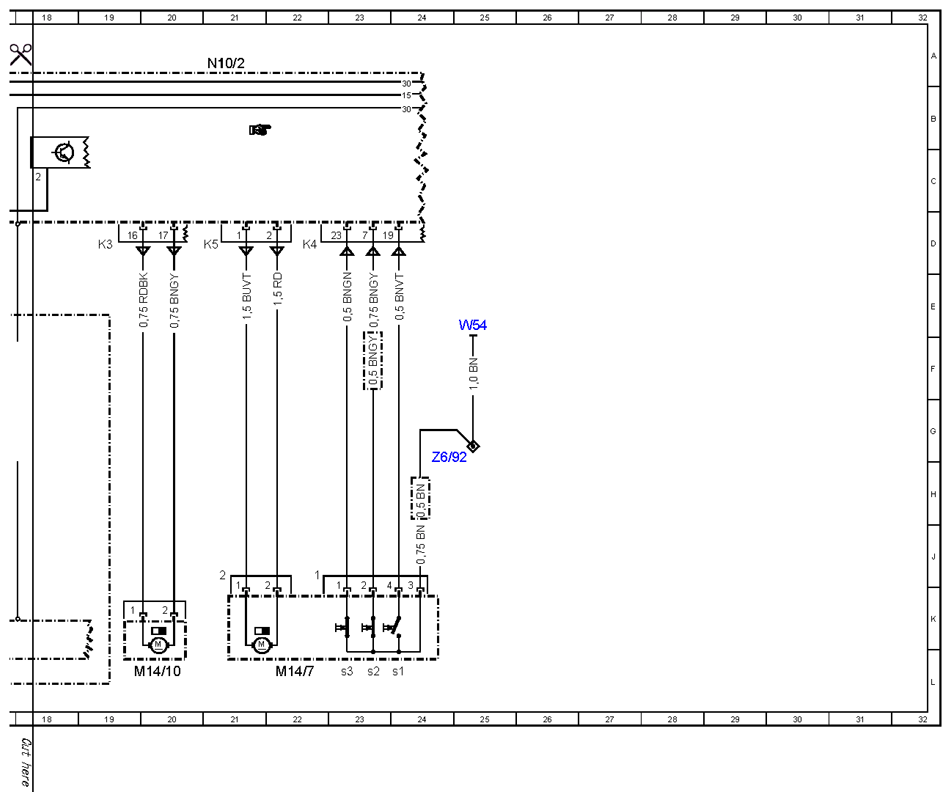

| M14/10 |
Fuel filler flap CL [ZV] motor |
20L |
| M14/7 |
Trunk lid CL [ZV] motor |
22L |
| M14/7s1 |
Trunk lid gearing microswitch 2 |
24L |
| M14/7s2 |
Trunk lid lock pawl microswitch |
23L |
| M14/7s3 |
Trunk lid rotary tumbler microswitch |
23L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
15A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
21A |
| N10/2kM |
Circuit 15 (2)/spare 1 relay (changeover contact) |
16A |
| N69/1 |
Left door control unit |
4A |
| N69/5 |
KEYLESS-GO control unit |
13L |
| N82/1 |
Vehicle power supply control unit |
17L |
| U82 |
Valid for KEYLESS GO |
10E |
| U887 |
Valid for power closing |
6E |
| U889 |
Valid for additional door lock |
5E |
| W54 |
Ground (right rear wheelhouse) |
25E |
| X35/1 |
Left front door and FFS [RBA] connector |
13H |
| X8/34 |
Left door handle connector |
1G |
| Z5z1 |
Connector sleeve (solder connector in harness) |
2E |
| Z6/92 |
Trunk lid ground connector sleeve |
24H |
