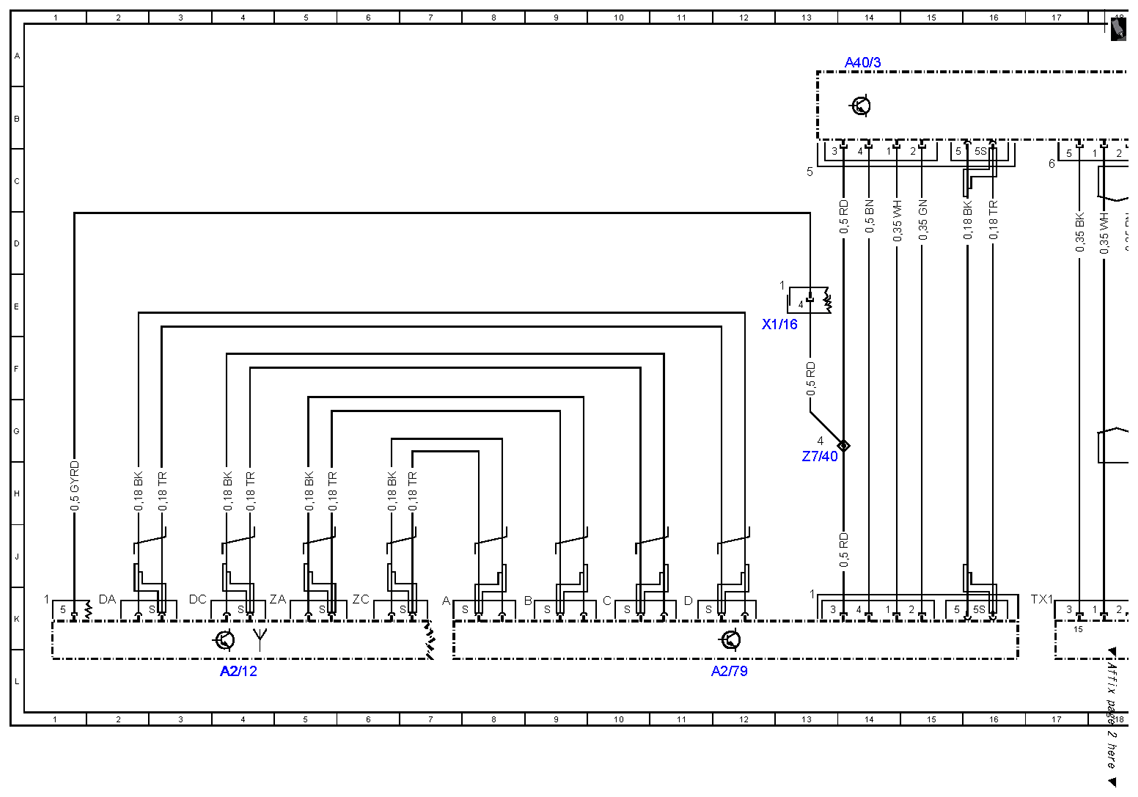

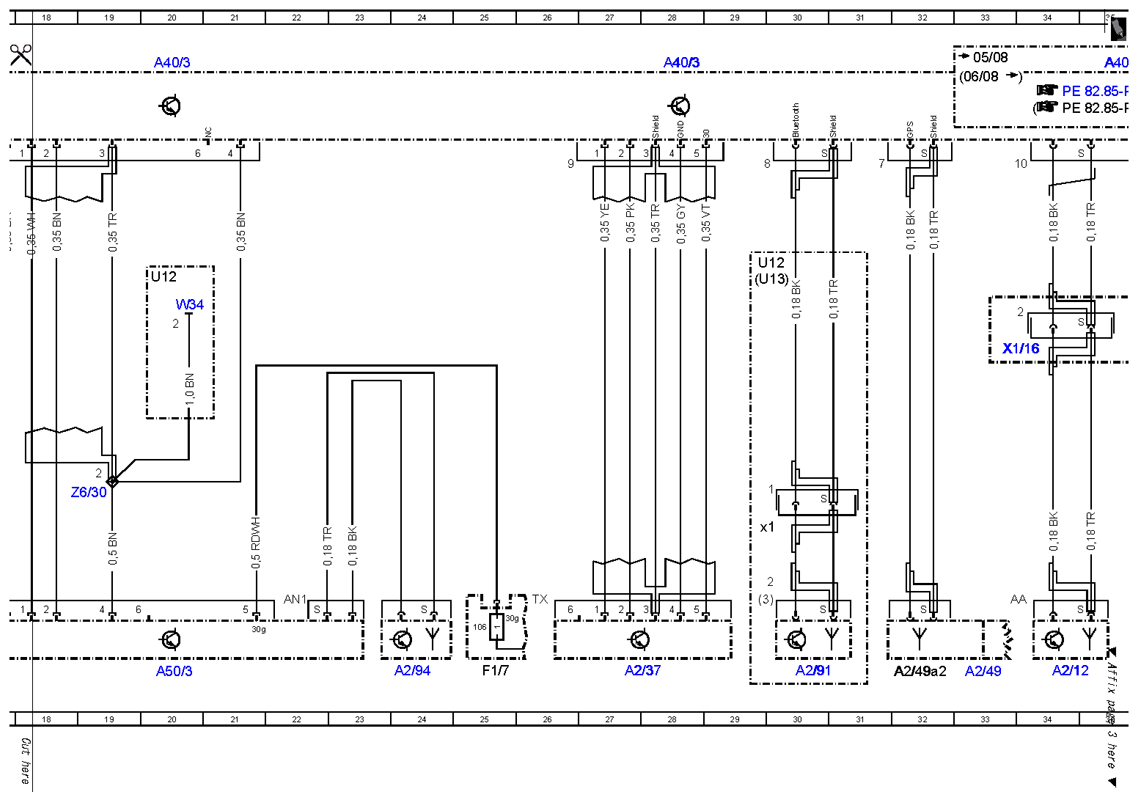

Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97CAC
MODEL 216.3 with CODE (529) HIGH Class Japan Control unit A40/3, sheet 2
| Code: | Designation: | Position: |
|---|---|---|

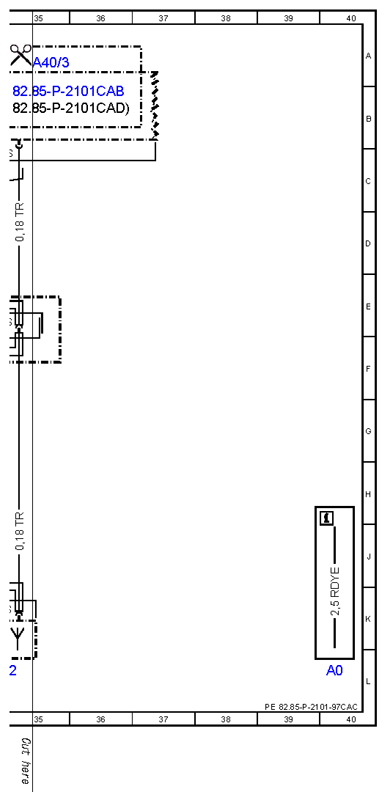

| A0 | Color code key | 40L |
| A2/12 | Rear window antenna amplifier module | 4L |
| A2/12 | Rear window antenna amplifier module | 34L |
| A2/37 | VICS control unit | 27L |
| A2/49 | Telephone and GPS antenna | 33L |
| A2/49a2 | GPS antenna | 32L |
| A2/79 | TV antenna selector | 12L |
| A2/91 | Bluetooth antenna | 30L |
| A2/91x1 | Bluetooth antenna connector | 29J |
| A2/94 | Electronic toll collection (ETC) antenna | 24L |
| A40/3 | COMAND control unit | 14A |
| A40/3 | COMAND control unit | 20A |
| A40/3 | COMAND control unit | 28A |
| A40/3 | COMAND control unit | 35A |
| A50/3 | Electronic toll collection (ETC) control unit | 20L |
| F1/7 | Left instrument panel fuse box | 25L |
| F1/7f106 | Fuse 106 | 25K |
| U12 | Valid for left-hand drive vehicles | 20E |
| U12 | Valid for left-hand drive vehicles | 29D |
| U13 | Valid for right-hand drive vehicles | 29E |
| W34 | Ground (left footwell) | 20E |
| X1/16 | Roof antenna connector | 13E |
| X1/16 | Roof antenna connector | 34F |
| Z6/30 | Circuit 31 connector sleeve | 19H |
| Z7/40 | Tml. 30 connector sleeve | 13G |
