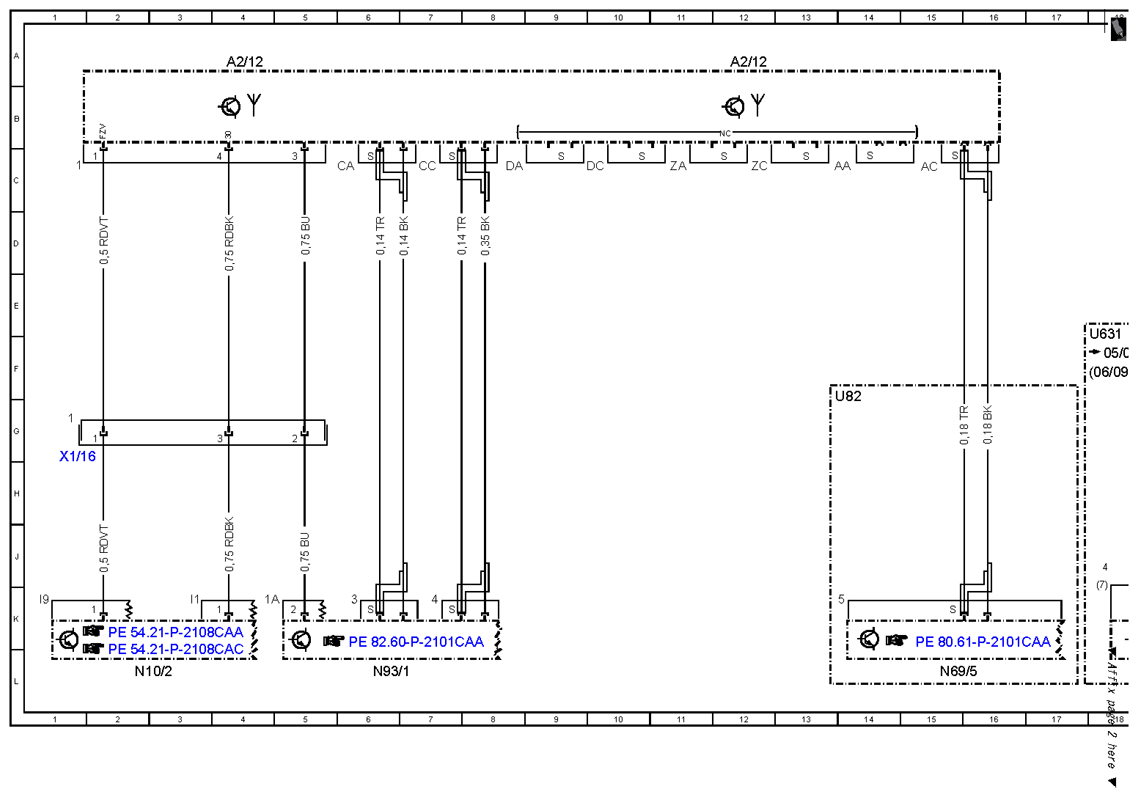

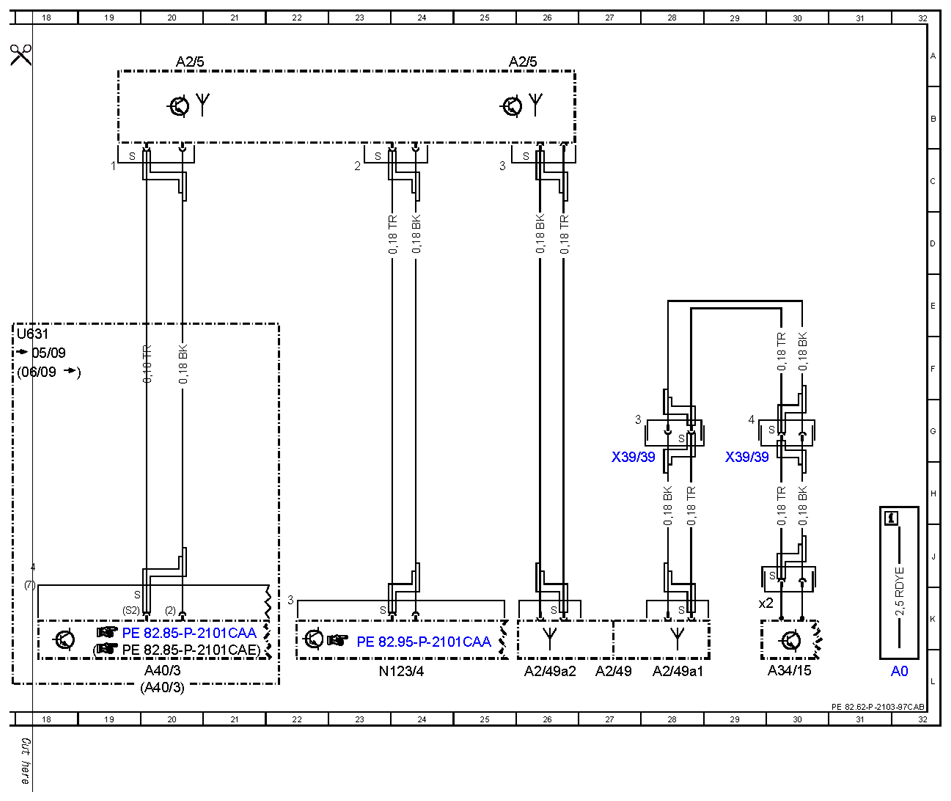

Wiring diagram for antenna module - PE82.62-P-2103-97CAB
MODEL 216.3 with CODE (494) USA version
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2/12 | Rear window antenna amplifier module | 4A |
| A2/12 | Rear window antenna amplifier module | 12A |
| A2/49 | Telephone and GPS antenna | 27L |
| A2/49a1 | Telephone antenna | 28L |
| A2/49a2 | GPS antenna | 26L |
| A2/5 | Antenna splitter | 20A |
| A2/5 | Antenna splitter | 25A |
| A34/15 | UHI portable CTEL holder (Universal Handy Interface) | 30L |
| A34/15x2 | Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | 30K |
| A40/3 | COMAND control unit | 20L |
| N10/2 | Rear SAM control unit with fuse and relay module | 2L |
| N123/4 | Emergency call system control unit | 23L |
| N69/5 | KEYLESS-GO control unit | 15L |
| N93/1 | Audio tuner control unit | 6L |
| U631 | Valid for version with COMAND | 18F |
| U82 | Valid for KEYLESS GO | 13G |
| X1/16 | Roof antenna connector | 1G |
| X39/39 | Handy connector | 27H |
| X39/39 | Handy connector | 29H |
