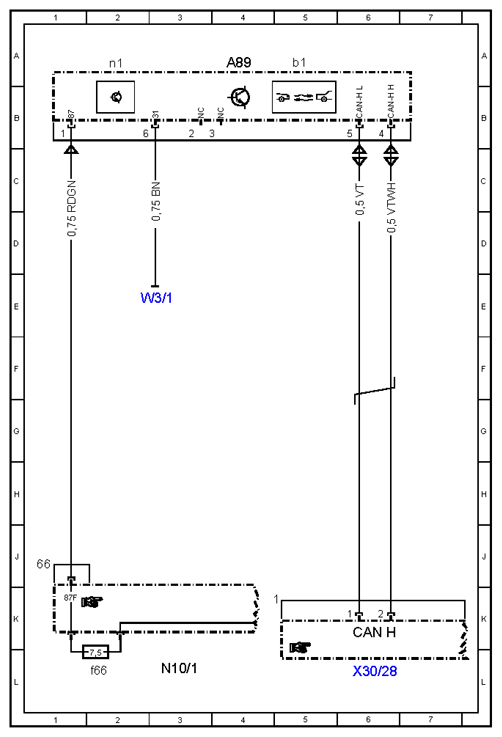

Wiring diagram Distronic (DTR) control module - PE30.30-U-2101-97CAA
| Code: | Designation: | Position: |
|---|---|---|
| A89 | DTR control unit | 4A |
| A89b1 | DTR radar sensor | 5A |
| A89n1 | DTR control unit | 2A |
| CAN H | Vehicle dynamics CAN | 6K |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f66 | Fuse 66 | 2L |
| W3/1 | Ground (right front wheelhouse) | 3E |
| X30/28 | Vehicle dynamics CAN voltage distributor connector | 6L |
