Removing/installing the electronic accelerator actuator with flap connection - AR30.20-P-1262H

ENGINE 275 in MODEL 215, 216, 220, 221, 230

ENGINE 285 in MODEL 240

Illustrated on model 240

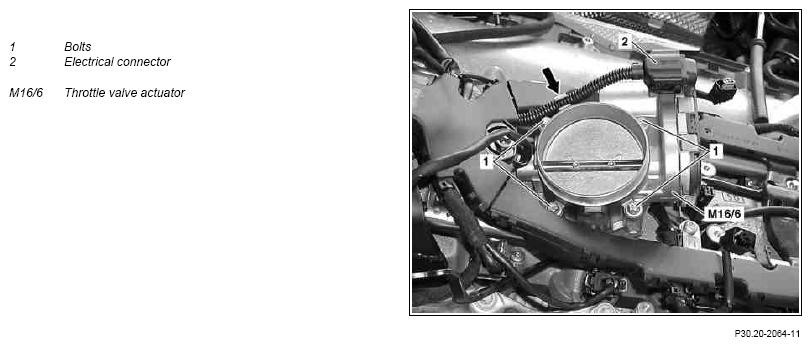

Fig 1: Identifying Electronic Accelerator Actuator Remove/Install Components - Shown On Model 240

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove charge air duct to charge air cooler		AR09.50-P-8680H
2	Detach electrical connector (2) and remove line from retaining clamp (arrow)
3	Remove bolts (1) and throttle valve actuator (M16/6)	Observe installation position of the retaining clamp (arrow); replace seal.
3	Remove bolts (1) and throttle valve actuator (M16/6)		*BA30.20-P-1002-01C
4	Install in the reverse order

ELECTRONIC ACCELERATOR PEDAL ACTUATOR

Number	Designation		Engine 275	Engine 285
BA30.20-P-1002-01C	Bolt, throttle valve actuator to intake manifold	Nm	10	10
