| 1 |
Circuit 15, status |
15D |
| 2 |
Alternator, status |
5E |
| 3 |
Circuit 61, status |
8E |
| 3 |
Circuit 61, status |
13E |
| 4 |
Alternator operating rate, signal |
7E |
| 4 |
Alternator operating rate, signal |
13E |
| 5 |
Battery sensor, signal |
13E |
| 6 |
Consumer shutoff, request |
10E |
| 6 |
Consumer shutoff, request |
19H |
| 6 |
Consumer shutoff, request |
23J |
| 6 |
Consumer shutoff, request |
19E |
| 6 |
Consumer shutoff, request |
27E |
| 6 |
Consumer shutoff, request |
23E |
| 6 |
Consumer shutoff, request |
9H |
| 6 |
Consumer shutoff, request |
9D |
| A40/3 |
COMAND control unit |
9J |
| A8/1 |
Transmitter key |
15B |
| B95 |
Battery sensor |
11B |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
15D |
| CAN B |
Interior CAN |
17F |
| CAN B |
Interior CAN |
25F |
| CAN E |
Chassis CAN |
6F |
| CAN E |
Chassis CAN |
9D |
| CAN F |
Central CAN |
9G |
| Code 401 |
Front comfort seats, incl. seat heating and seat ventilation |
25B |
| Code 432 |
Left and right front dynamic multicontour seats |
17B |
| Code 526 |
COMAND with single DVD drive (without navigation) |
7J |
| Code 527 |
COMAND APS (with navigation) |
7J |
| Code 530 |
COMAND APS USA (with navigation) |
7J |

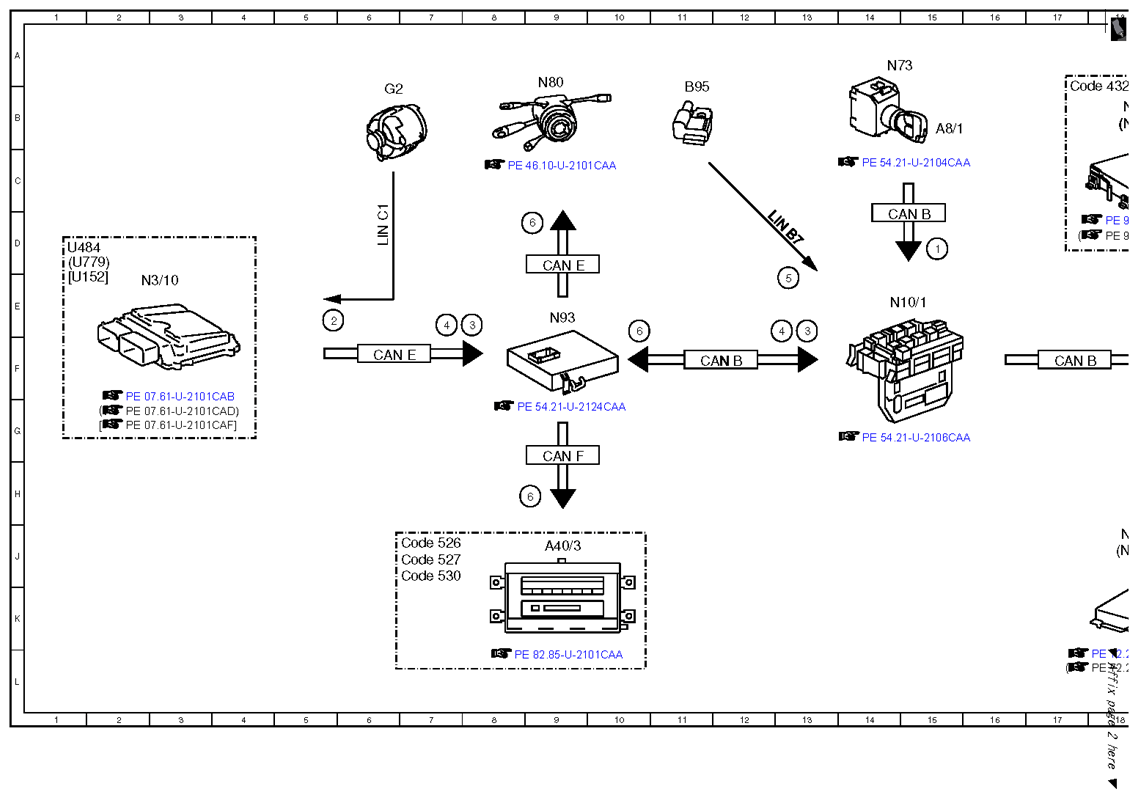

| G2 |
Alternator |
6B |
| LIN B7 |
On-board electrical system LIN |
12D |
| LIN C1 |
Drive train LIN |
6D |
| N10/1 |
Front SAM control unit with fuse and relay module |
14E |

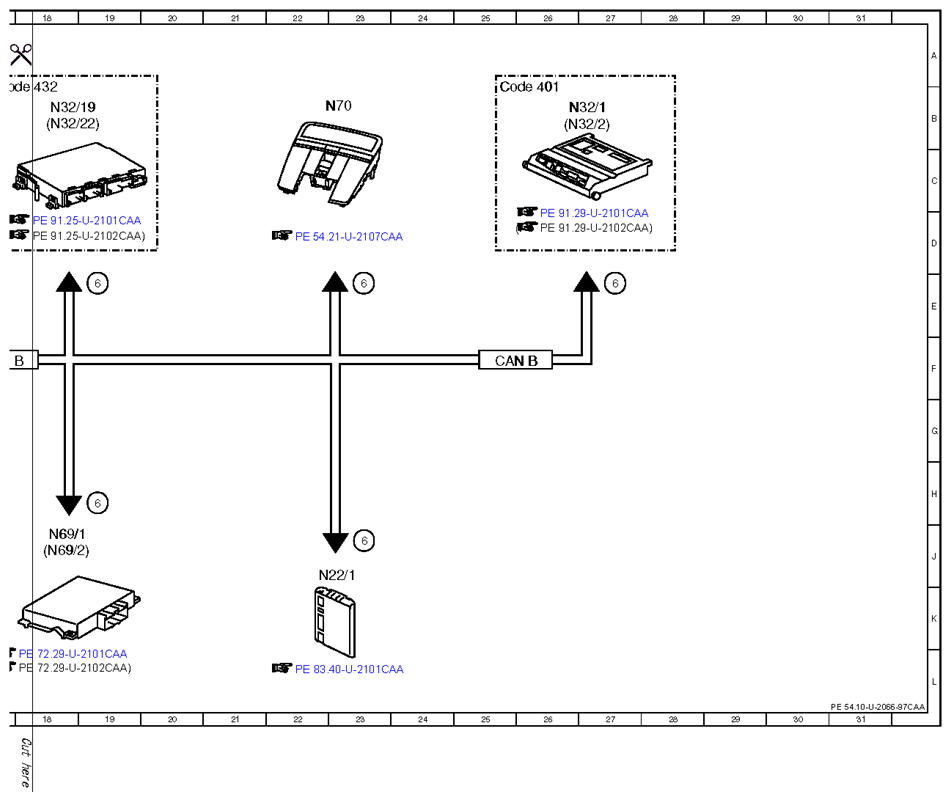

| N22/1 |
AAC [KLA] control unit |
22J |
| N3/10 |
ME-SFI [ME] control unit |
2E |
| N32/1 |
Left front seat control unit |
26B |
| N32/19 |
Left front dynamic seat control unit |
18B |
| N32/2 |
Right front seat control unit |
26B |
| N32/22 |
Right front dynamic seat control unit |
18B |
| N69/1 |
Left door control unit |
18J |
| N69/2 |
Right door control unit |
18J |
| N70 |
Overhead control panel control unit |
22B |
| N73 |
EIS [EZS] control unit |
14A |
| N80 |
Steering column module |
9B |
| N93 |
Central gateway control unit |
9E |
| U152 |
Valid for engine 156 |
1E |
| U484 |
Valid for M273 ME |
1D |
| U779 |
Valid for engine 275 |
1D |
