Retrofit reversing camera - AN54.65-P-0030SC

MODEL 216.3## (except 216.374/377/379) 1# except CODE (494) USA version except CODE (498) Japan version

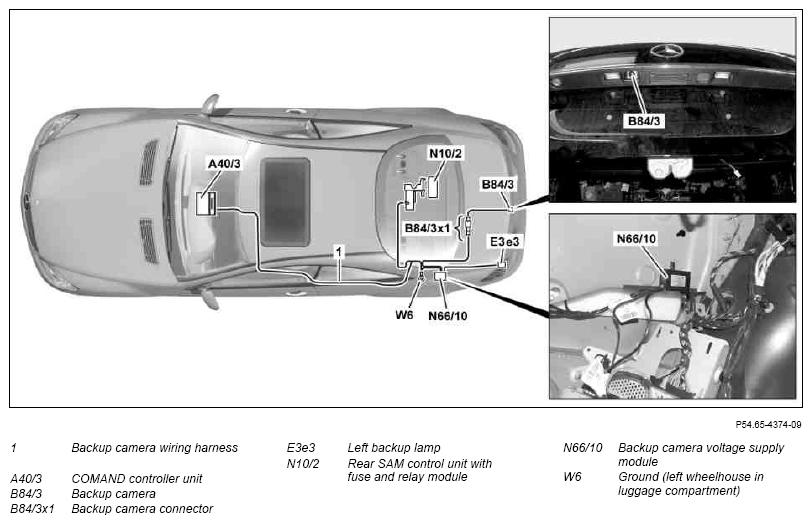

Fig 1: Retrofitted Reversing Camera Components

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove rear seat backrest		AR91.12-P-1620SC
2	Remove left front seat		AR91.10-P-1000SC
3	Remove left side trim in rear passenger compartment		AR68.30-P-4780SC
4	Remove COMAND controller unit (A40/3)		AR82.85-P-1100SC
5	Remove left cover from trunk		AR68.30-P-4600SX
6	Detach rear SAM control unit with fuse and relay module (N10/2) and place to one side with electrical lines still connected		AR54.21-P-1258SX
	Install
7	Retrofit reversing camera power supply module (N66/10)		AN54.65-P-0030-06SC
8	Retrofit backup camera (B84/3)		AN54.65-P-0030-02SC
9	Retrofit reversing camera wiring harness (1)		AN54.65-P-0030-03SC
		Wiring harness repair kit	Fig 2
10	Install remaining parts
11	Connect Star Diagnosis
12	Carry out variant coding with the Diagnosis Assistance System by means of Software Calibration Number (SCN)
13	Enter special equipment on the vehicle data card and the online vehicle data card	Code (218) Enter reversing camera.
14	Disconnect Star Diagnosis
15	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Reversing camera retrofitted as per AN54.65-P-0030SC " note under field organization text for design group 54.
	Check
16	Run function test on reversing camera (B84/3)
