Disconnect electrical connectors at rear axle - AR35.10-P-0010-02SX

1. Detach fender liners in left and right rear fender and fold to one side.
2. Press catch on hub (1) in left rear wheelhouse towards the arrow and
   • remove connector (2) of left rear rpm sensor
   • and connector (3) of left rear axle damping valve unit (vehicles with AIRmatic only)

     from hub (1).

3. Unclip electrical feed lines from wiring (4).

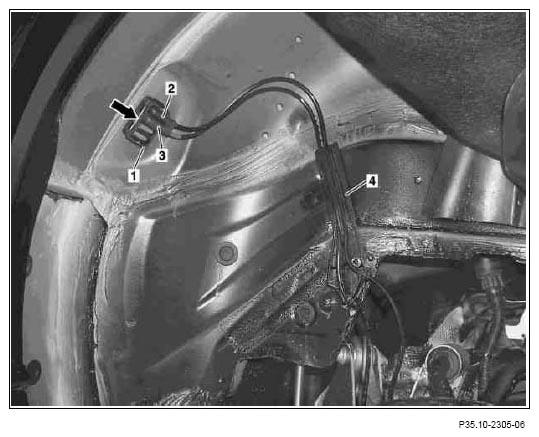

   Fig 1: Identifying Electrical Feed Lines And Wiring

   Courtesy of MERCEDES-BENZ USA
4. Press catch on hub (5) in right rear wheelhouse towards the arrow and
   • remove connector (6) of right rear rpm sensor
   • and connector (7) of right rear axle damping valve unit (vehicles with AIRmatic only)
   • and connector (8) of right rear brake pad contact sensor

     from hub (5).

5. Unclip electrical feed lines from wiring (9).

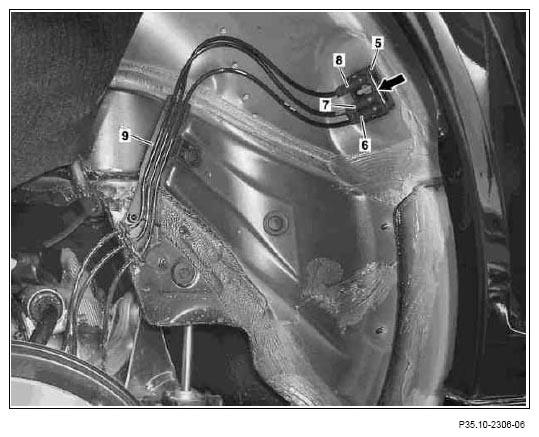

Fig 2: Identifying Catch On Hub In Right Wheel House

Courtesy of MERCEDES-BENZ USA
