Drain, evacuate and recharge air conditioning, check for proper operation and check for leaks - AR83.30-P-1760SX

MODEL 216.3, 221.0/1

Shown on model 221

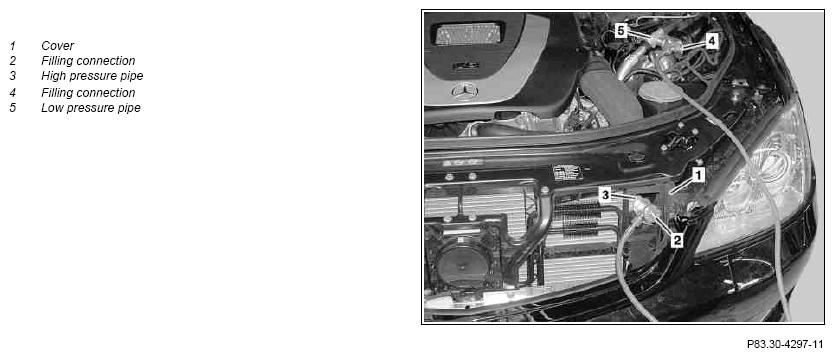

Fig 1: Identifying Cover, Filling Connection, High And Low Pressure Pipes
G07542947Courtesy of MERCEDES-BENZ USA
  Draining
DANGER Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant. Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. AS83.00-Z-0001-01A
NOTES Procedure for a damaged or leaky air conditioning system   AH83.30-N-0004-01A
NOTES Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
IMPORTANT Notes on handling R134a refrigerant   AH83.30-N-0003-01A
    IMPORTANT When operating the charging equipment, observe the operator's manual from the manufacturer.
1.1 Open the cover (1) Model 221
1.2 Remove radiator grille and cover over high-pressure line (3) Model 216 up to model year 2011 AR88.20-P-2000SX
    Model 216 as of model year 2011 AR88.40-P-4001SC
    SPECIAL TOOL Fig 2
2 Connect air conditioning extractor, recycling and filling unit for refrigerant R134a Air conditioner service unit

3 Suction off refrigerant IMPORTANT Note down suctioned off compressor oil quantity.
  Evacuate
4 Replace fluid reservoir Only if refrigerant circuit has been opened. AR83.30-P-6520SX
5 Clean refrigerant and evacuate air conditioning system Air conditioner service unit

  Fill
6 Replace the quantity of compressor oil noted when evacuating the air conditioning system with new compressor oil and route back to the refrigerant circuit NOTES If the wrong quantity of compressor oil is refilled then the refrigerant compressor may be damaged.
IMPORTANT Additional oil filling capacities after replacement of refrigerant circuit components:
FLUID SPECIFICATION Refrigerant compressor filling quantity		 *BF83.55-P-1001-01H
    FLUID SPECIFICATION Additional quantity of oil to be added when system suddenly empties (e.g. pipe torn off) *BF83.55-P-1002-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing condenser *BF83.55-P-1003-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing evaporator *BF83.55-P-1004-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing fluid reservoir *BF83.55-P-1005-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing low-pressure line *BF83.55-P-1006-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing high-pressure line *BF83.55-P-1007-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing refrigerant compressor *BF83.55-P-1008-01H
    FLUID SPECIFICATION Additional quantity of oil when leakage is present *BF83.55-P-1009-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing rear air conditioning evaporator *BF83.55-P-1010-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing rear AC lines *BF83.55-P-1011-01H
    FLUID SPECIFICATION Additional oil filling capacity after replacing evaporator (rear compartment) *BF83.55-P-1012-01H
    FLUID SPECIFICATION Additional filling capacity for refrigerant compressor with rear air conditioning
Air conditioning service unit
 		 *BF83.55-P-1013-01H
7 Charge air conditioning system FLUID SPECIFICATION *BF83.00-P-1001-01H
8 Perform pressure test on AC system
9 Disconnect air conditioning evacuation, recycling and charging unit for refrigerant R134a
INSPECT Check
10 Check air conditioning system for leakage   AR83.30-P-1761UV
11.1 Close cover (1) Model 221
11.2 Install radiator grille and cover over high-pressure line (3) Model 216
AIR CONDITIONING SYSTEM/AUTOMATIC AIR CONDITIONING

Number Designation     Model 216
BF83.00-P-1001-01H Filling capacity air conditioning system/automatic air conditioning Refrigerant R134 a g 1070
    Specifications for Operating Fluids Sheet BB00.40-P-0361-00 A
REFRIGERANT COMPRESSOR

Number Designation     Refrigerant compressor in model 216 Electric refrigerant compressor in model 221 Mild hybrid
BF83.55-P-1001-01H Refrigerant compressor filling quantity Compressor oil cm3 110 120
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1002-01H Additional oil filling quantity following sudden draining of system (e.g. line ruptured) Compressor oil cm3 40 40
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1003-01H Additional oil filling quantity after replacing condenser Compressor oil cm3 20 20
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1004-01H Additional oil filling quantity after replacing evaporator Compressor oil cm3 40 40
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1005-01H Additional oil filling quantity after replacing fluid reservoir Compressor oil cm3 10 10
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1006-01H Additional oil filling quantity after replacing low-pressure line Compressor oil cm3 10 10
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1007-01H Additional oil filling quantity after replacing high-pressure line Compressor oil cm3 10 10
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1008-01H Additional oil filling quantity after replacing refrigerant compressor Compressor oil cm3 20 20
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1009-01H Additional oil filling capacity in case of detectable leakage Compressor oil cm3 20 20
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1010-01H Additional oil filling quantity after replacing rear air conditioning evaporator Compressor oil cm3 30 30
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1011-01H Additional oil filling quantity after replacing rear AC lines Compressor oil cm3 20 20
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1012-01H Additional oil filling quantity after replacing evaporator (rear compartment) Compressor oil cm3 10 10
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1013-01H Additional filling capacity for refrigerant compressor with rear air conditioning Compressor oil cm3 30 30
    Specifications for Operating Fluids Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
BF83.55-P-1014-01H Additional filling capacity for high-voltage battery evaporator Compressor oil cm3 - 10
    Specifications for Operating Fluids Sheet - BB00.40-P-0362-00A
Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
G07542948Courtesy of MERCEDES-BENZ USA
