Check evaporator for leaks - AR83.30-P-5550Q

MODEL 166, 169, 171 with CODE (580) Automatic air conditioning

MODEL 169, 171 (except 169.090) with CODE (581) Comfort automatic air conditioning

MODEL 164, 197, 199, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 240, 245, 251 (except 245.286)

Shown on model 203

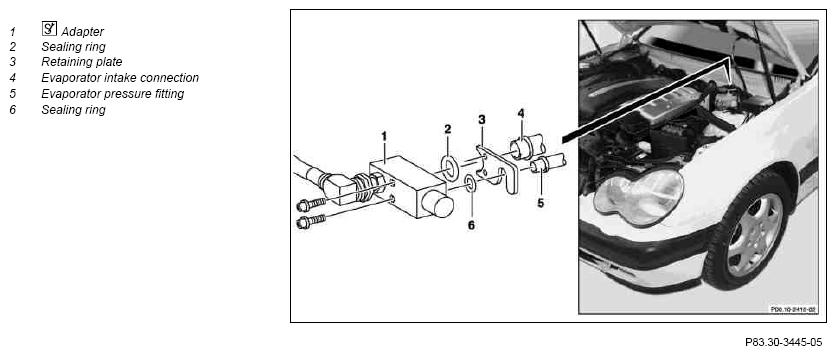

Fig 1: Identifying Evaporator Location

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities  .	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Notes on handling R134a refrigerant	All models with R134a refrigerant	AH83.30-N-0003-01A
1	Remove expansion valve	Model 216.3, 221.0/1	AR83.30-P-5520SX
2.1	Install adapter (1) and adapter hose	Model 164, 166, 171, 197, 199, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 240 Front air conditioning system 251 Install adapter (1) in place of expansion valve with new sealing rings (2, 6). Moisten thread and sealing rings (2, 6) with compressor oil.
	Compressor oils (specification 362.0)		BB00.40-P-0362-00A
		Model 216, 221.0/1	*BA83.30-P-1003-01K
		Adapter	Fig 4
		Adapter hose Air conditioner pressure and leak tester (mobile)	Fig 3
2.2	Install test adapter	Model 169.0/3, 245.2, 240 rear A/C Install test adapter in place of expansion valve with new sealing rings (2, 6). Moisten thread and sealing rings (2, 6) with compressor oil.
	Compressor oils (specification 362.0)		BB00.40-P-0362-00A
		Test adapter Air conditioner pressure and leak tester (mobile)	Fig 2
3	Connect test equipment to adapter (1) or test adapter.
4	Check evaporator for leaks	Fill system with a system pressure of 15 bar. Pressure must be maintained for at least 4 hours. Temperature changes during the pressure test may cause pressure surges, e.g. due to weather changes or overnight cooling of the engine compartment. Make sure the ambient conditions remain constant. With negative findings: Replace evaporator, see: ↓ Remove/install evaporator
		Model 216.3, 221.0/1 Model 218	AR83.30-P-5540SX
5	Disconnect test equipment from adapter (1) or test adapter
6.1	Remove adapter (1) and adapter hose	Model 164, 166, 171, 197, 199, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 240 Front air conditioning system 251
		Adapter	Fig 4
		Adapter hose	Fig 3
6.2	Remove test adapter	Model 169.0/3, 245.2, 240 rear A/C Test adapter	Fig 2
7	Install expansion valve	Install expansion valve with new sealing rings (2, 6). Moisten thread and sealing rings (2, 6) with compressor oil.
	Compressor oils (specification 362.0)		BB00.40-P-0362-00A
		Model 216.3, 221.0/1	AR83.30-P-5520SX

Fig 2: Identifying Test Adapter (140 589 51 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter Hose (140 589 51 63 01)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter (463 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
