Meaning of symbols (Logos) for picture/picture documents - OV00.01-P-1901-07A

MODIFICATION NOTES

23.2.10

This document has been expanded by additional symbols

Symbols (Logos) for operation notes

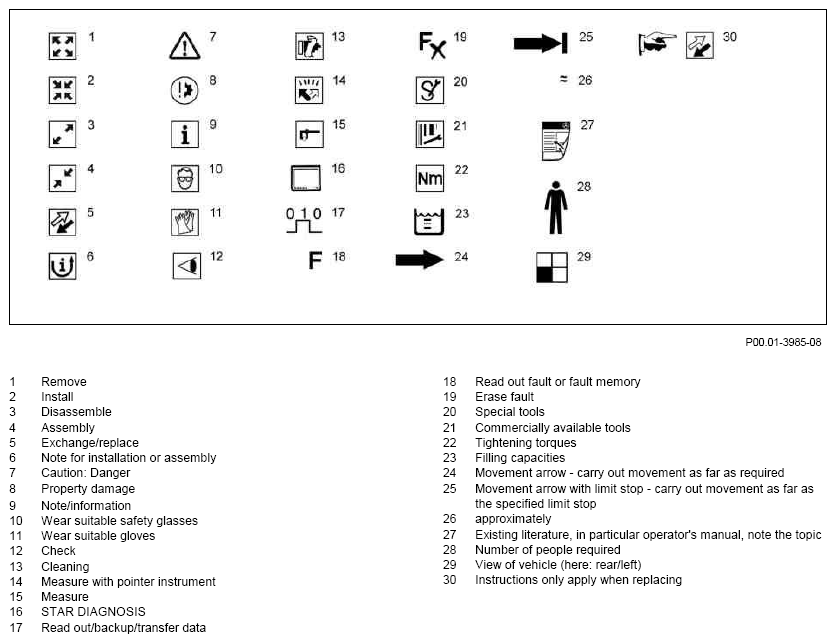

Fig 1: Identifying Symbols (Logos) For Operation Notes

Courtesy of MERCEDES-BENZ USA

Validities

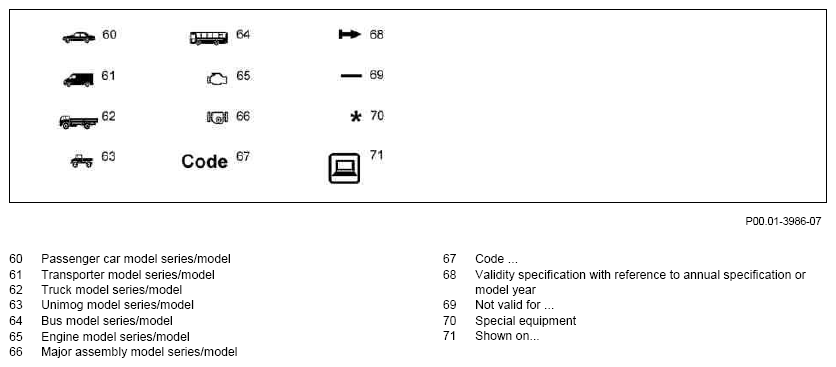

Fig 2: Identifying Symbols With Validities

Courtesy of MERCEDES-BENZ USA

Examples

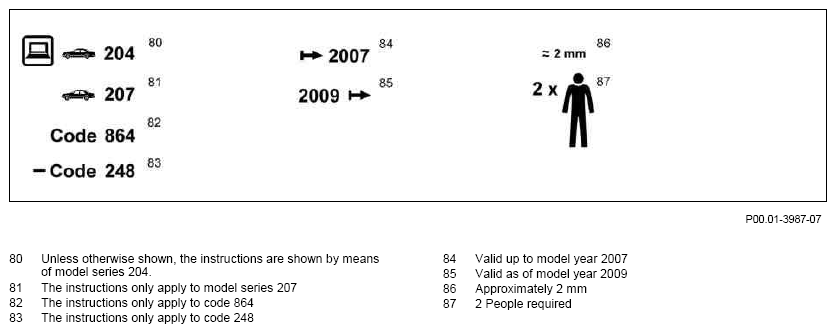

Fig 3: Identifying Examples Of Symbols

Courtesy of MERCEDES-BENZ USA
