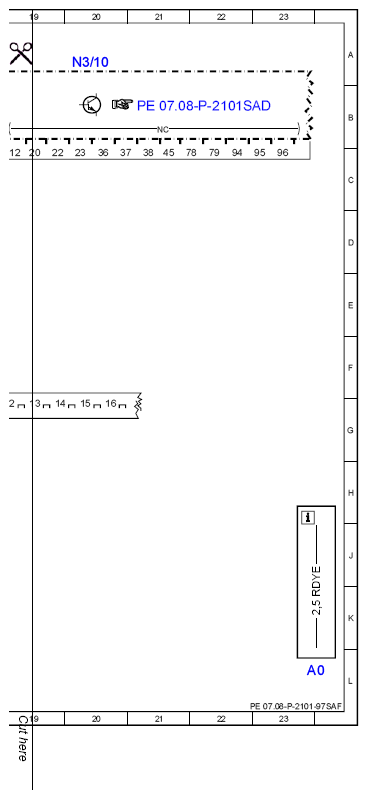

| A0 |
Color code key |
23L |

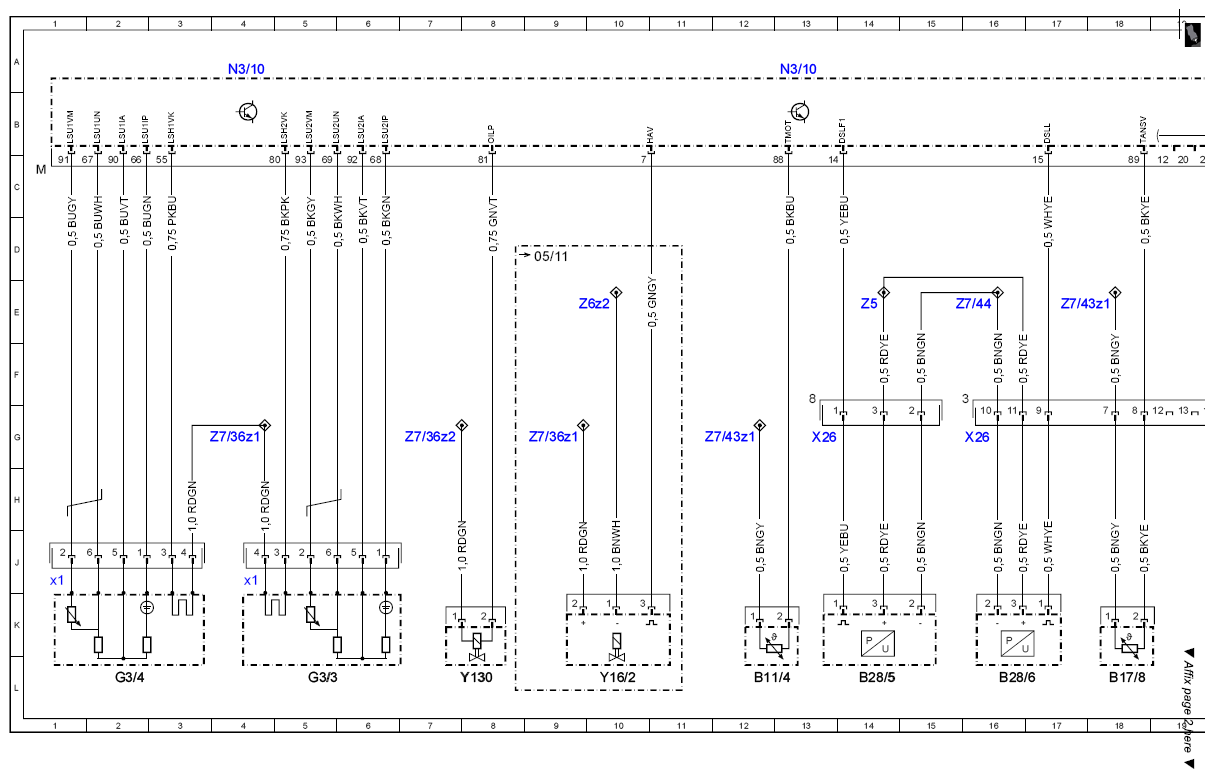

| B11/4 |
Coolant temperature sensor |
12L |
| B17/8 |
Charge air temperature sensor |
18L |
| B28/5 |
Pressure sensor downstream of air filter |
14L |
| B28/6 |
Pressure sensor upstream of throttle valve actuator |
16L |
| G3/3 |
Left 02 sensor upstream of TWC [KAT] |
5L |
| G3/3x1 |
Left 02 sensor upstream of TWC [KAT] connector |
4J |
| G3/4 |
Right 02 sensor upstream of TWC [KAT] |
2L |
| G3/4x1 |
Right 02 sensor upstream of TWC [KAT] connector |
1J |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
13A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| X26 |
Interior and engine wiring harness connector |
13G |
| X26 |
Interior and engine wiring harness connector |
16G |
| Y130 |
Engine oil pump valve |
8L |
| Y16/2 |
Heating system shutoff valve |
10L |
| Z5 |
Connector sleeve (solder connector in harness) |
14E |
| Z6z2 |
Ground connector sleeve |
10E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
4G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
9G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
7G |
| Z7/43z1 |
Sensor ground connector sleeve |
12G |
| Z7/43z1 |
Sensor ground connector sleeve |
17E |
| Z7/44 |
Sensor ground connector sleeve |
16E |
