| A0 |
Color code key |
80L |

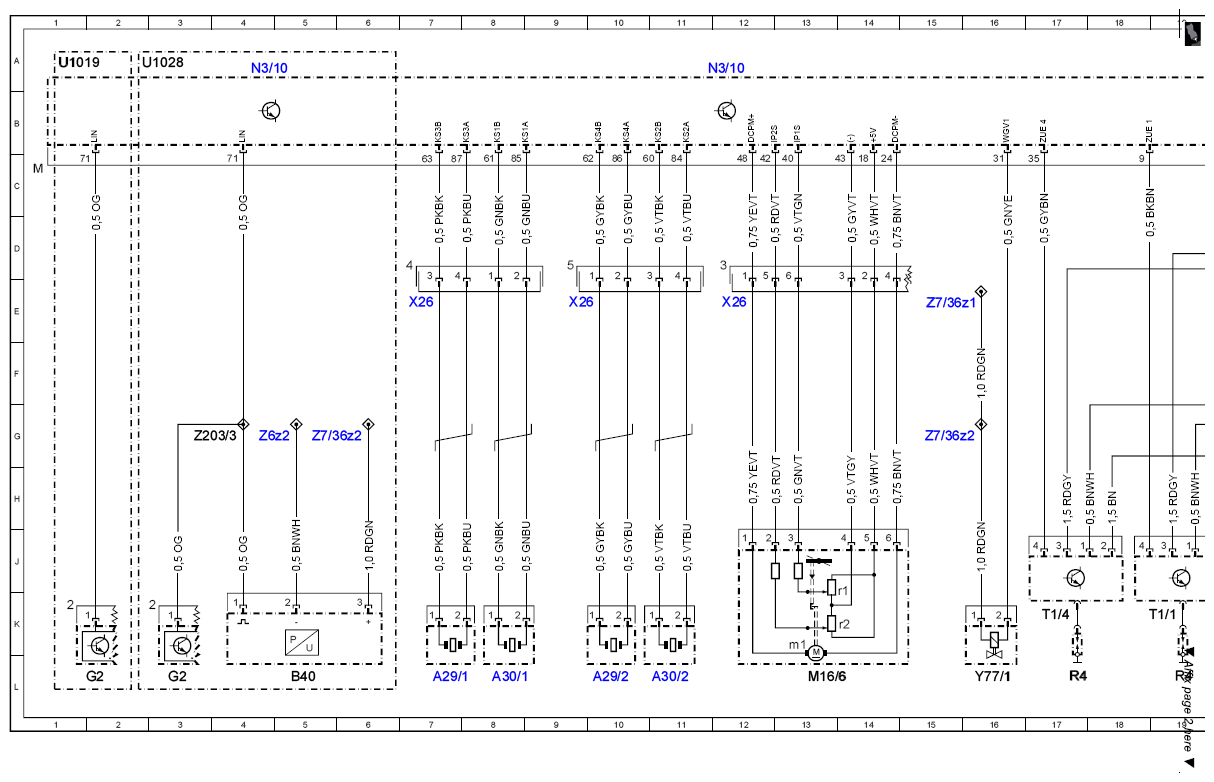

| A29/1 |
Front knock sensor (left side of engine) |
7L |
| A29/2 |
Rear knock sensor (left side of engine) |
10L |
| A30/1 |
Front knock sensor (right side of engine) |
8L |
| A30/2 |
Rear knock sensor (right side of engine) |
11L |
| B28/4 |
Pressure sensor downstream of air filter, left cylinder bank |
62L |
| B28/7 |
Pressure sensor downstream of throttle valve actuator |
64L |
| B4/25 |
Fuel tank pressure and temperature sensor |
66L |
| B40 |
Oil sensor (oil level, temperature and quality) |
5L |
| B6/4 |
Left intake camshaft Hall sensor |
57L |
| B6/5 |
Right intake camshaft Hall sensor |
50L |
| B6/6 |
Left exhaust camshaft Hall sensor |
59L |
| B6/7 |
Right exhaust camshaft Hall sensor |
52L |
| B70 |
Crankshaft Hall sensor |
68L |
| G2 |
Alternator |
2L |
| G2 |
Alternator |
3L |

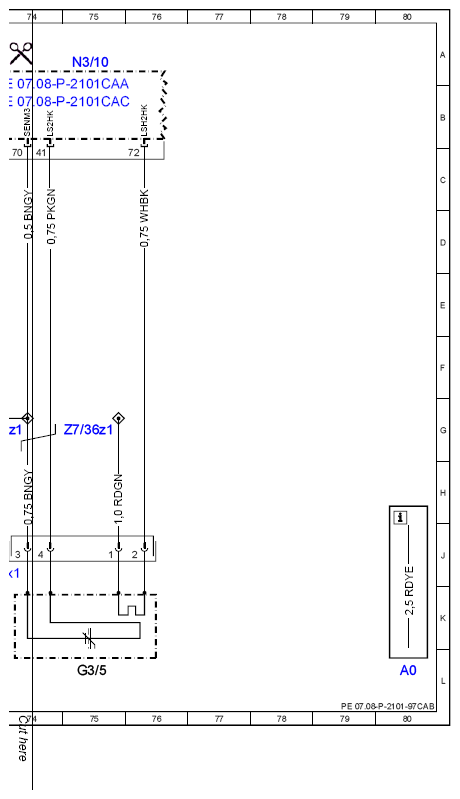

| G3/5 |
Left 02 sensor downstream of TWC [KAT] |
75L |
| G3/5x1 |
Left 02 sensor downstream of TWC [KAT] connector |
74J |
| G3/6 |
Right 02 sensor downstream of TWC [KAT] |
72L |
| G3/6x1 |
Right 02 sensor downstream of TWC [KAT] connector |
71J |
| M16/6 |
Throttle valve actuator |
13L |
| M16/6m1 |
Actuator motor |
13K |
| M16/6M |
Actual value potentiometer 1 |
14K |
| M16/6r2 |
Actual value potentiometer 2 |
14K |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
36A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
53A |
| N3/10 |
ME-SFI [ME] control unit |
61A |
| N3/10 |
ME-SFI [ME] control unit |
69A |
| N3/10 |
ME-SFI [ME] control unit |
75A |
| R4 |
Spark plugs |
17L |
| R4 |
Spark plugs |
19L |
| R4 |
Spark plugs |
21L |
| R4 |
Spark plugs |
23L |
| R4 |
Spark plugs |
31L |
| R4 |
Spark plugs |
33L |
| R4 |
Spark plugs |
36L |
| R4 |
Spark plugs |
38L |
| R48 |
Two-disk thermostat heating element |
29L |
| S43 |
Oil level check switch |
69L |

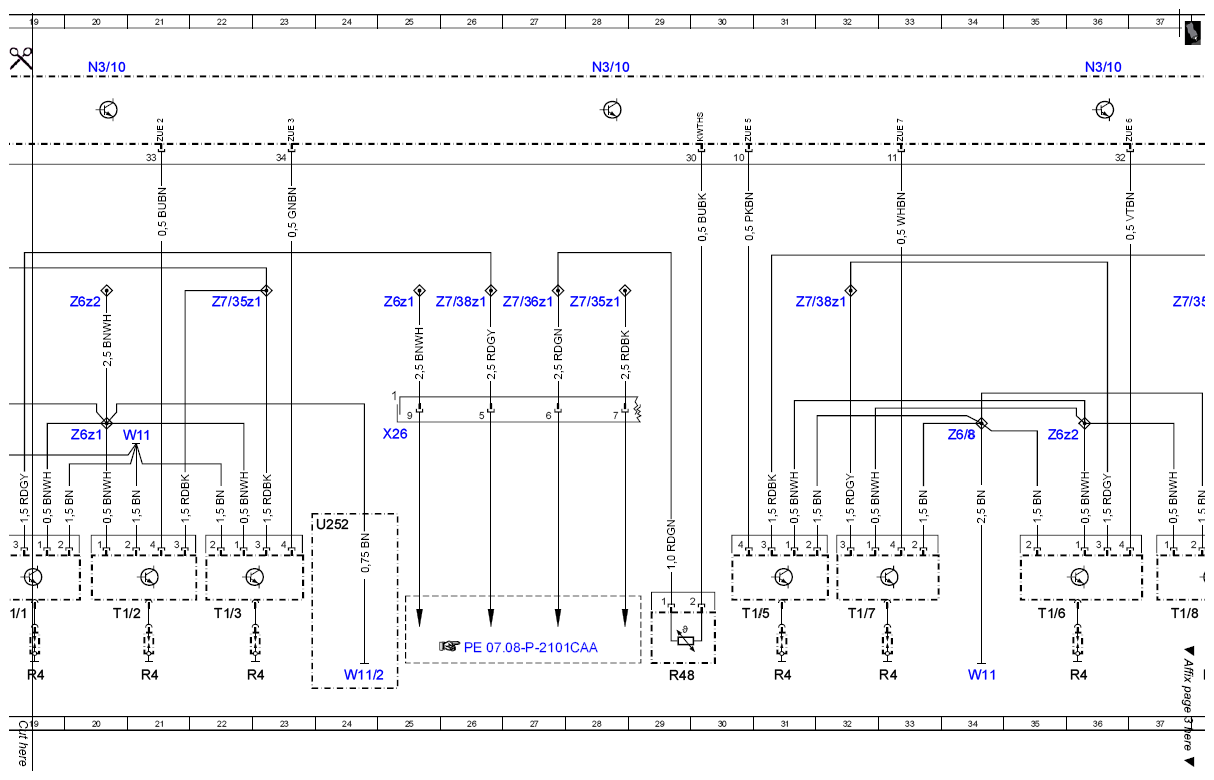

| T1/1 |
Cylinder 1 ignition coil |
19K |
| T1/2 |
Cylinder 2 ignition coil |
20K |
| T1/3 |
Cylinder 3 ignition coil |
22K |
| T1/4 |
Cylinder 4 ignition coil |
17K |
| T1/5 |
Cylinder 5 ignition coil |
30K |
| T1/6 |
Cylinder 6 ignition coil |
35K |
| T1/7 |
Cylinder 7 ignition coil |
32K |
| T1/8 |
Cylinder 8 ignition coil |
37K |
| U1019 |
Valid for engine 278 |
1A |
| U1019 |
Valid for engine 278 |
69E |
| U1028 |
Valid for engine 157 |
2A |
| U252 |
Valid for ECO start/stop function |
24J |
| W11 |
Ground (engine - electrical line connected) |
34L |
| W11 |
Ground (engine - electrical line connected) |
21G |
| W11/2 |
Ground (engine, right) |
24L |
| X26 |
Interior and engine wiring harness connector |
25G |
| X26 |
Interior and engine wiring harness connector |
7E |
| X26 |
Interior and engine wiring harness connector |
9E |
| X26 |
Interior and engine wiring harness connector |
12E |

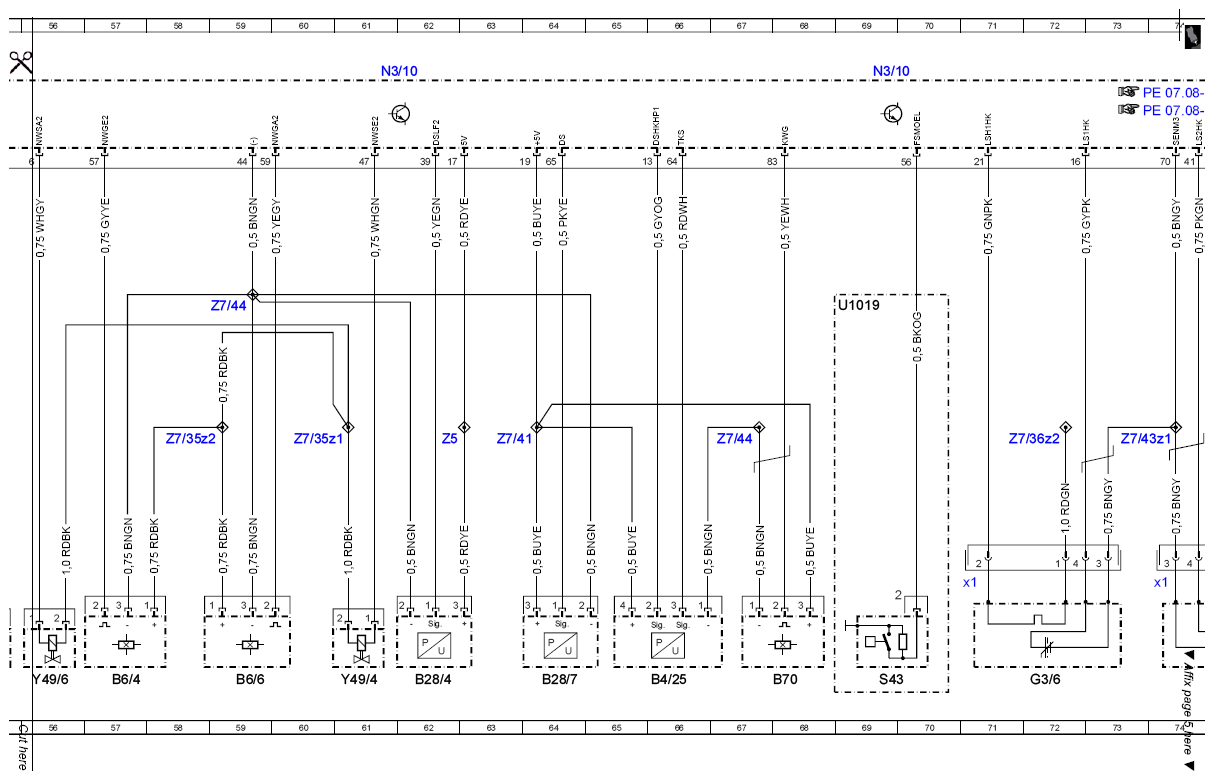

| Y49/4 |
Left intake camshaft solenoid |
61L |
| Y49/5 |
Right intake camshaft solenoid |
53L |
| Y49/6 |
Left exhaust camshaft solenoid |
56L |
| Y49/7 |
Right exhaust camshaft solenoid |
55L |

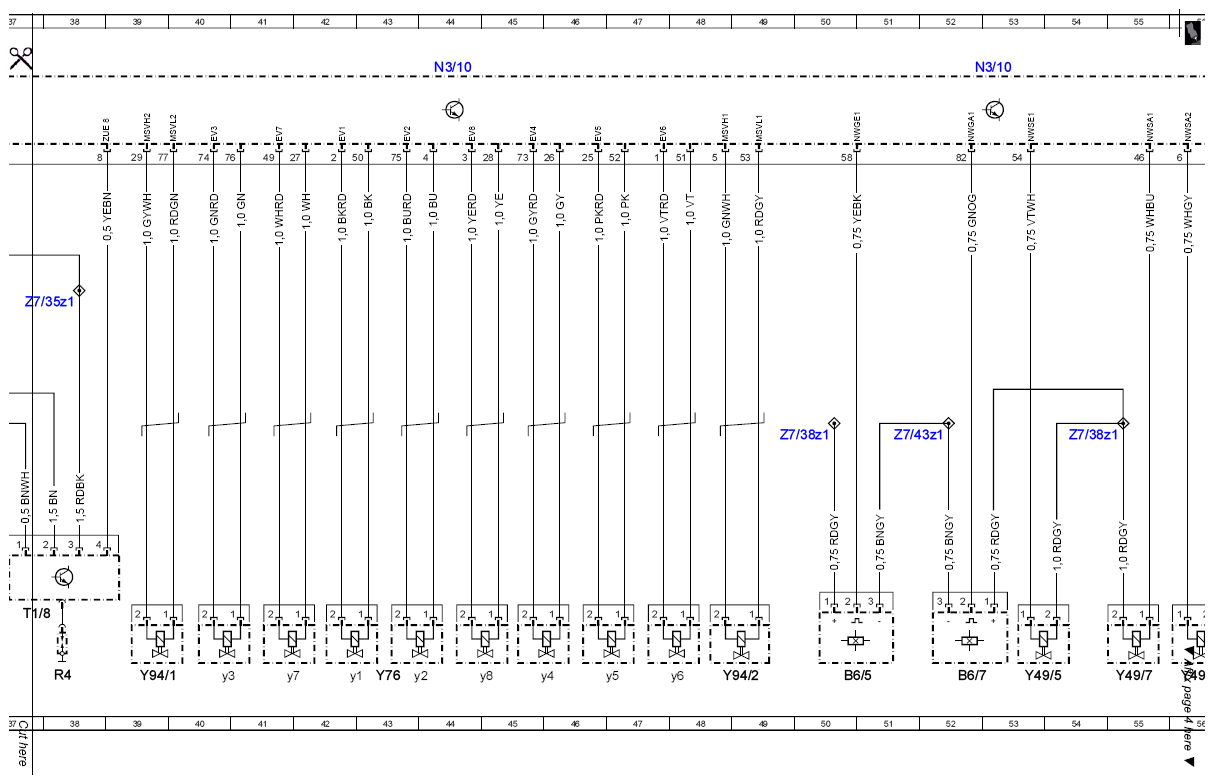

| Y76 |
Fuel injectors |
43L |
| Y76y1 |
Cylinder 1 fuel injector |
42L |
| Y76y2 |
Cylinder 2 fuel injector |
43L |
| Y76y3 |
Cylinder 3 fuel injector |
40L |
| Y76y4 |
Cylinder 4 fuel injector |
45L |
| Y76y5 |
Cylinder 5 fuel injector |
47L |
| Y76y6 |
Fuel injector cylinder 6 |
48L |
| Y76y7 |
Cylinder 7 fuel injector |
41L |
| Y76y8 |
Cylinder 8 fuel injector |
45L |
| Y77/1 |
Boost pressure positioner |
16L |
| Y94/1 |
Left quantity control valve |
39L |
| Y94/2 |
Right quantity control valve |
49L |
| Z203/3 |
Alternator LIN signal connector sleeve |
4G |
| Z5 |
Connector sleeve (solder connector in harness) |
62G |
| Z6/8 |
Sensor ground connector sleeve |
34G |
| Z6z1 |
Ground connector sleeve |
20G |
| Z6z1 |
Ground connector sleeve |
25E |
| Z6z2 |
Ground connector sleeve |
5G |
| Z6z2 |
Ground connector sleeve |
35G |
| Z6z2 |
Ground connector sleeve |
20E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
28E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
22E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
38E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
60G |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
58G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
15E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
27E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
75G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
15G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
6G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
72G |
| Z7/38z1 |
Circuit 87 M1 i connector sleeve |
26E |
| Z7/38z1 |
Circuit 87 M1 i connector sleeve |
32E |
| Z7/38z1 |
Circuit 87 M1 i connector sleeve |
50G |
| Z7/38z1 |
Circuit 87 M1 i connector sleeve |
54G |
| Z7/41 |
Sensor supply connector sleeve |
63G |
| Z7/43z1 |
Sensor ground connector sleeve |
51G |
| Z7/43z1 |
Sensor ground connector sleeve |
73G |
| Z7/44 |
Sensor ground connector sleeve |
67G |
| Z7/44 |
Sensor ground connector sleeve |
59E |
