| A0 |
Explanation of color codes |
40L |
| B37 |
Accelerator pedal sensor |
14K |
| B4/3 |
Fuel tank pressure sensor |
11K |
| G3/5 |
Left 02 sensor downstream TWC [KAT] |
8K |
| G3/6 |
Right 02 sensor downstream TWC [KAT] |
9K |

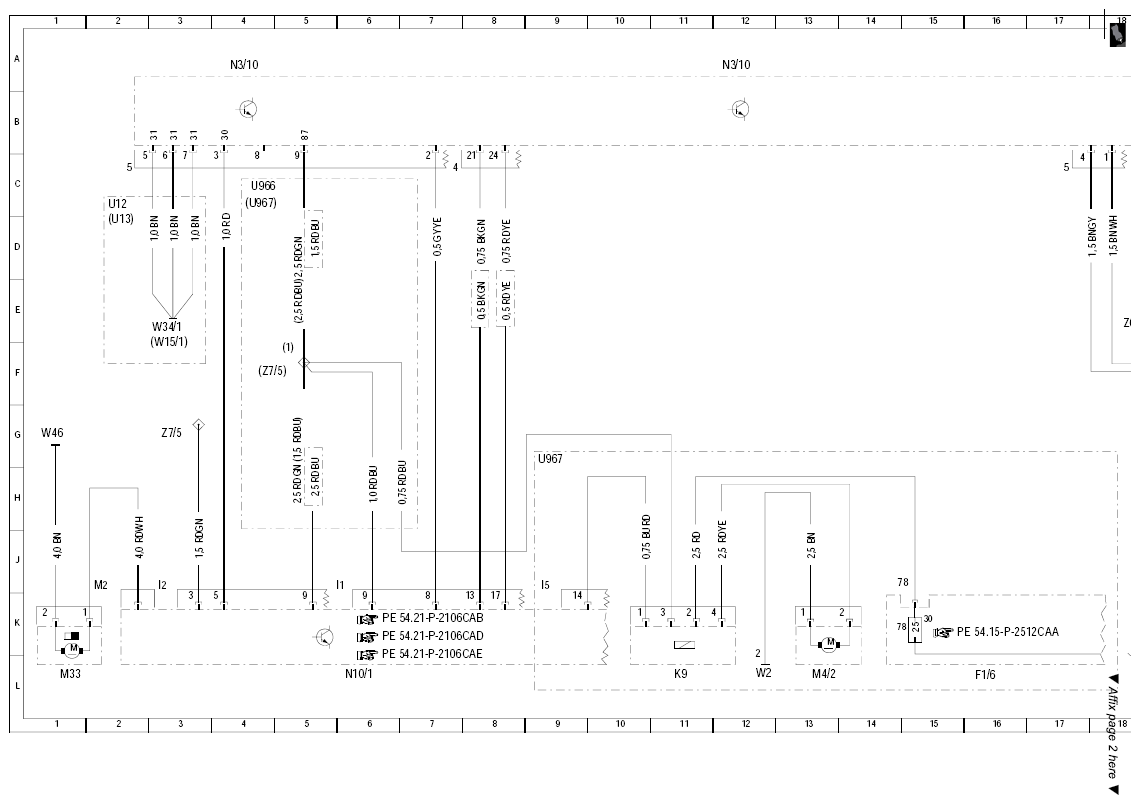

| M33 |
AIR pump |
7L |
| M4/7 |
Electric suction fan engine and AC with integrated control |
26K |
| M44 |
Charge air cooler circulation pump |
23L |
| N10/1 |
Front SAM control module with fuse and relay module |
3L |
| N10/2 |
Rear SAM control module with fuse and relay module |
21L |
| N118 |
Fuel pump control module |
35L |
| N2/7 |
Restraint systems control module |
17L |
| N3/10 |
ME-SFI [ME] control module |
4A |
| N3/10 |
ME-SFI [ME] control module |
12A |
| N3/10 |
ME-SFI [ME] control module |
20A |
| N3/10 |
ME-SFI [ME] control module |
28A |
| N3/10 |
ME-SFI [ME] control module |
35A |
| U1 |
Valid for {{USA}} |
10C |
| U12 |
Valid for left-hand steering |
1C |
| U13 |
Valid for right-hand steering |
1D |
| W15/1 |
Ground (right footwell) |
1F |
| W15/1 |
Ground (right footwell) |
24H |
| W34/1 |
Ground (electronics - left footwell) |
1E |
| W46 |
Ground (AIR pump) |
7H |

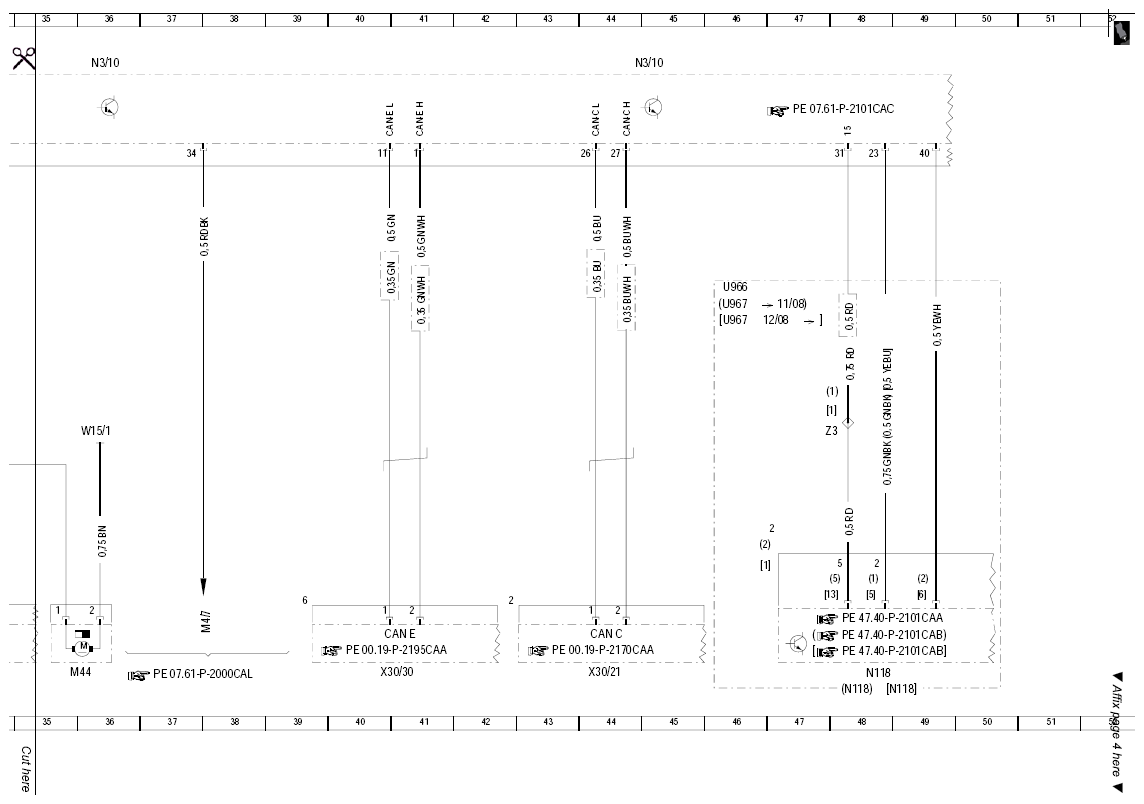

| X30/21 |
Drive train CAN voltage distributor connector |
32L |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
28L |

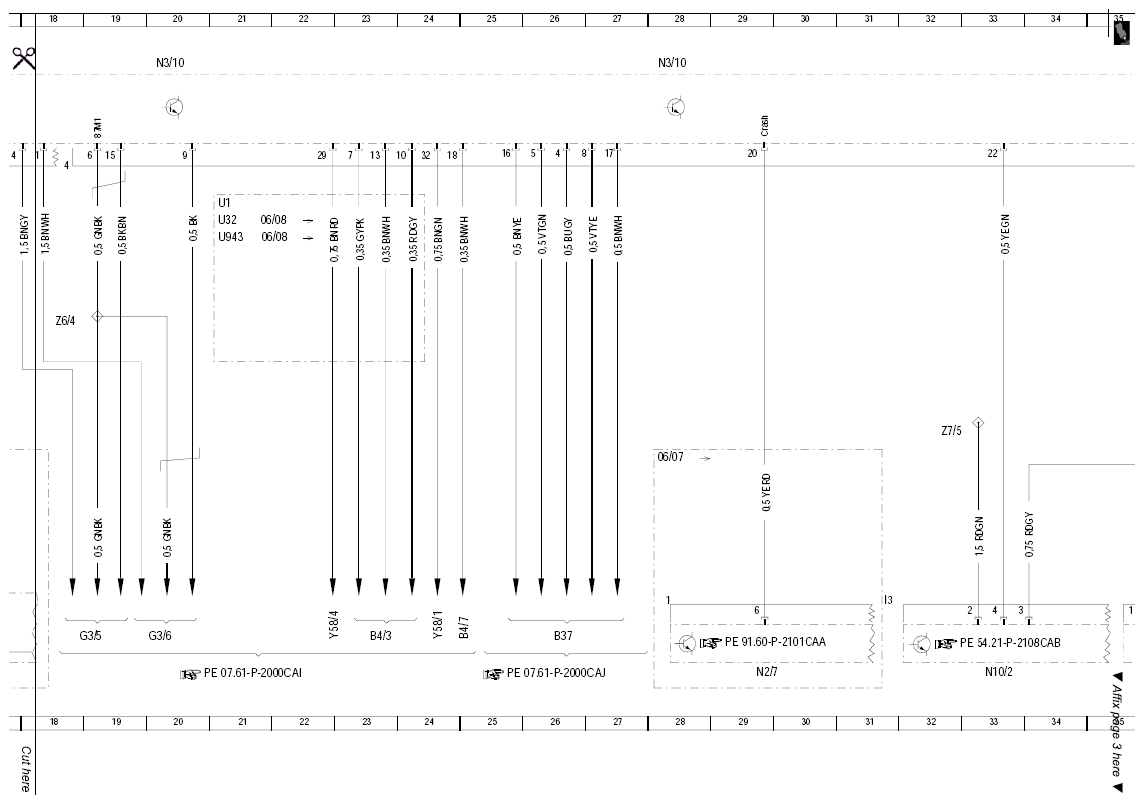

| Y58/1 |
Purge control valve |
12K |
| Y58/4 |
Activated charcoal filter shutoff valve |
11K |
| Z3 |
Circuit 15 connector sleeve |
35E |
| Z6/4 |
Ground connector sleeve (sensor downstream TWC) |
8E |
| Z7/5 |
Circuit 87 connector sleeve |
1G |
| Z7/5 |
Circuit 87 connector sleeve |
20G |
