Position portable lifting platform - AR01.10-P-2500-01A

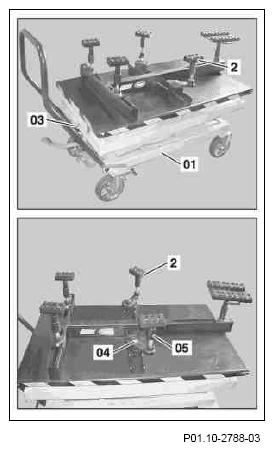

The lifting platform (01) is variably adjustable in the vehicle longitudinal direction at the adjusting screw (03). The mounting plates (2) guided in rails are also variably adjustable in the vehicle longitudinal direction and transverse direction at the adjusting screw (04) to the transmission and front axle carrier. The respectively individual mounting plates (2) can be adjusted for height by means of an adjusting rod (05) to the required tilt of the transmission and front axle carrier.
Ensure that no cables of lines get caught when lowering.

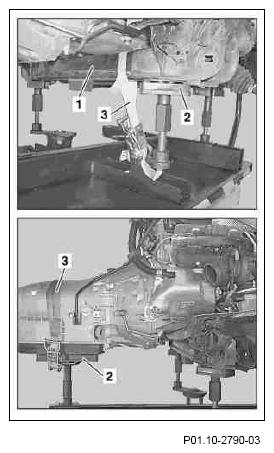

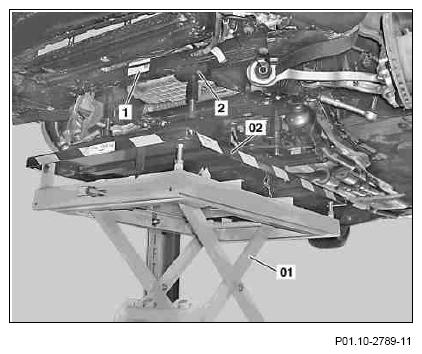

- Position lifting platform (01) with aggregate mount (02) under the front axle carrier (1).
Take note in doing so of even alignment of the mounting plates (2) on the engine/transmission unit.
- Fix the whole engine/transmission unit by means of tensioning straps (3) to the mounting plates (2).
