Relay for charge air cooler recirculation pump - location - GF09.41-P-3106-01MS

The power supply to the charge air cooler circulation pump relay is fused

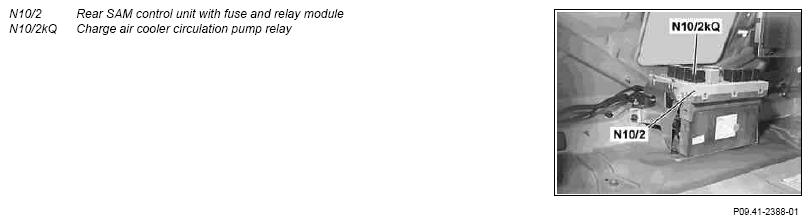

Fig 1: Identifying Rear SAM Control Unit With Fuse And Relay Module And Charge Air Cooler Circulation Pump Relay
G07540964Courtesy of MERCEDES-BENZ USA
