Adaptive Brake (ABR) location of components - GF42.47-P-0001-02LEA

Shown on model 216.3 up to 31.8.10

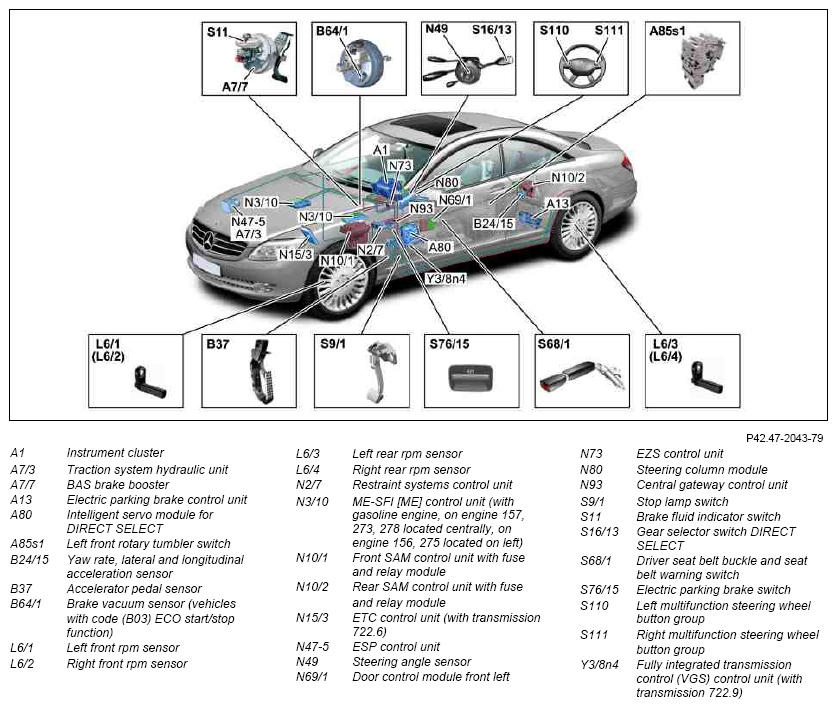

Fig 1: Identifying Adaptive Brake (ABR) Components Location

Courtesy of MERCEDES-BENZ USA

Shown on model 216.3 as of 1.9.10 (with basic system)

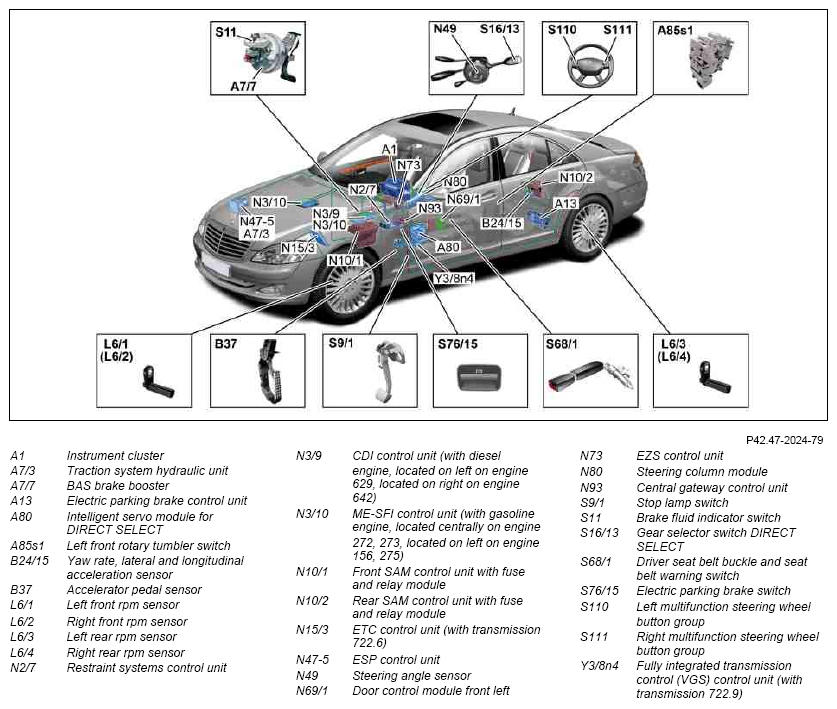

Fig 2: Identifying Adaptive Brake (ABR) Components Location

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 up to 31.8.10 (with basic system)

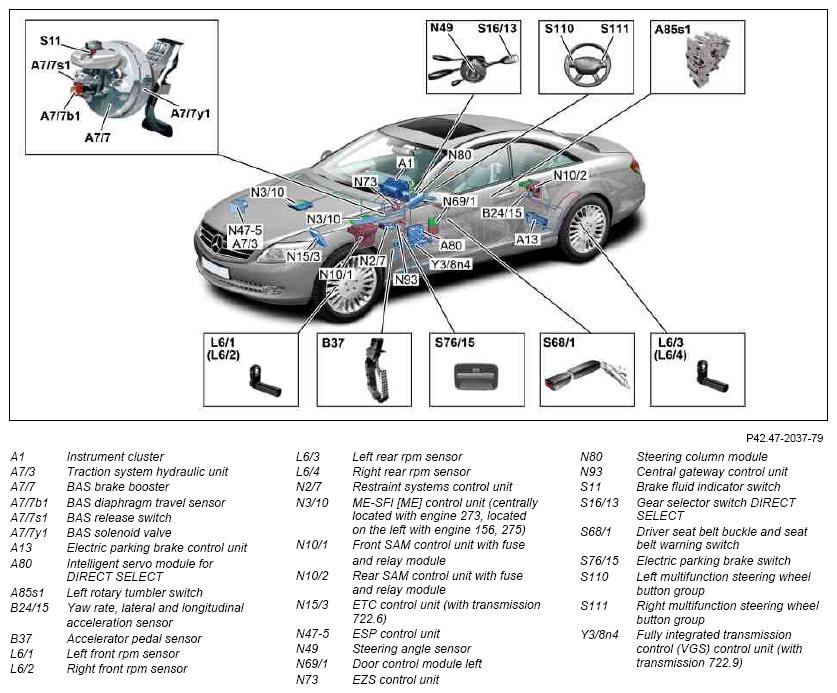

Fig 3: Identifying Adaptive Brake (ABR) Components Location

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 as of 1.9.10 (with basic system)

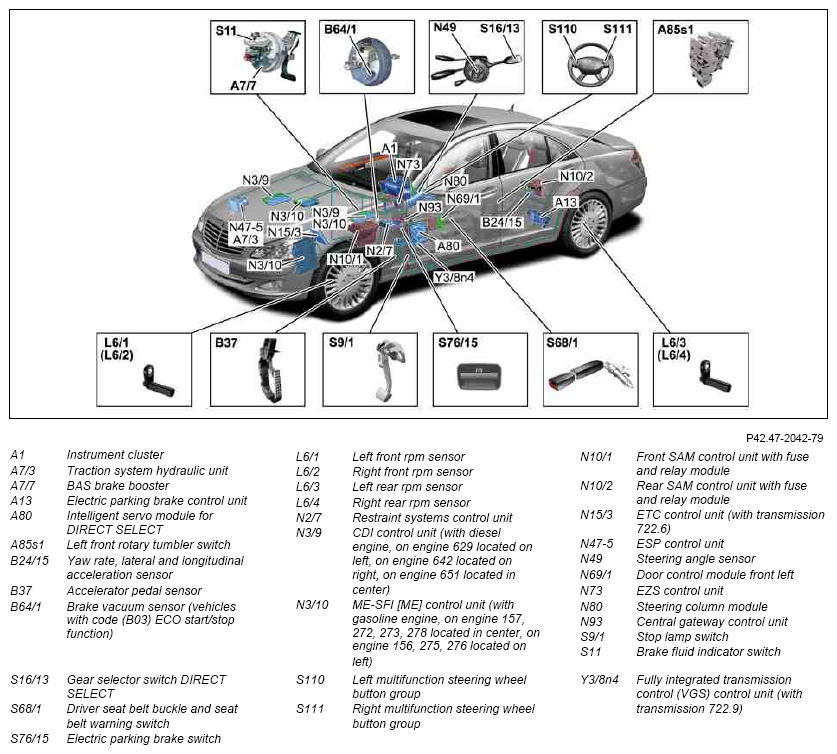

Fig 4: Identifying Adaptive Brake (ABR) Components Location

Courtesy of MERCEDES-BENZ USA
