Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03LEA

Shown up to 31.8.10

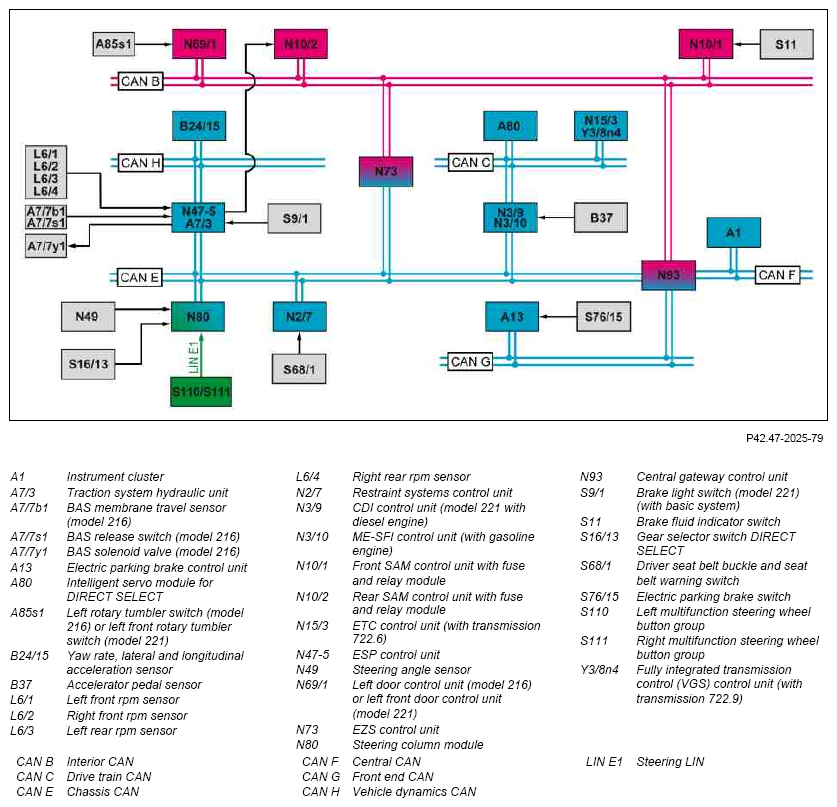

Fig 1: Identifying Adaptive Brake (ABR) Block Diagram

Courtesy of MERCEDES-BENZ USA

Shown as of 1.9.10

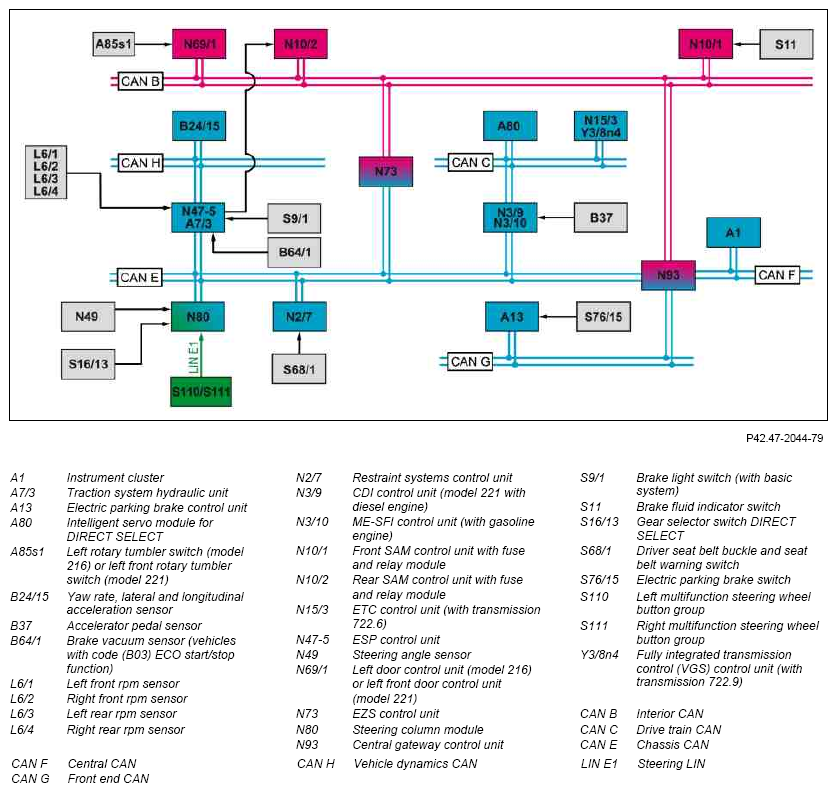

Fig 2: Identifying Adaptive Brake (ABR) Block Diagram

Courtesy of MERCEDES-BENZ USA
