Wiring diagram rear control unit - PE67.39-P-2101-99CAA

Code:	Designation:	Position:
A0	Explanation of color codes	23L
F1/6	Right instrument panel fuse box	3L
F1/6f81	Fuse 81	3K
F1/6f82	Fuse 82	1K
M10/5	Left rear power window motor	10L
M10/6	Right rear power window motor	13L
N22/6	Rear control module	4A
N22/6	Rear control module	12A
N22/6	Rear control module	20A
S21/3	Left rear power window switch	17L
S21/4	Right rear power window switch	20L
W17	Ground (right rear seat)	1E
X30/33	Right interior CAN/FFS [RBA] voltage distributor connector	7L
Y24/4	Left head restraint raise valve	21L
Y24/5	Right head restraint raise valve	22L

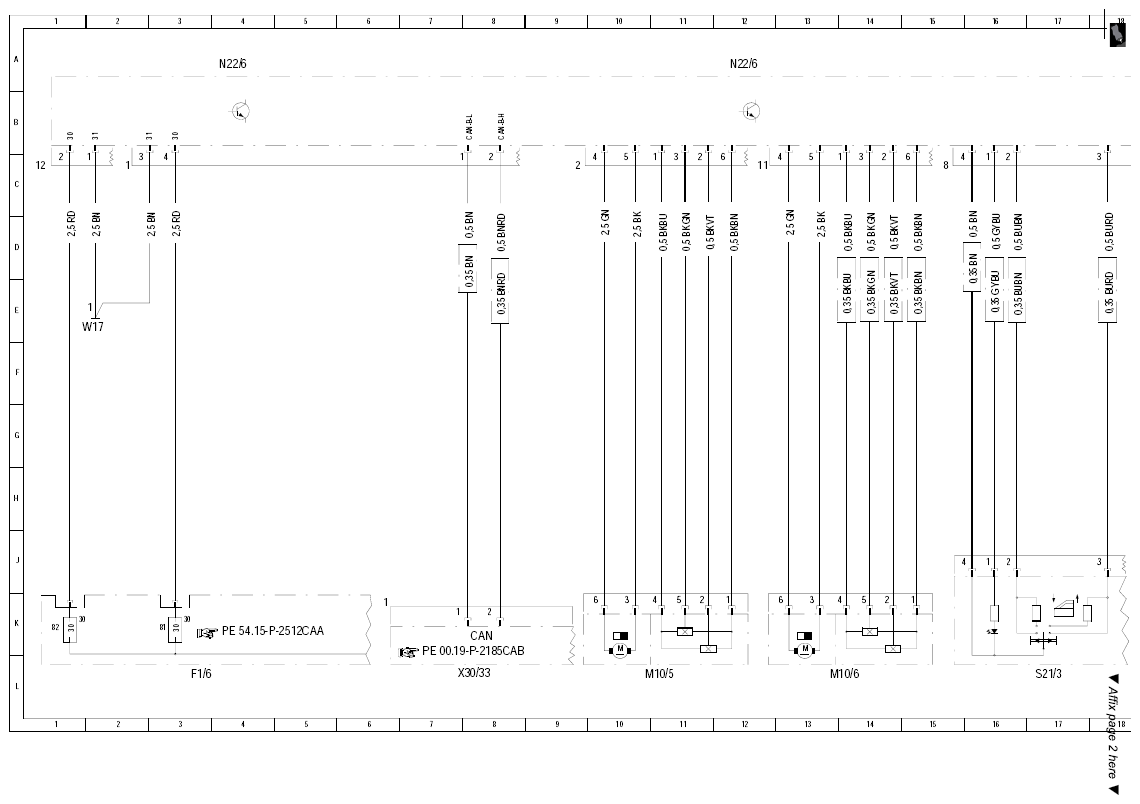

Fig 1: Rear Control Unit - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

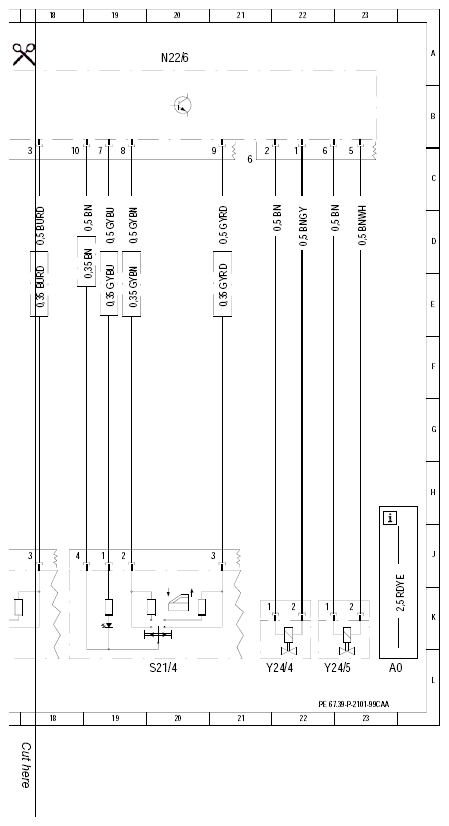

Fig 2: Rear Control Unit - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
