| A0 |
Explanation of color codes |
56L |
| A85 |
Left door lock unit |
45K |
| B58 |
Driver door infrared sensor |
41K |

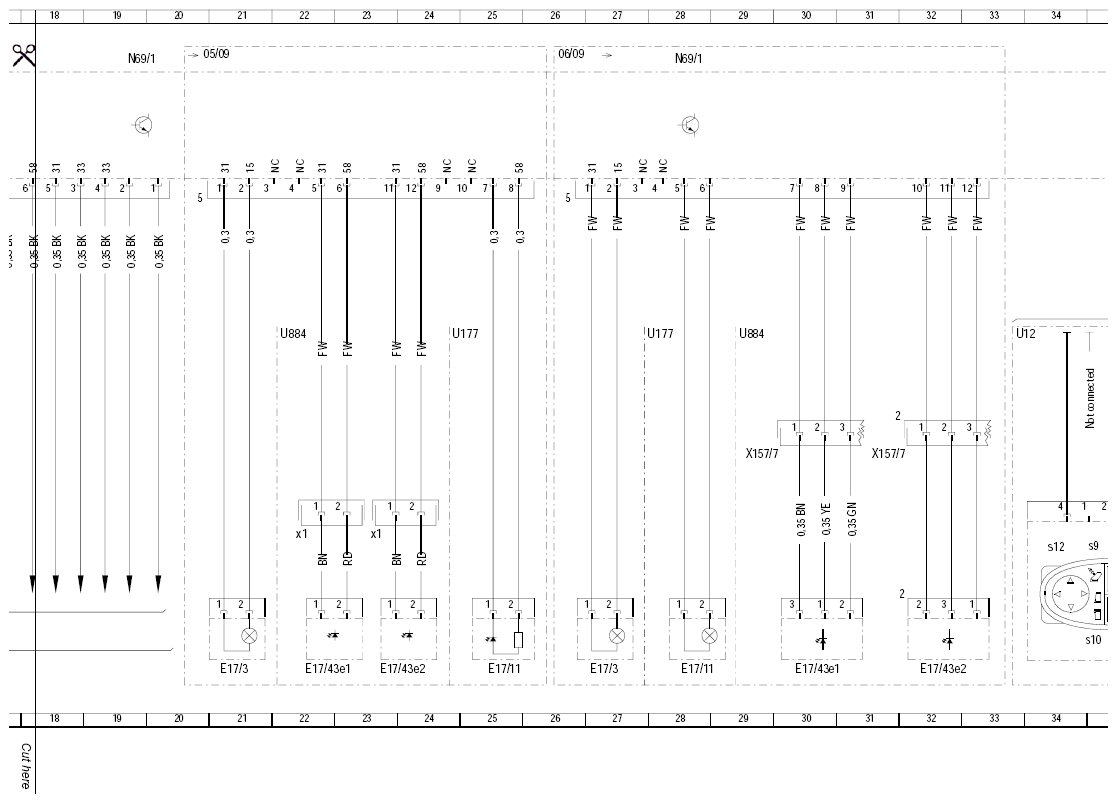

| E17/11 |
Left door inside handle illumination |
24L |

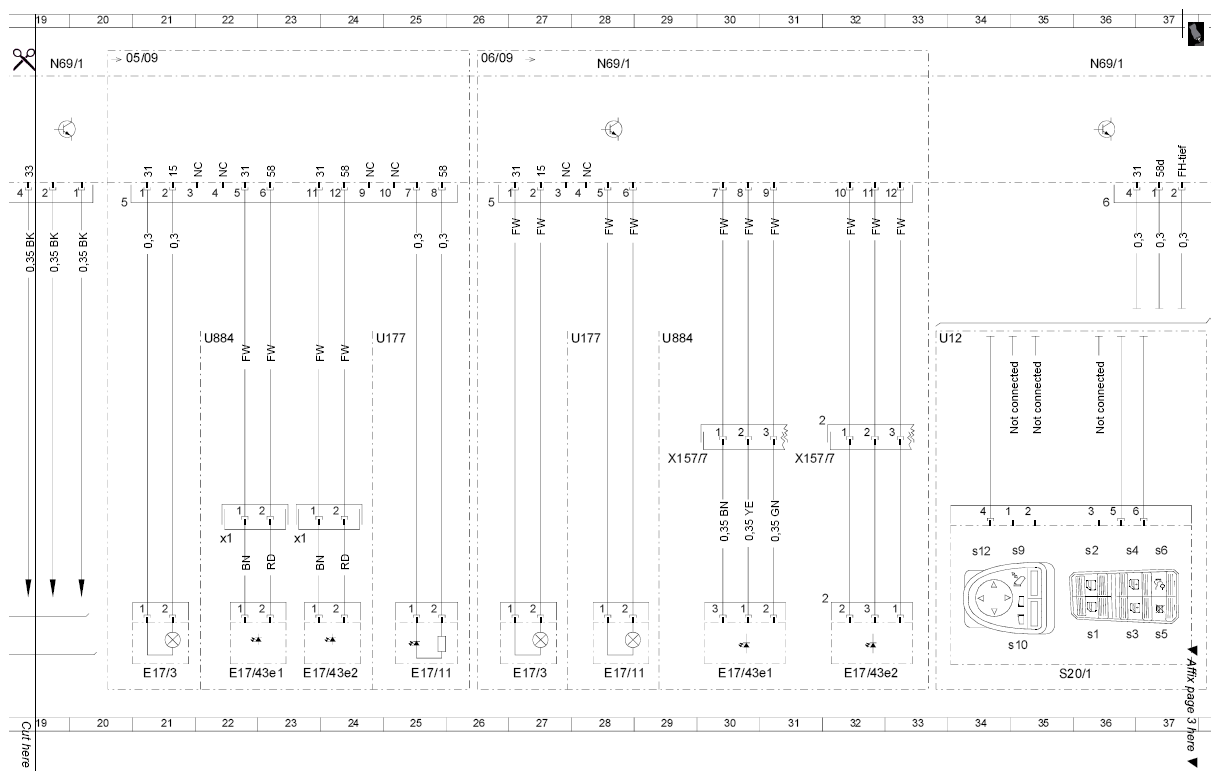

| E17/3 |
Left door entrance and exit lamp |
20L |
| E17/43e1 |
Left door trim strip illumination, lamp 1 |
21L |
| E17/43e2 |
Left door trim strip illumination, lamp 2 |
22 L |

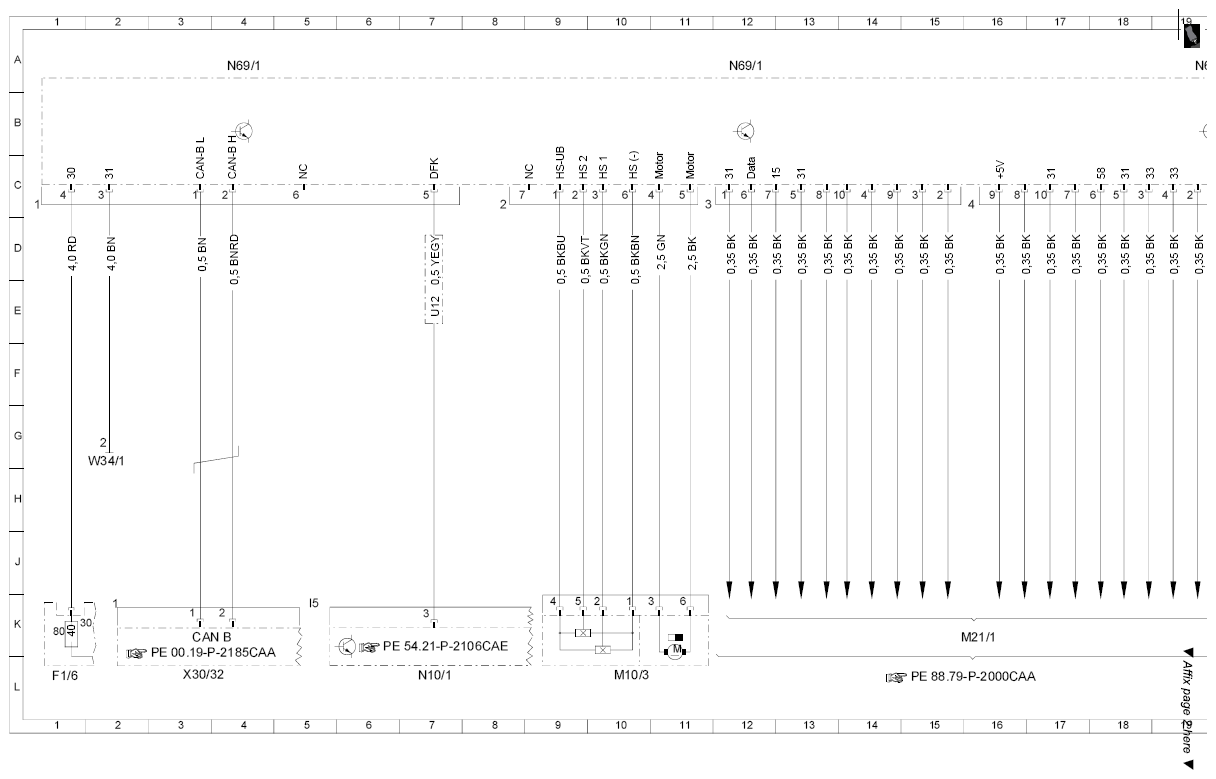

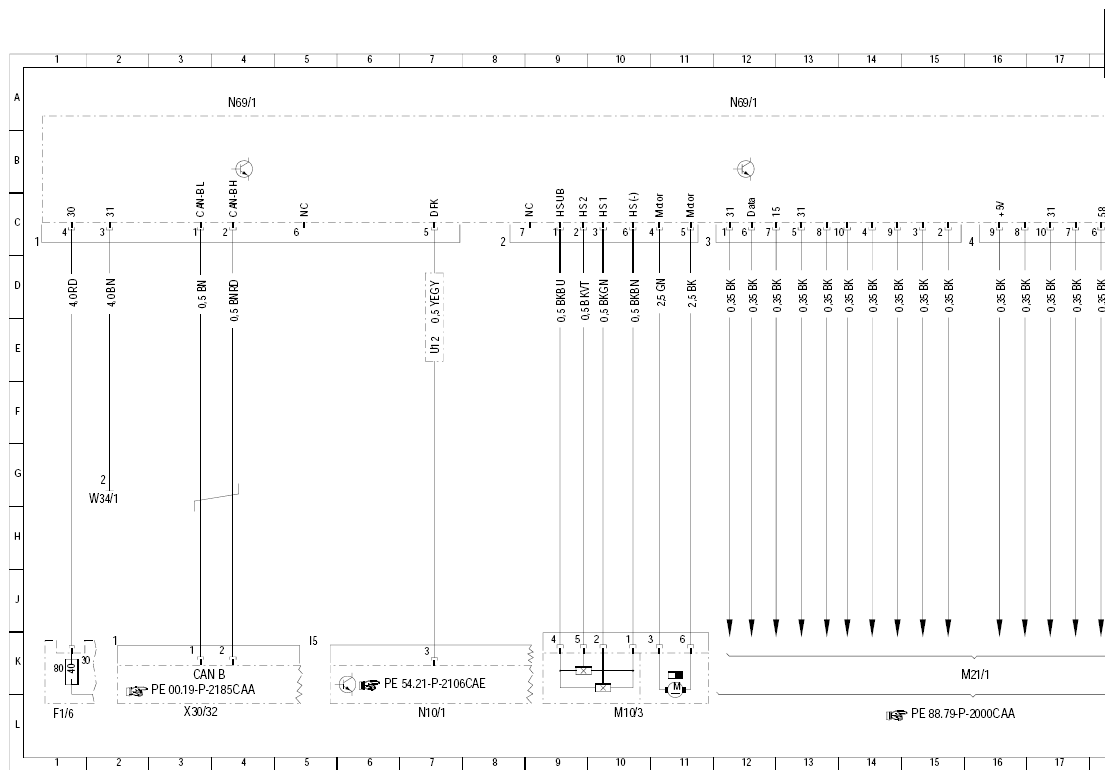

| F1/6 |
Right instrument panel fuse box |
1L |
| F1/6f80 |
Fuse 80 |
1K |
| M10/3 |
Left front power window motor |
10L |
| M21/1 |
Left electrically adjustable and heated exterior mirror |
15K |
| N10/1 |
Front SAM control module with fuse and relay module |
7L |
| N69/1 |
Left door control module |
4A |
| N69/1 |
Left door control module |
12A |
| N69/1 |
Left door control module |
20A |
| N69/1 |
Left door control module |
28A |
| N69/1 |
Left door control module |
36A |
| N69/1 |
Left door control module |
44A |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
27L |
| S20/1s1 |
Left front power window switch |
27K |
| S20/1s10 |
Left/right outside mirror adjustment selection switch |
26L |
| S20/1s12 |
Outside mirror adjustment rocker switch |
25J |
| S20/1s2 |
Right front power window switch |
27J |
| S20/1s3 |
Left rear power window switch |
28K |
| S20/1s4 |
Right rear power window switch |
28J |
| S20/1s5 |
Rear side windows child safety lock switch |
28K |
| S20/1s6 |
Trunk lid open/close switch |
28J |
| S20/1s9 |
Exterior mirror fold-in/fold-out switch |
26J |

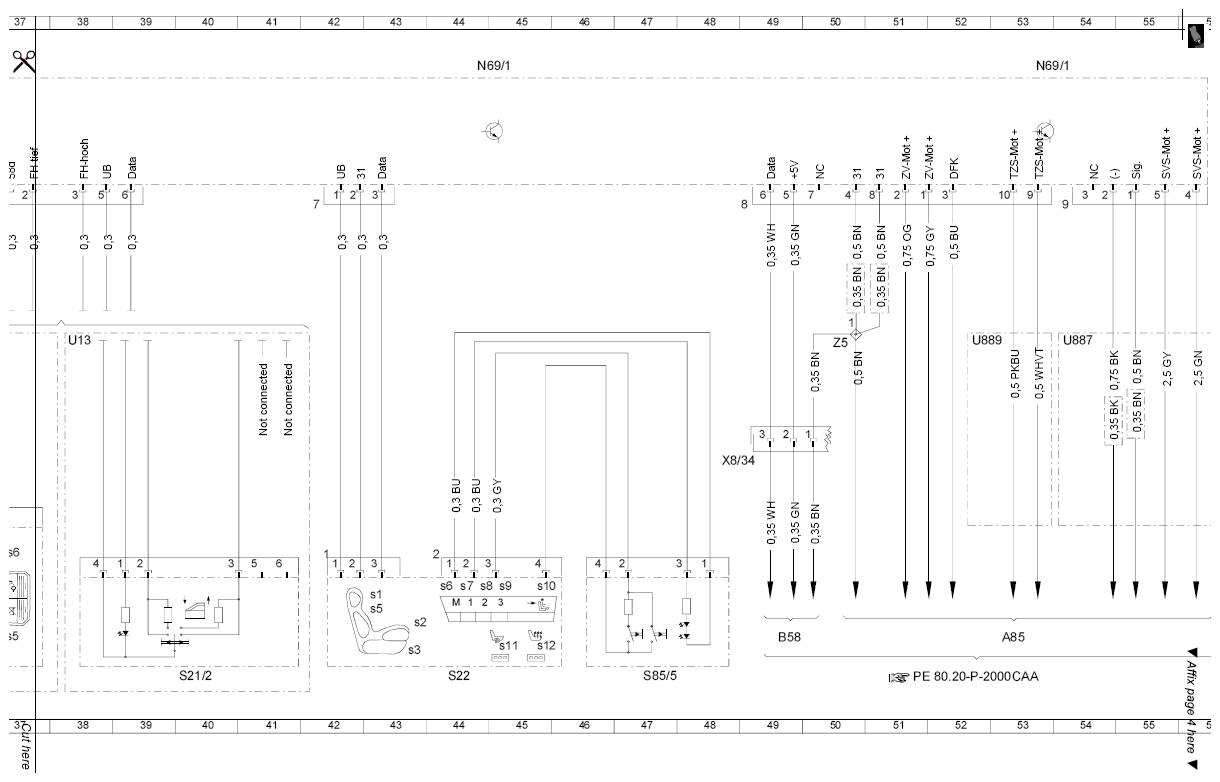

| S21/2 |
Front passenger power window switch |
31L |

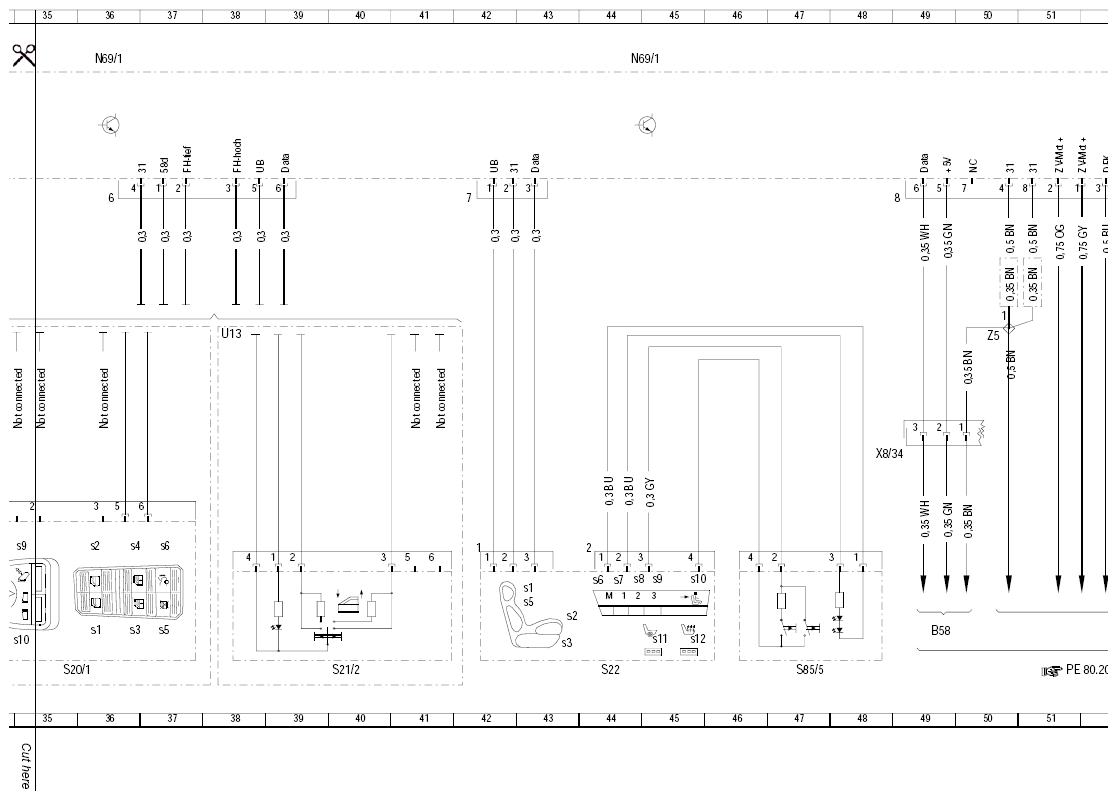

| S22 |
Left front seat operation switch group |
36L |
| S22s1 |
Head restraint adjustment switch |
34K |
| S22s10 |
Left or right seat adjustment selection switch |
37K |
| S22s11 |
Seat ventilation switch |
36K |
| S22s12 |
Heated seat switch |
37K |
| S22s2 |
Seat cushion forward/back switch |
35K |
| S22s3 |
Fore/aft, height and inclination adjustment switch |
35L |
| S22s5 |
Backrest switch |
34K |
| S22s6 |
Memory store button switch |
35K |
| S22s7 |
Memory 1 switch |
36K |
| S22s8 |
Memory 2 switch |
36K |
| S22s9 |
Memory 3 switch |
36K |
| S85/5 |
Left Interior CL [ZV] switch |
39L |
| U12 |
Valid for left-hand steering |
7E |
| U12 |
Valid for left-hand steering |
25F |
| U12 |
Valid for left-hand steering |
37G |
| U13 |
Valid for right-hand steering |
29F |
| U177 |
Not valid for ambiance illumination |
21F |
| U887 |
Valid for power closing |
46F |
| U889 |
Valid for additional door lock |
44F |
| W34/1 |
Ground (electronics - left footwell) |
2H |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
3L |
| X8/34 |
Left door handle connector |
40H |
| Z5 |
Connector sleeve (solder joint in harness) |
42E |
