Adjust inside rearview mirror to steering variant - AR68.40-P-0001-01A

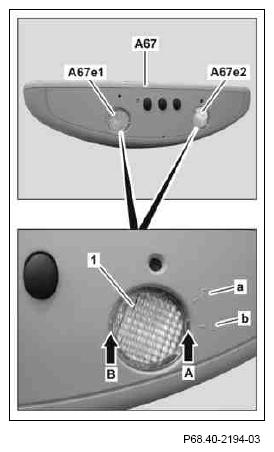

Adjust left reading lamp (A67e1) and right reading lamp (A67e2) according to steering variant of vehicle. Otherwise the driver can be blinded by the left reading lamp (A67e1) or right reading lamp (A67e2).
The cutout (arrow A) for the lens (1) must be set to marking "R" (a) on vehicles with right-hand steering and to "L" (b) on vehicles with left-hand steering.
- Check adjustment of left reading lamp (A67e1) and right reading lamp (A67e2). If necessary, turn lens (1) in cutouts (arrow A, arrow B) to corresponding marking (a, b) with retaining ring pliers.
Carefully turn lens (1), otherwise lens (1) can be damaged.
Use plies for retaining rings with a max. diameter of approx. 1.3 mm and an opening width of at least 20 mm.
