Remove/install front door - AR72.10-P-0500SC

MODEL 216.3

Shown on left door on vehicle with code (889) Keyless Go

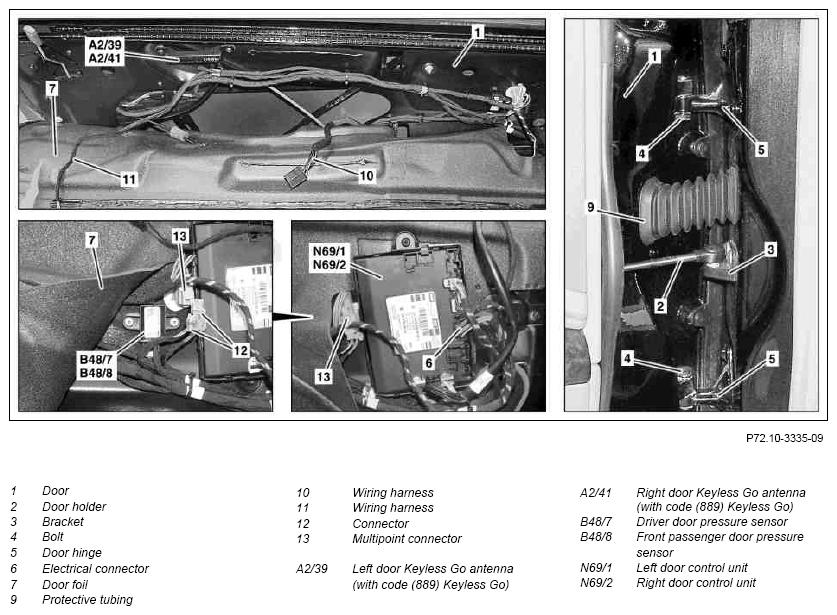

Fig 1: Identifying Front Door Components

Courtesy of MERCEDES-BENZ USA

Shown on vehicles equipped with code (810) Sound system

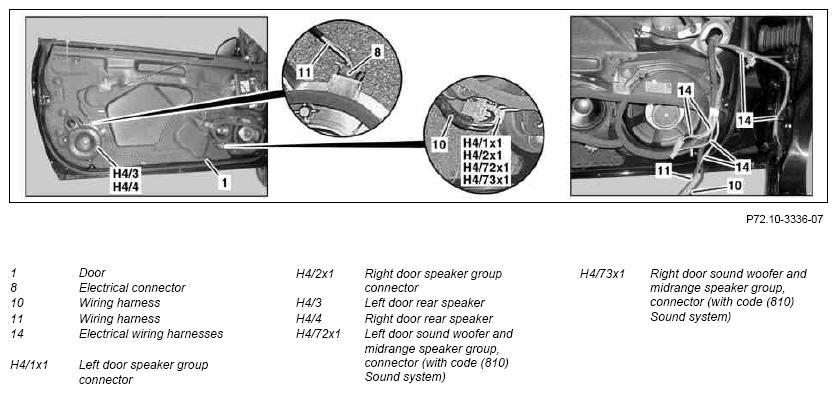

Fig 2: Identifying Front Door Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining		AR72.10-P-1000SC
2	Unclip door holder (2) from bracket (3) with suitable screwdriver.	Carefully unclip door holder (2). Use rag to protect against paint damage.
3	Unscrew bolts (4) from both door hinges (5).	Installation:  Repair paint damage on bolts heads (4) with touch-up paint pen.	*BA72.10-P-1003-01Q
4	Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit	Keyless Go start/stop button only for vehicles with code (889) Keyless Go.
5	Disconnect electrical connector (6) from left door control unit (N69/1) or right door control unit (N69/2).
6	Detach door foil (7) from inner door panel until electric wiring harnesses (10, 11) are accessible.	Do not cut door foil (7); cut butyl cord to which door foil (7) is glued.
		Installation:  Install new butyl cord parallel to damaged butyl cord and roll down firmly.
			*168589056300
		Sealing cord	*BR00.45-Z-1086-01A
7.1	Disconnect left door speaker group connector (H4/1x1) and right door speaker group connector (H4/2x1).	On vehicles without code (810) Sound system
7.2	Disconnect left door sound woofer and midrange speaker group connector (H4/72x1) or right door sound woofer and midrange speaker group connector (H4/73x1)	On vehicles with code (810) Sound system
8	Disconnect connector (8) from left door rear speaker (H4/3) or right door rear speaker (H4/4).
9	Guide electric wiring harnesses (10, 11) through door foil (7) toward inside.
10.1	Disconnect electrical connector from left door keyless go antenna (A2/39) or right door keyless go antenna (A2/41).	On vehicles with code (889) Keyless go
11	Disconnect electrical connector from driver door pressure sensor (B48/7) or passenger door pressure sensor (B48/8).
12	Disconnect connector (12) from multipoint connector (13).
13	Unclip protective hose (9) from door (1).		*110589035900
14	Remove electric wiring harnesses (10, 11, 14) from inner door panel and pull out of door (1) toward front.	Number of electric wiring harnesses (14) depending on vehicle equipment
15	Remove door (1) upward from door hinges (5) with aid of helper.
16	Install in the reverse order
17	Check adjustment of door (1), correct if necessary.		AR72.10-P-0550SC

Fig 3: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA
