Remove/install lock cylinder on glove compartment lock - AR68.10-P-1250SX

MODEL 164, 166, 204, 207, 212, 216.3, 221.0/1, 251

Shown on model 221

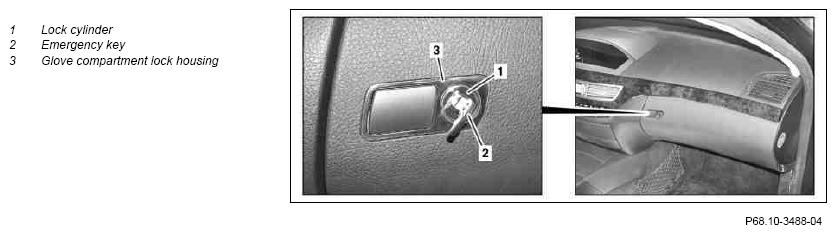

Fig 1: Identifying Lock Cylinder, Emergency Key And Glove Compartment Lock Housing

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Insert emergency key (2) into lock cylinder (1) and turn counterclockwise with aid of pliers until the lock cylinder (1) releases	Installation:  Turn lock cylinder (1) clockwise until lock cylinder (1) arrests audibly.
2	Pull lock cylinder (1) and emergency key (2) out of glove compartment lock housing (3)
3	Install in the reverse order
