Retrofit iPod interface with video function - AZ82.60-P-0017SC
MODEL 216.3## (except 216.377 /379) 1# up to 31.5.09 with CODE (809) Model year 2009 except CODE (518) Media interface
MODEL 216.3## (except 216.377 /379) 1# up to 31.5.09 except CODE (800) Model year 2010 except CODE (518) Media interface
Shown on vehicle without code (498) Japan version

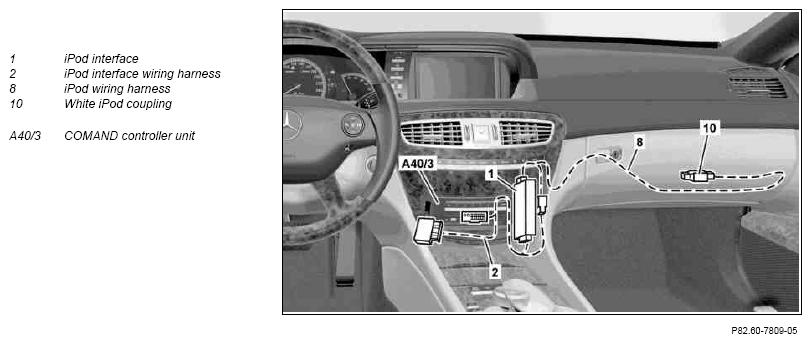

Fig 1: Identifying Ipod Interface, Ipod Interface Wiring Harness, Ipod Wiring Harness And White Ipod Coupling
| Removing | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove COMAND controller unit (A40/3) | AR82.85-P-1100SC | |
| 2 | Remove glove box | AR68.10-P-1400SX | |
| Install | |||
| 3 | Retrofit wiring harness for iPod (8) and wiring harness for iPod interface (2) | Vehicles without code (498) Japan version Cordless drill/driver | AZ82.60-P-0001-01SCA |
| Vehicles with code (498) Japan version Cordless drill/driver | AZ82.60-P-0001-01SCB | ||
| Notes on avoiding damage to optical fibers during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05AK | |
| 4 | Retrofit iPod interface (1) | Vehicles without code (498) Japan version | AZ82.60-P-0001-03SCA |
| Vehicles with code (498) Japan version | AZ82.60-P-0001-03SCB | ||
| 5 | Install glove box | AR68.10-P-1400SX | |
| 6 | Install COMAND controller unit (A40/3) | AR82.85-P-1100SC | |
| 7 | Document retrofitted equipment using vehicle documentation (VeDoc) | ||
| 8 | Perform function test of iPod interface (1) |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| DG 98 (see EPC) | Electrical system and function | 1 |
