Retrofit iPod interface wiring harness - AZ82.60-P-0001-01SCB

Connection scheme

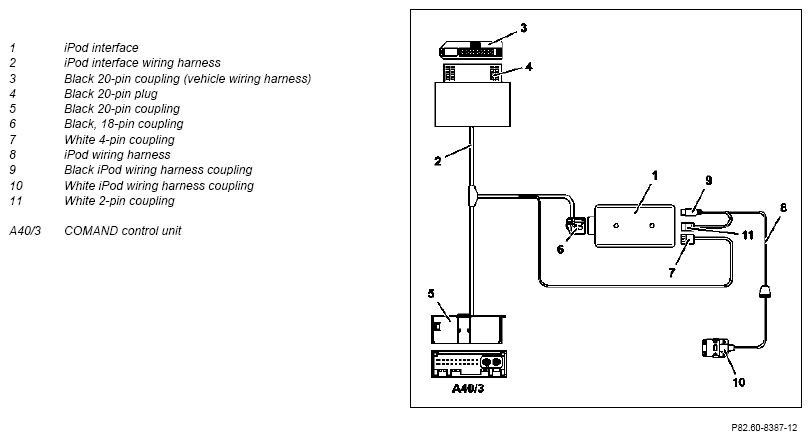

Fig 1: Identifying Retrofit Ipod Interface Wiring Harness Connection Diagram

Courtesy of MERCEDES-BENZ USA

Routing diagram

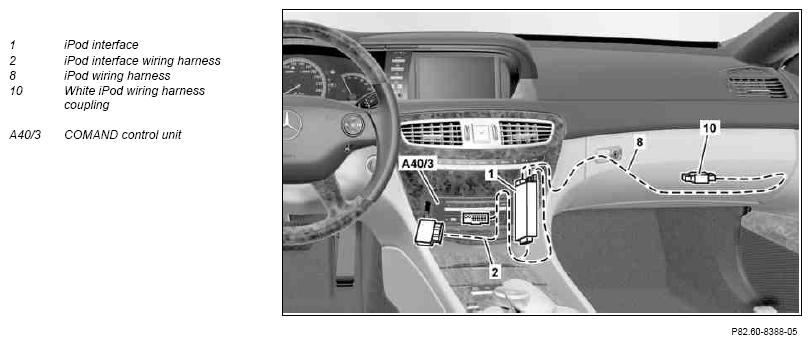

Fig 2: Identifying Retrofit Ipod Interface Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ USA

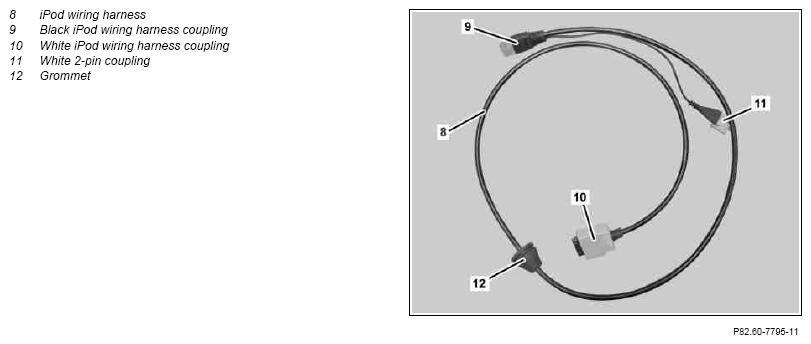

Fig 3: Identifying Ipod Wiring Harness, Black/White Ipod Wiring Harness Coupling, White 2-Pin Coupling And Grommet

Courtesy of MERCEDES-BENZ USA

1. Detach outer insulation material (13) from glove box (14) and fold upwards.
2. Open glove box lid, make marking as shown on glove box (14) and drill a hole with a diameter of 20 mm. Cordless drill/driver

   Dimension:  A = 20 mm (distance of hole to reference edge (arrow B)). The upper edge of the glove box lamp (E13/1) serves as a horizontal reference edge.

   Fig 4: Identifying Distance Of Hole To Reference Edge

   Courtesy of MERCEDES-BENZ USA
3. Route black coupling for iPod wiring harness (8) through the hole drilled into the glove box (14) and outwards then seal the hole with grommet (12).

   The black coupling for the iPod wiring harness is connected when the iPod interface is installed.

4. Fold back outer insulation material on the glove box (14).
   Fig 5: Identifying Glove Box, Grommet And Ipod Wiring Harness

   Courtesy of MERCEDES-BENZ USA

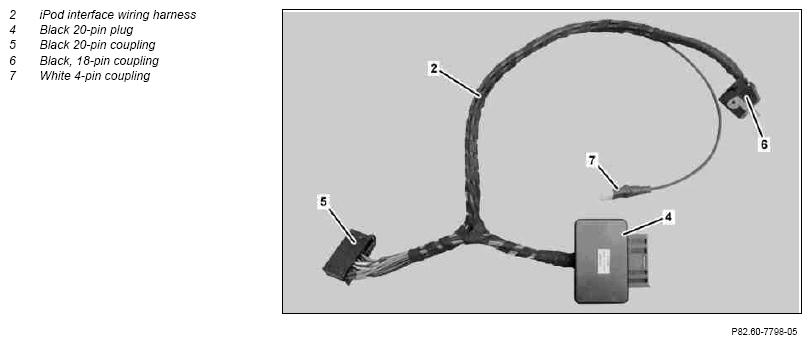

   Fig 6: Identifying Ipod Interface Wiring Harness, Black 20-Pin Coupling And White 4-Pin Coupling

   Courtesy of MERCEDES-BENZ USA
   Fig 7: Identifying Vehicle Wiring Harness And Ipod Interface

   Courtesy of MERCEDES-BENZ USA
5. Place wiring harness for iPod interface (2) into installation opening for COMAND controller unit.
6. Expose both optical fibers on the vehicle wiring harness (arrow C).
7. Remove optical fiber coupling (15) from black 20-pin coupling (3) and install at the same position in the black 20-pin coupling (5) of the wiring harness for the iPod interface (2).
8. Fasten both optical fibers approx. 50 mm behind the black 20-pin coupling (5) using insulation tape to the wiring harness for the iPod interface (2) (arrow D).
9. Connect black 20-pin coupling (3) and black 20-pin plug (4), then wrap completely with felt tape and stow under the installation frame (16) of the COMAND controller unit.
10. Route black 18-pin coupling (6) and white 2-pin coupling (7) on wiring harness for iPod interface (2), as shown, into the front passenger footwell.

    The black 18-pin coupling (6) and white 2-pin coupling (7) are not connected until the iPod interface is installed.

    Fig 8: Identifying Routing Of Black 18-Pin Coupling And White 2-Pin Coupling On Wiring Harness For Ipod Interface

    Courtesy of MERCEDES-BENZ USA
