Retrofit iPod interface wiring harness - AZ82.60-P-0001-01SCA

Connection scheme

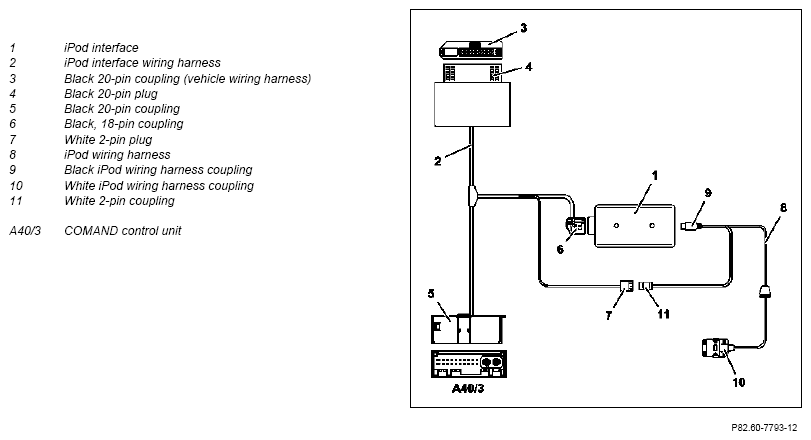

Fig 1: Identifying Retrofit Ipod Interface Wiring Harness Connection Diagram

Courtesy of MERCEDES-BENZ USA

Routing diagram

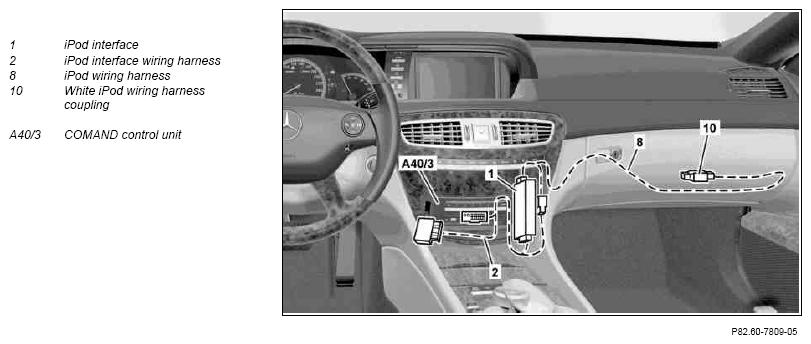

Fig 2: Identifying Retrofit Ipod Interface Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ USA

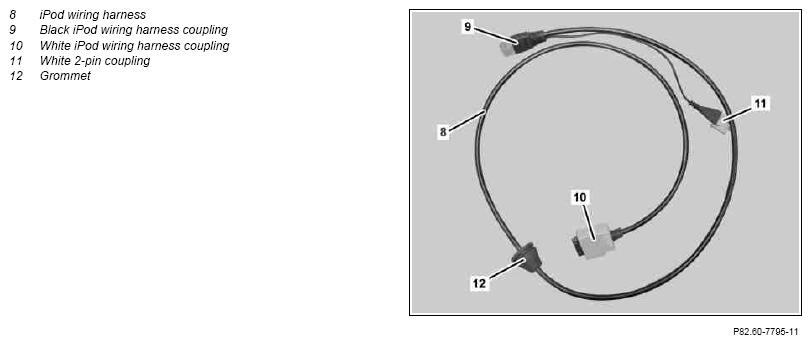

Fig 3: Identifying Ipod Wiring Harness, Black And White Wiring Harness Coupling And Grommet

Courtesy of MERCEDES-BENZ USA

1. Detach outer insulation material (13) on glove box (14) and fold upwards.
2. Open glove box lid, make marking as shown on glove box (14) and drill a hole with a diameter of 20 mm. Cordless drill/driver

   Dimension  : A = 20 mm (distance of bore to reference edge (arrow B)). The upper edge of the glove box lamp (E13/1) serves as a horizontal reference edge.

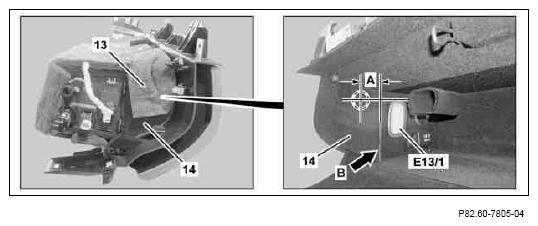

   Fig 4: Identifying Distance Of Bore To Reference Edge

   Courtesy of MERCEDES-BENZ USA
3. Route black coupling for iPod wiring harness (8) through the hole drilled into the glove box (14) and outwards then seal the hole with grommet (12).

   The black coupling for the iPod wiring harness is connected when the iPod interface is installed.

4. Fold back outer insulation material on the glove box (14).

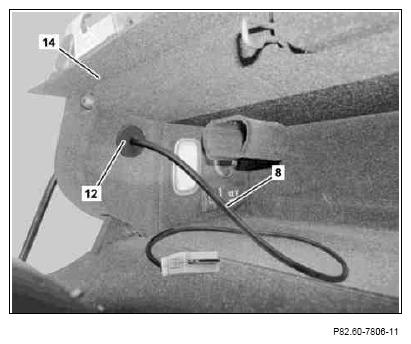

   Fig 5: Identifying Ipod Wiring Harness, Glove Box And Grommet

   Courtesy of MERCEDES-BENZ USA

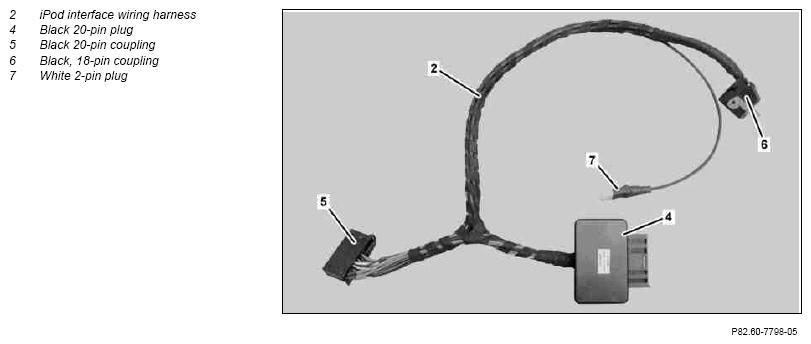

   Fig 6: Identifying Ipod Wiring Harness, Black 20-Pin Plug, Black 20-Pin Coupling And 18-Pin Coupling

   Courtesy of MERCEDES-BENZ USA

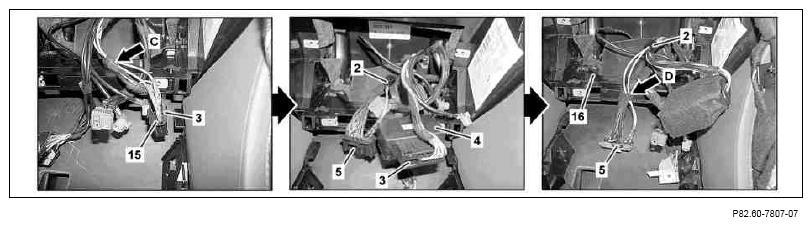

   Fig 7: Identifying Ipod Interface, Vehicle Wiring Harness, And Optical Fibre Coupling

   Courtesy of MERCEDES-BENZ USA
5. Place wiring harness for iPod interface (2) into installation opening for COMAND controller unit.
6. Expose both optical fibers on the vehicle wiring harness (arrow C).
7. Remove optical fiber coupling (15) from black 20-pin coupling (3) and install at the same position in the black 20-pin coupling (5) of the wiring harness for the iPod interface (2).
8. Fasten both optical fibers approx. 50 mm behind the black 20-pin coupling (5) using insulation tape to the wiring harness for the iPod interface (2) (arrow D).
9. Connect black 20-pin coupling (3) and black 20-pin plug (4), then wrap completely with felt tape and stow under the installation frame (16) of the COMAND controller unit.
10. Route black 18-pin coupling (6) and white 2-pin plug (7) on wiring harness for iPod interface (2), as shown, into the front passenger footwell.

    The black 18-pin coupling (6) and white 2-pin plug (7) are not connected until the iPod interface is installed.

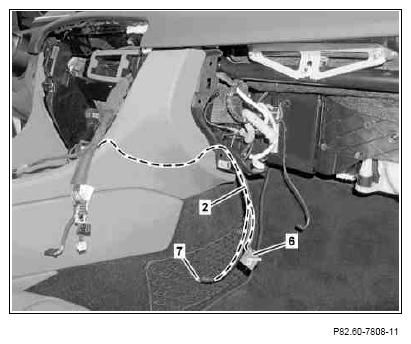

    Fig 8: Identifying Routing Of Black 18-Pin Coupling And White 2-Pin Plug

    Courtesy of MERCEDES-BENZ USA
