Retrofit iPod interface - AZ82.60-P-0001-03SCB

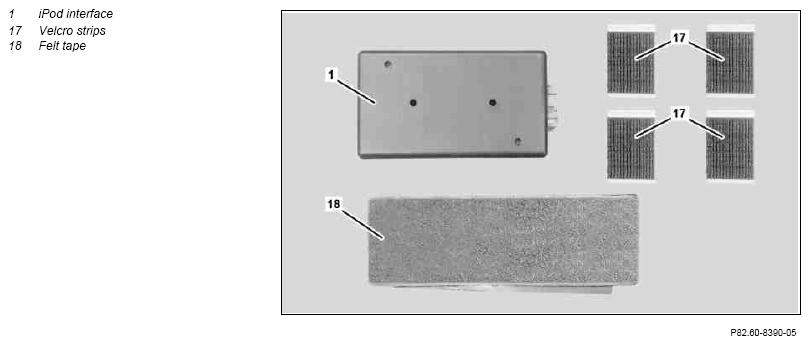

Fig 1: Identifying Ipod Interface, Velcro Strips And Felt Tape

Courtesy of MERCEDES-BENZ USA

Affix felt tape (18) to iPod interface (1), as shown.
The connector (arrow) for the iPod wiring harness is located at the top right.
Align two Velcro strips (17) centrally to each other and press together.
Detach protective foil on one side and stick Velcro strips (17), as shown, onto iPod interface (1).

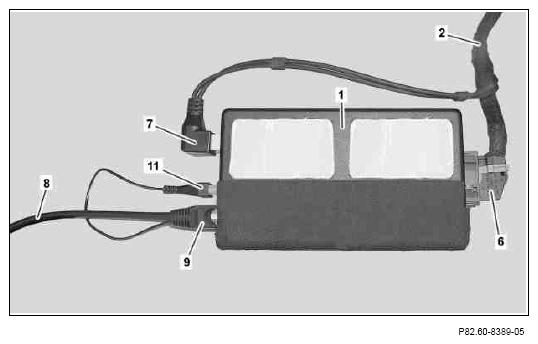

Fig 2: Identifying iPod Interface, Felt Tape And Velcro Strips
Courtesy of MERCEDES-BENZ USA
Place glove box into front passenger footwell.
Connect black coupling for iPod wiring harness (9) and white 2-pin coupling (11) of iPod wiring harness (8), as shown, to the iPod interface (1).
Connect black 18-pin coupling (6) and white 4-pin coupling (7) for iPod interface wiring harness (2), as shown, to the iPod interface (1).

Fig 3: Identifying Ipod Wiring Harness, White 2-Pin Coupling Of Ipod Wiring Harness And Ipod Interface
Courtesy of MERCEDES-BENZ USA
Fold insulation material (4) on inside of side piece (5) to one side.
Clean bonding surfaces on inside of side piece (5).
The bonding surfaces must be dry and free of grease and dust.
Detach protective foils for Velcro strips on iPod interface (1).
Position iPod interface (1), as shown, on the inside of the side piece (5), press on firmly and fold back insulation material (4).
Make sure that the wiring harnesses routed into the working area are not kinked or crushed.

Fig 4: Identifying Ipod Interface, Insulation Material And Side Piece
Courtesy of MERCEDES-BENZ USA
