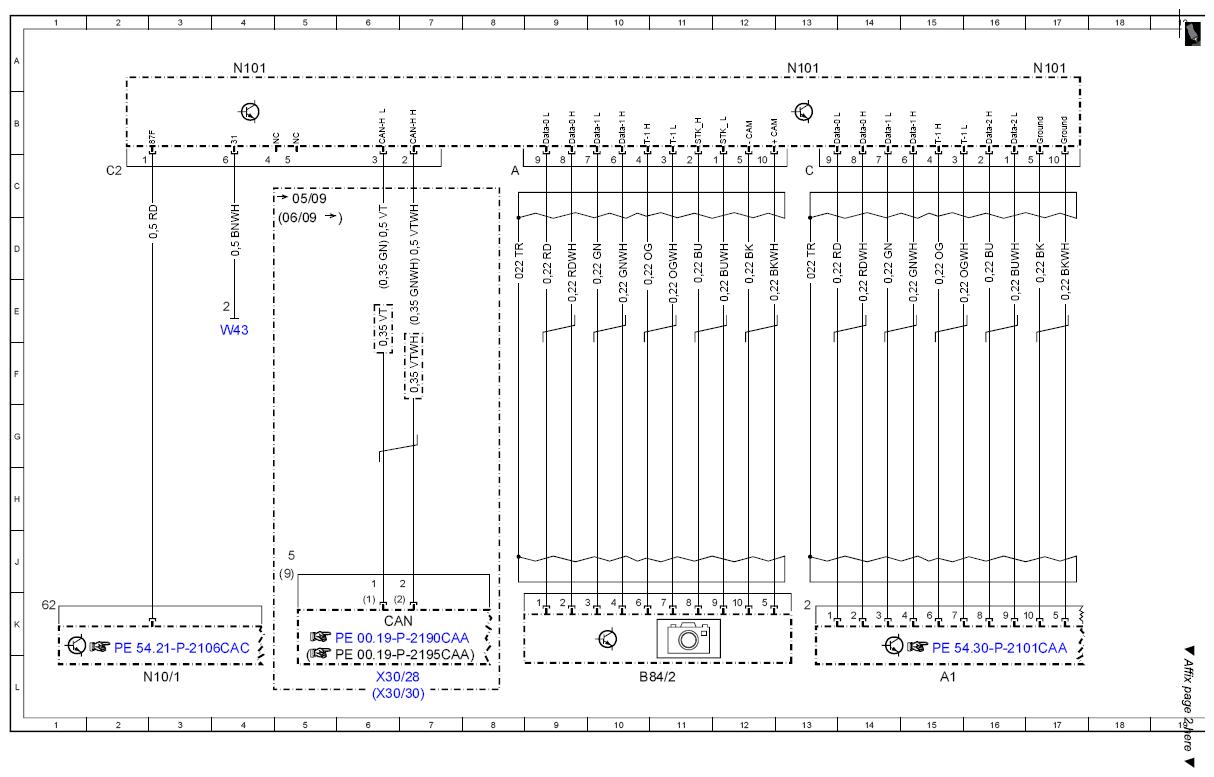

Wiring diagram, night view assist control unit - PE54.30-P-2103-97CAA
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 23L |
| A1 | Instrument cluster | 15L |
| B84/2 | Night vision assist camera | 10L |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N101 | Night vision assist control unit | 4A |
| N101 | Night vision assist control unit | 13A |
| N101 | Night vision assist control unit | 17A |
| W43 | Ground (reference, image transmission systems) | 4E |
| X30/28 | Vehicle dynamics CAN voltage distributor connector | 6L |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | 6L |
