| AO |
Explanation of color codes |
23L |
| A13 |
Electric parking brake control unit |
16L |
| N10/1 |
Front SAM control module with fuse and relay module |
2L |
| N123/4 |
Emergency call system control unit |
19L |

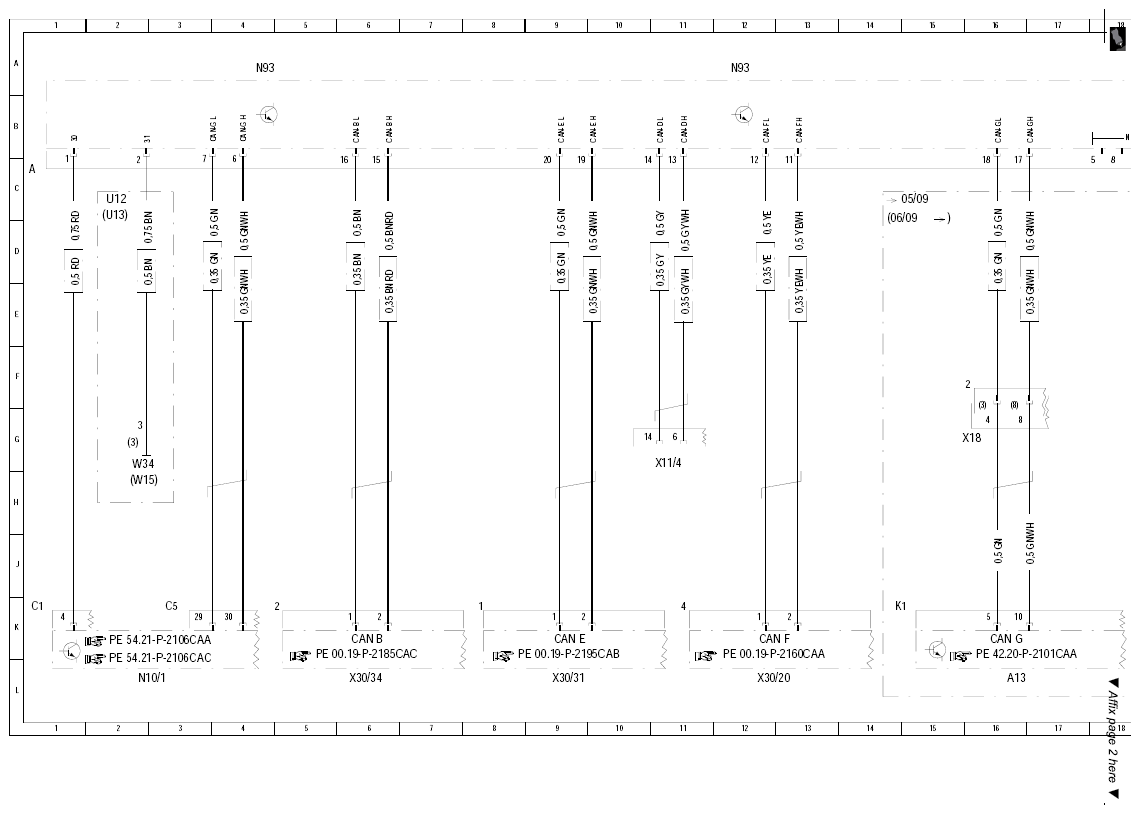

| N93 |
Central gateway control module |
4A |
| N93 |
Central gateway control module |
12A |
| N93 |
Central gateway control module |
19A |
| U1 |
Valid for {{USA}} |
18C |
| U12 |
Valid for left-hand steering |
2C |
| U13 |
Valid for right-hand steering |
2D |

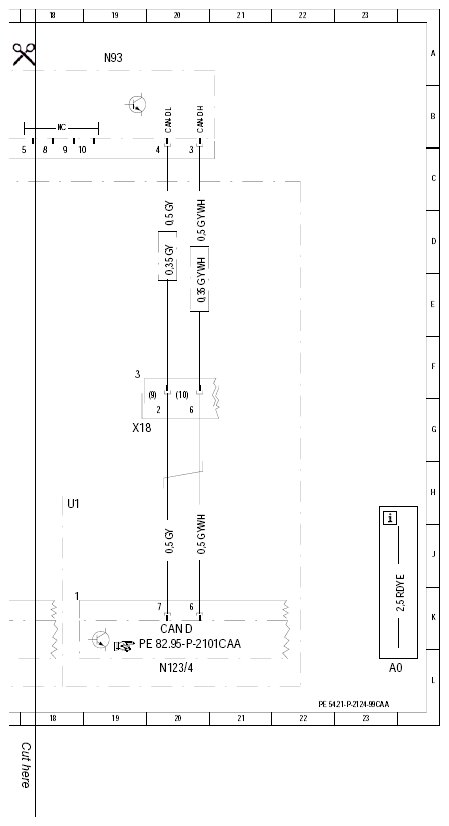

| W15 |
Ground (electronics power ground) |
2F |
| W34 |
Ground (left footwell) |
2E |
| X11/4 |
Data link connector |
11E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
15G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
19G |
| X30/20 |
Central CAN voltage distributor connector |
12L |
| X30/31 |
Chassis CAN/cockpit voltage distributor connector |
9L |
| X30/34 |
Interior CAN/cockpit voltage distributor connector |
6L |
