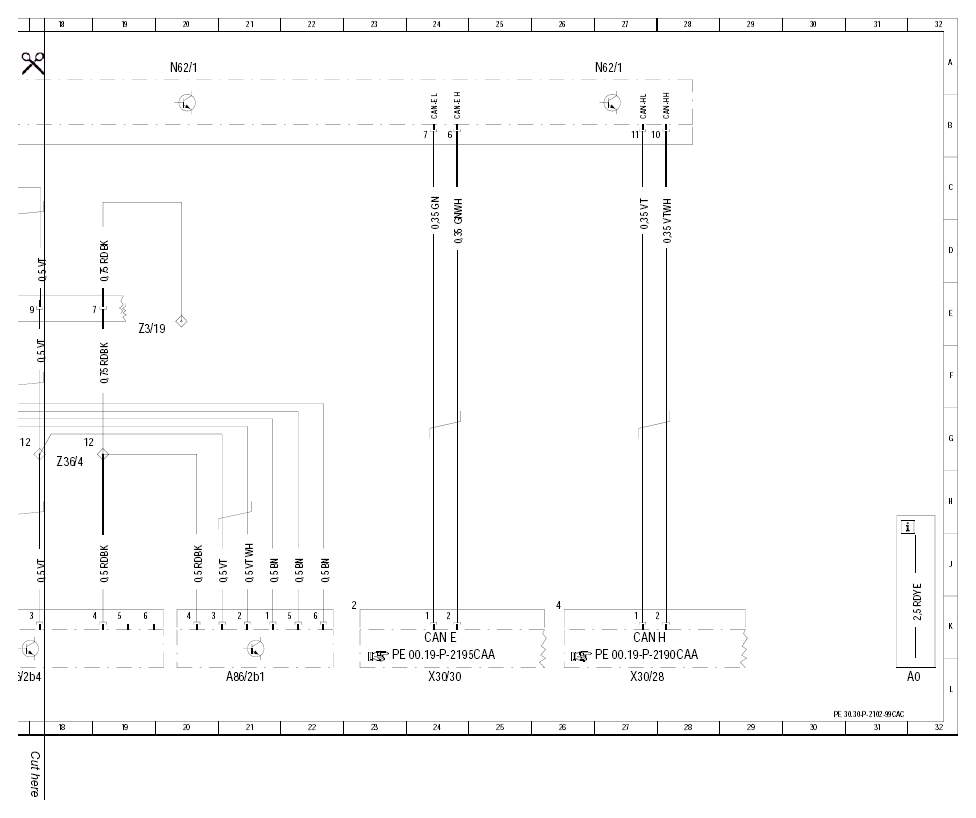

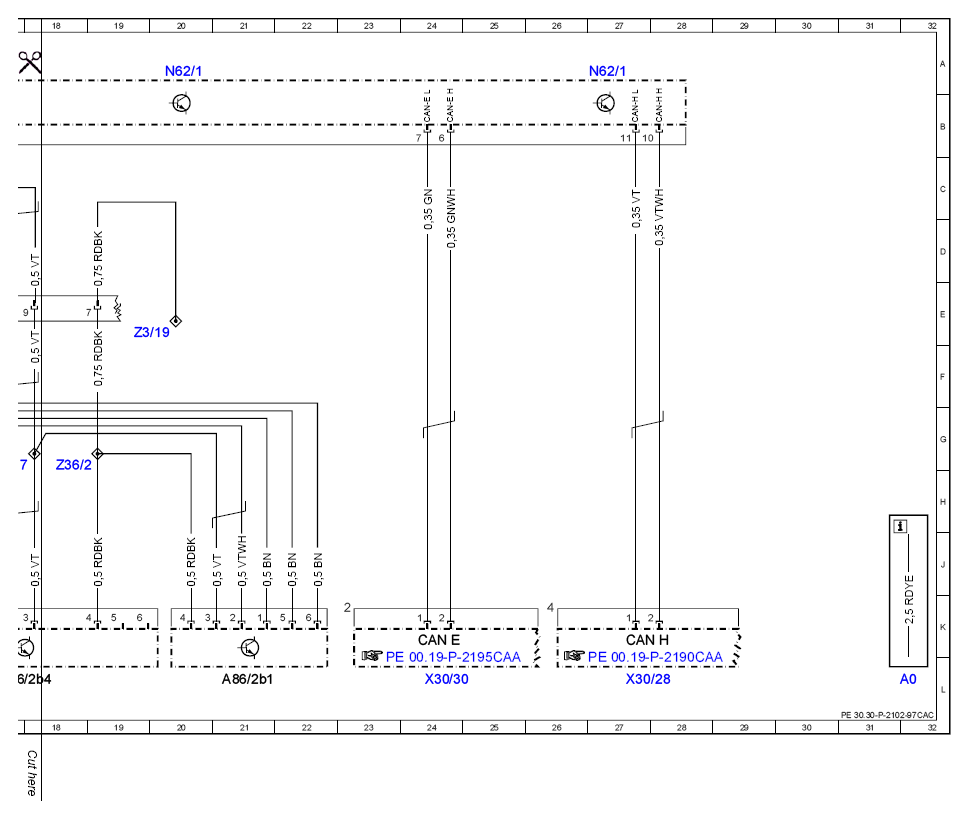

| A0 |
Color code key |
32L |

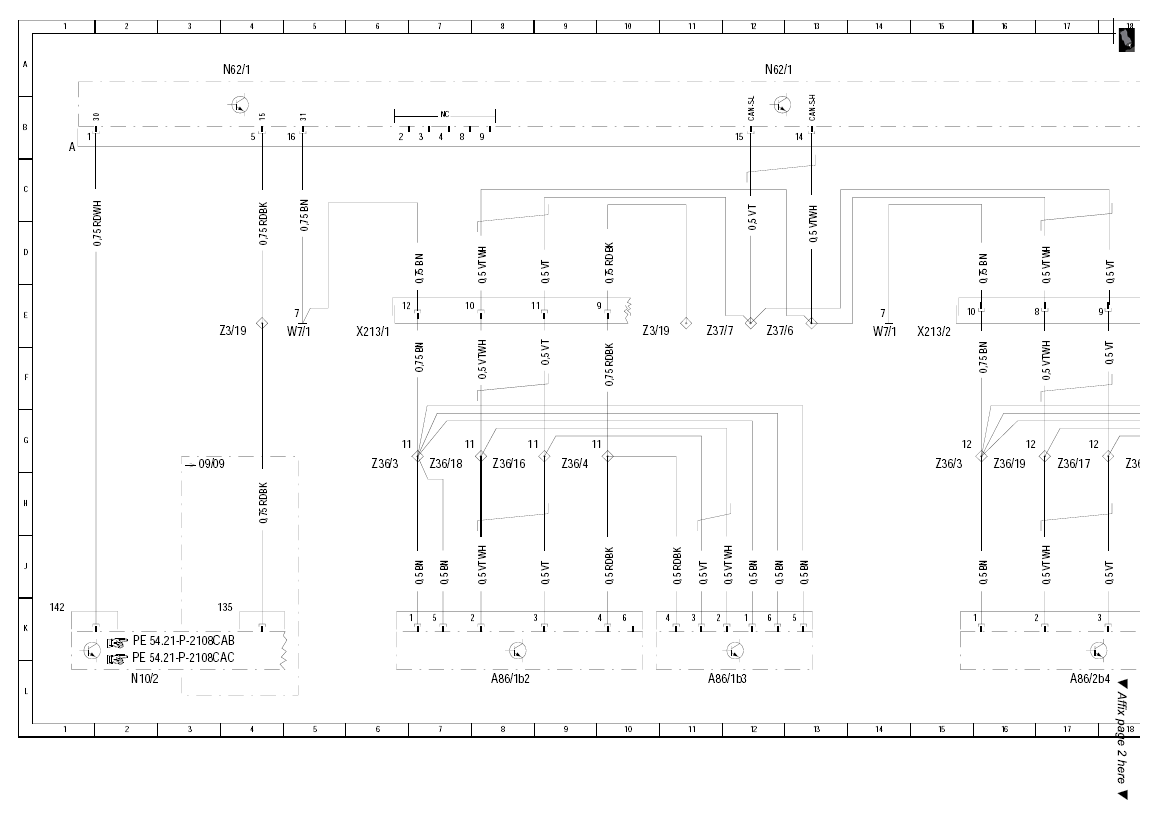

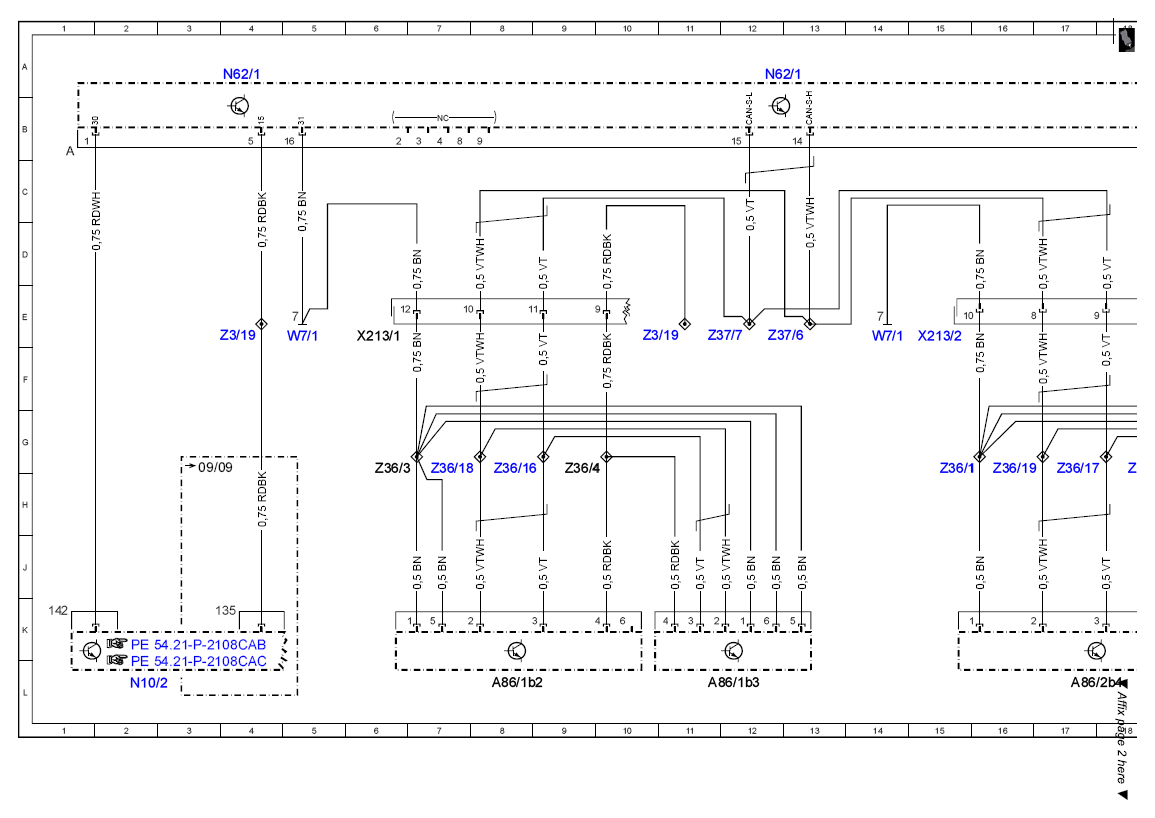

| A86/1b2 |
Left inner radar sensor, front bumper |
8L |
| A86/1b3 |
Right inner radar sensor, front bumper |
12L |
| A86/2b1 |
Right outer radar sensor, rear bumper |
21L |
| A86/2b4 |
Left outer radar sensor, rear bumper |
17L |
| CAN E |
Chassis CAN |
24K |
| CAN H |
Vehicle dynamics CAN |
27K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2L |
| N62/1 |
Radar sensors control unit (SGR) |
4A |
| N62/1 |
Radar sensors control unit (SGR) |
12A |
| N62/1 |
Radar sensors control unit (SGR) |
27A |
| N62/1 |
Radar sensors control unit (SGR) |
20A |
| W7/1 |
Ground (right taillamp in trunk) |
5E |
| W7/1 |
Ground (right taillamp in trunk) |
14E |
| X213/1 |
Front bumper Distronic (DTR) connecting point |
6E |
| X213/2 |
Rear bumper Distronic (DTR) connecting point |
15E |
| X30/28 |
Vehicle dynamics CAN voltage distributor connector |
27L |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
24L |
| Z3/19 |
Circuit 15 connector sleeve (fused) (PTS) |
4E |
| Z3/19 |
Circuit 15 connector sleeve (fused) (PTS) |
11E |
| Z3/19 |
Circuit 15 connector sleeve (fused) (PTS) |
20E |
| Z36/1 |
Rear PTS sensor ground connector sleeve |
15G |
| Z36/16 |
Front CAN (low) sensor connector sleeve |
8G |
| Z36/17 |
Rear CAN (low) sensor connector sleeve |
17G |
| Z36/18 |
Front CAN (high) sensor connector sleeve |
7G |
| Z36/19 |
Rear CAN (high) sensor connector sleeve |
16G |
| Z36/2 |
Rear PTS sensor voltage supply connector sleeve |
18G |
| Z36/3 |
Front PTS sensor ground connector sleeve |
6G |
| Z36/4 |
Front PTS sensor voltage supply connector sleeve |
9G |
| Z37/6 |
CAN databus (high) connector sleeve |
13E |
| Z37/7 |
CAN bus (low) connector sleeve |
12E |
