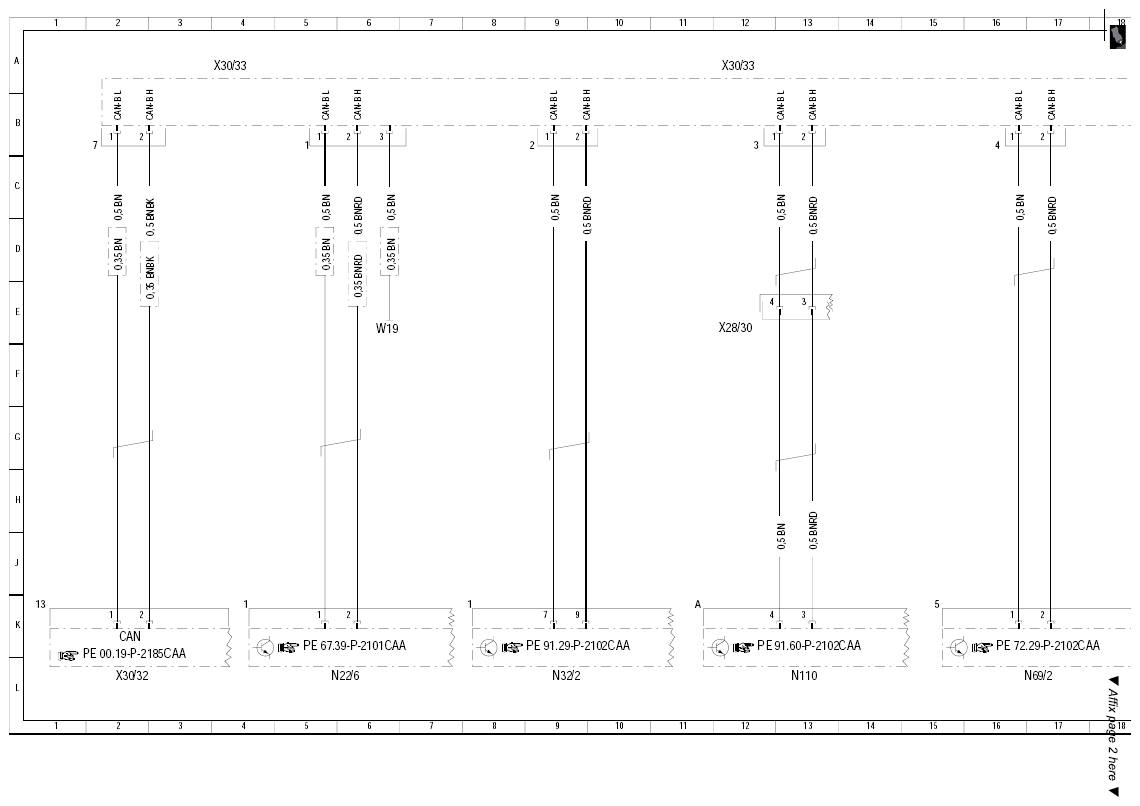

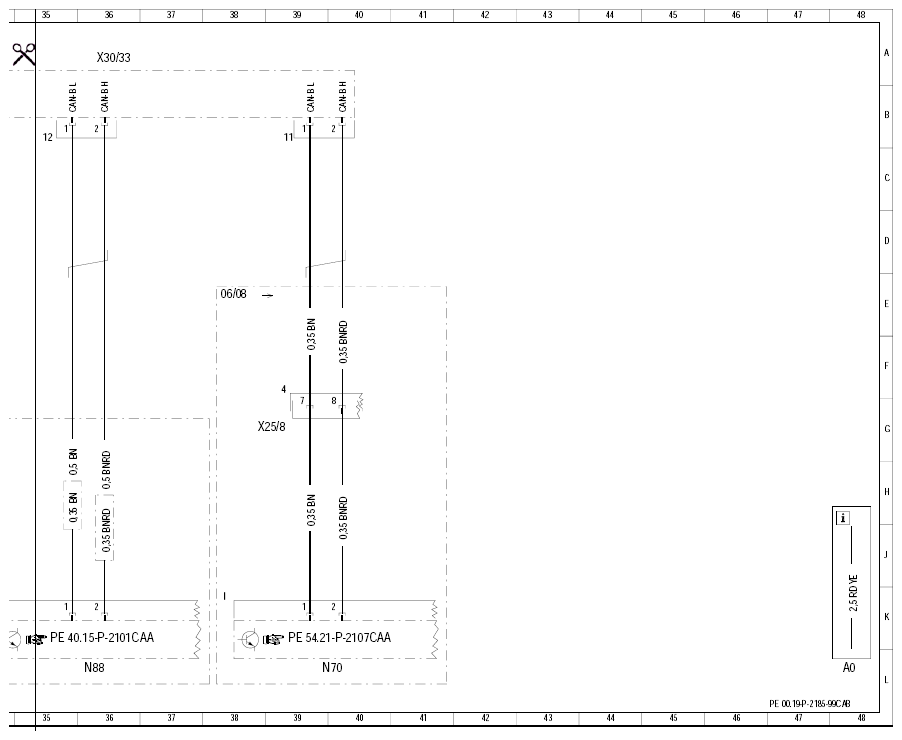

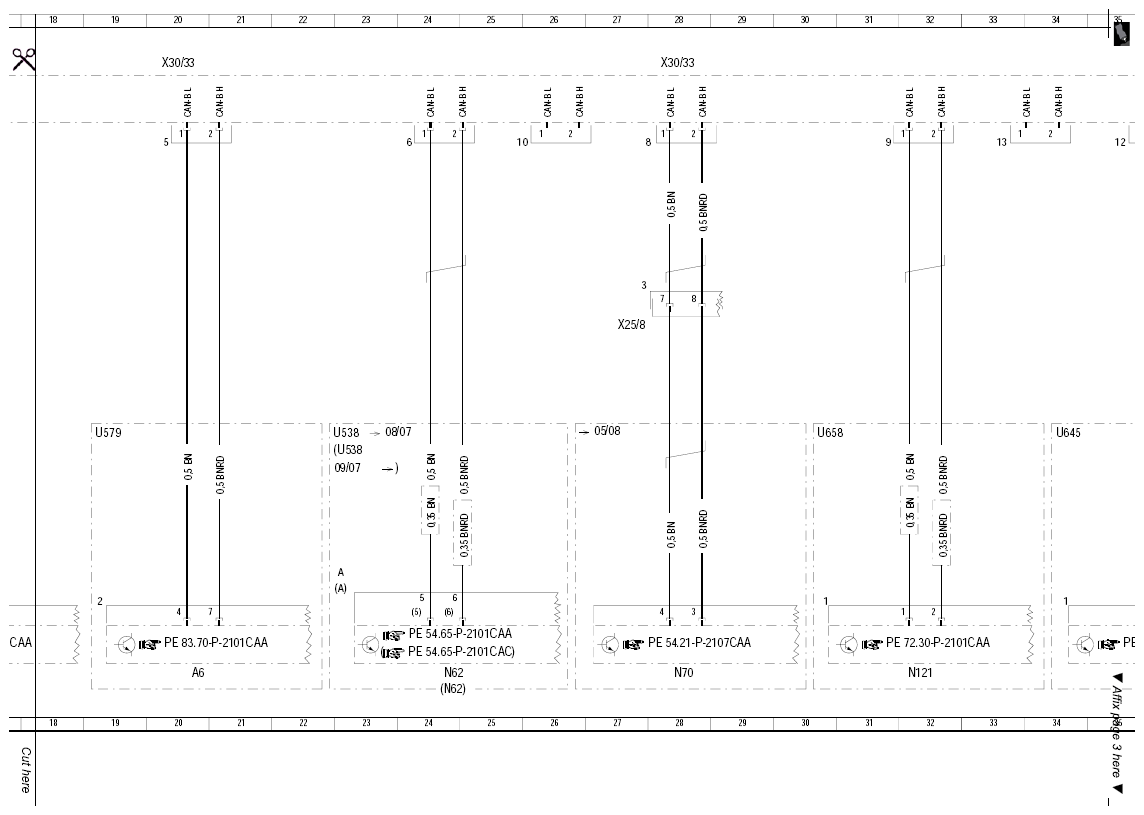

| AO |
Explanation of color codes |
40L |
| N110 |
Weight Sensing System (WSS) control unit |
13L |
| N121 |
TLC [HDS] control module |
28L |
| N22/6 |
Rear control module |
5L |
| N32/2 |
Right front seat control module |
9L |
| N62 |
PTS control module |
20L |
| N69/2 |
Right door control module |
16L |
| N70 |
Overhead control panel control module |
24L |
| N88 |
TPM control module |
32L |
| U538 |
Valid for Parktronic System |
19G |
| U645 |
Valid for tire pressure monitor system |
30G |
| U658 |
Valid for remote trunk locking |
26G |
| W19 |
Ground (right front seat crossmember) |
6E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
23 E |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
12E |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor corinector |
2L |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
3A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
12A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
20A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
28A |
