Portable CTEL interface component description - GF82.70-P-5002SXJ
MODEL 221.0/1 with CODE (498) Japan version up to Model Year 8
MODEL 216.3 with CODE (498) Japan version up to Model Year 8
Illustrated on model 221

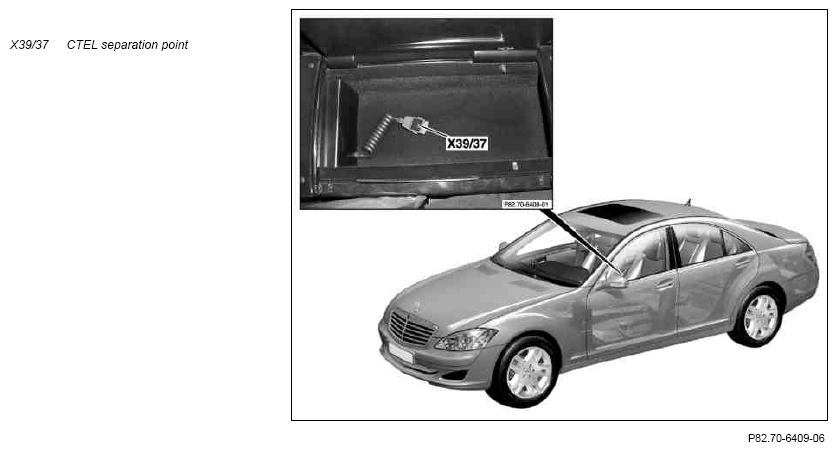

Location
The portable CTEL separation point (NTT-DoCoMo interface) is in the center console.
Task
The portable CTEL (A34/6) is connected to the COMAND controller unit (A40/3) via the portable CTEL separation point (NTT-DoCoMo interface).
