Universal Portable CTEL Interface (UPCI), function - GF82.70-P-0004SX

MODEL 221.0/1 with CODE (386) Preinstallation for telephone "Handy", UPCI system up to Model Year 8

MODEL 221.0/1 with CODE (388) Telephone "Handy", UPCI system up to Model Year 8

MODEL 216.3 with CODE (386) Preinstallation for telephone "Handy", UPCI system up to Model Year 8

MODEL 216.3 with CODE (388) Telephone "Handy", UPCI system up to Model Year 8

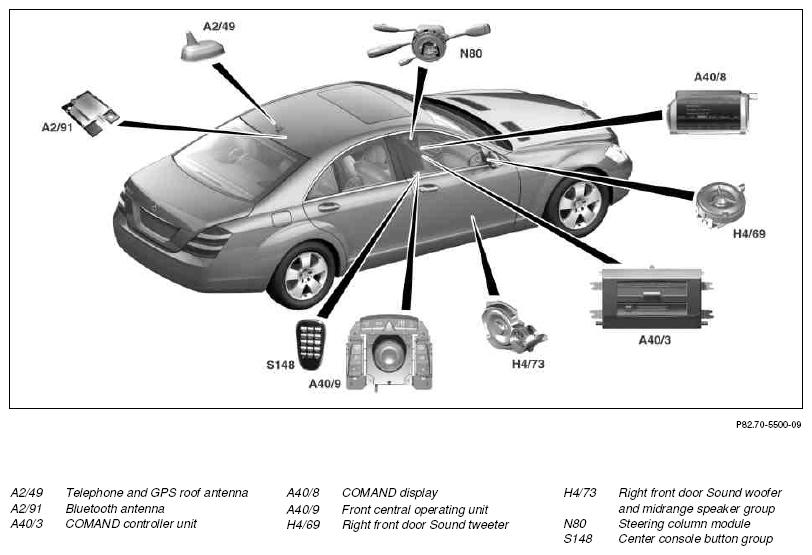

Location of components shown on model 221 with code (810) Sound system

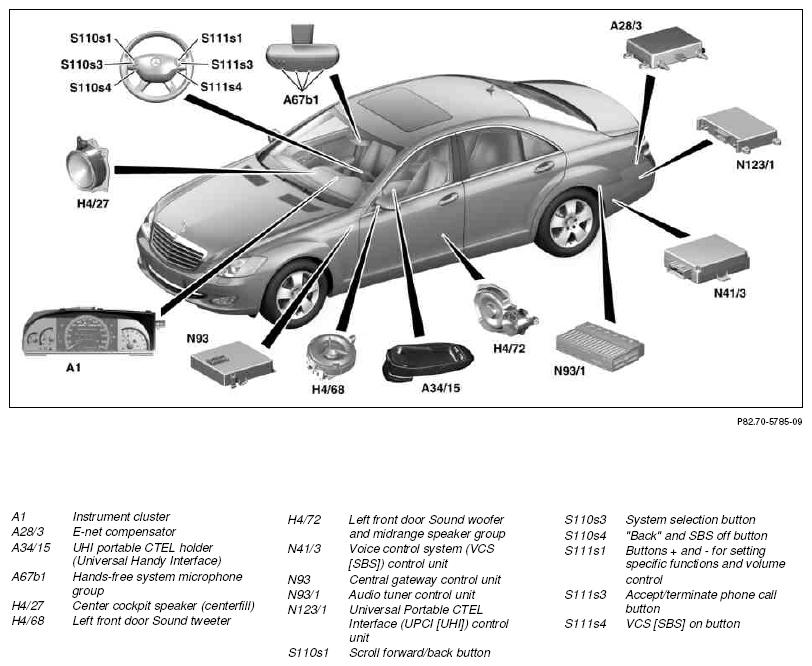

Location of components shown on model 221 up to 31.08.06 with code (810) Sound system and with code (813) Voice control system (VCS [SBS])

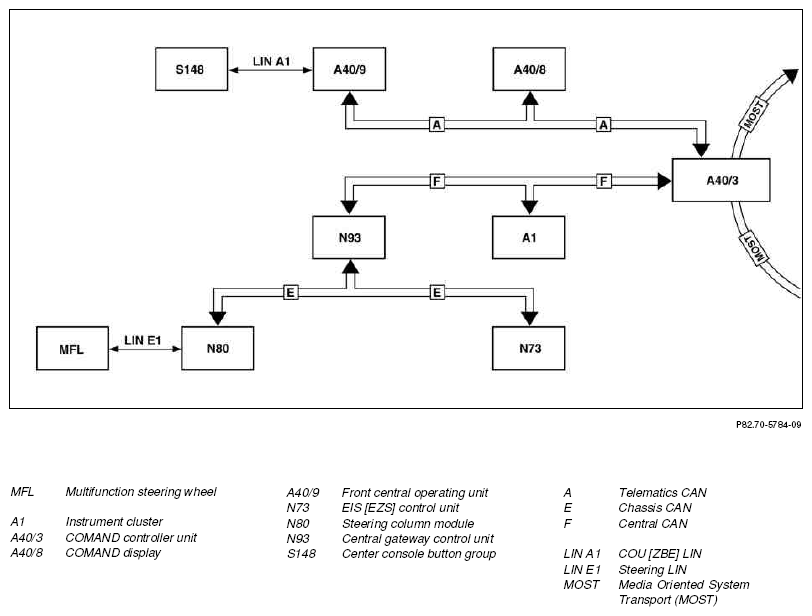

Networking of components shown on model 221

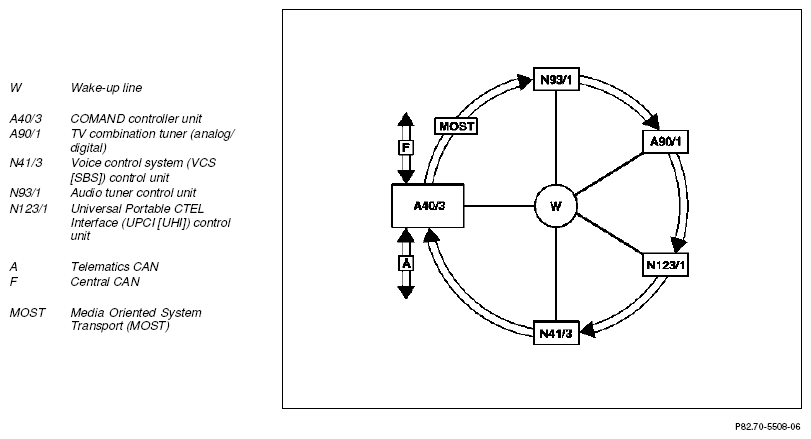

Networking of components shown on model 221 with code (813) Voice control system (VCS [SBS]) and with code (863) Digital/analog TV tuner

Function requirements:

• Power supply okay
• MOST active
• Portable CTEL (A34/6) inserted in the UPCI [UHI] portable CTEL holder (Universal Handy Interface)
• Enabled Subscriber Identification Module (SIM) card inserted in portable CTEL
• Correct Personal Identification Number (PIN) entry and successful login into the relevant mobile telephone network of the service provider

Making telephone calls in "private mode" is only possible by using a Bluetooth headset or in the rear using a Bluetooth handset.

The combination of the Universal Portable CTEL Interface (UPCI [UHI]) control unit and the relevant UPCI [UHI] portable CTEL holder (Universal Portable CTEL Interface) enables different portable CTELs (e.g. Motorola) to be operated. Equipment (e.g. laptop) with Bluetooth capability can also be operated.

The Universal Portable CTEL Interface (UPCI [UHI]) system consists of the following components:

• Bluetooth antenna
• Audio speaker system
• COMAND controller unit
• COMAND display
• Telephone and GPS roof antenna, on model 221
• Telephone and GPS antenna, on model 216
• Portable cellular telephone
• Left front door Sound tweeter, on model 221 with code (810) Sound system
• Left door Sound tweeter (H4/68), on model 216 with code (810) Sound system
• Right front door Sound tweeter, on model 221 with code (810) Sound system
• Right door Sound tweeter (H4/69), on model 216 with code (810) Sound system
• Instrument cluster
• E-net compensator
• Steering column module
• Center cockpit speaker (centerfill), with code (810) Sound system
• Hands-free system microphone group
• EIS [EZS] control unit
• Voice control system (VCS [SBS]) control unit, with code (813) Voice control system (VCS [SBS])
• Universal Portable CTEL Interface (UPCI [UHI]) control unit
• Central gateway control unit
• Center console button group
• Left multifunction steering wheel pushbutton group (S110)
• Right multifunction steering wheel pushbutton group (S111)
• Left front door Sound woofer and midrange speaker group, on model 221 with code (810) Sound system
• Left door Sound woofer and midrange speaker group (H4/72), on model 216 with code (810) Sound system
• Right front door Sound woofer and midrange speaker group, on model 221 with code (810) Sound system
• Right door Sound woofer and midrange speaker group (H4/73), on model 216 with code (810) Sound system
• UHI portable CTEL holder (Universal Handy Interface)
• Front central operating unit

On model 221 up to 31.8.06, voice input takes place via the 4 microphones integrated in the hands-free system microphone group in the inside rearview mirror unit (A67)

On model 221 as of 1.9.06 and on model 216, voice input takes place via the 2 microphones integrated in the hands-free system microphone group in the inside rearview mirror unit.

The UPCI [UHI] system contains the following functions:

• Establish phone calls in hands-free mode
• Display call numbers and caller ID
• Display stored telephone numbers from the portable CTEL or from the Universal Portable CTEL Interface (UPCI [UHI]) control unit in the multifunction display (A1p13) of the instrument cluster and display in the COMAND display
• Selection of the menu item "TEL" with the system selection button via the left multifunction steering wheel button group
• Select the menu item "TEL" via the front central operating unit
• Scrolling (telephone directory function) using the scroll forward/back button via the left multifunction steering wheel button group
• Selection of the "Accept or terminate phone call" function using the accept/terminate phone call button integrated in the right multifunction steering wheel button group
• Transmission of all audio signals via MOST
• Voice control
• Voice input via the hands-free system microphone group
• Activation of the UPCI [UHI] system takes place via the on/off button on the portable CTEL or automatically by means of a wake-up pulse via MOST
• Deactivation of the UPCI [UHI] system takes place via the on/off button on the portable CTEL or automatically after the run-on time set on the portable CTEL
• Voice output via the audio speaker system
• Muting an active audio source during a phone call
• Display of provider name in COMAND display
• Writing, reading and transmitting SMS messages

The volume of the audio speaker system can be set individually by the user. This can be done via the buttons + and - for setting specific functions and volume control integrated in the multifunction steering wheel or via the portable CTEL.

The functions are indicated by several displays (e.g. "ENTER PIN"), which notify the user of the operating condition of the portable CTEL, in the displays of the following components:

• Portable CTEL display
• COMAND display
• Multifunction display of instrument cluster

Universal Portable CTEL Interface (UPCI [UHI]) Login	GF82.70-P-0004-03SX
Universal Portable CTEL Interface (UPCI [UHI]) Portable CTEL subscriber to public telephone network	GF82.70-P-0004-04SX
Universal Portable CTEL Interface (UPCI [UHI]) Portable CTEL subscriber to portable CTEL subscriber	GF82.70-P-0004-05SX
Universal Portable CTEL Interface (UPCI [UHI]) General	GF82.70-P-0004-06SX
Telephone switch-on/switch-off characteristics, function	GF82.70-P-2007SX
Setting up/ending phone call, function	GF82.70-P-2008SX
Phone call acceptance, function	GF82.70-P-2009SX
