Interior illumination (IBL) function - GF82.20-P-0002SX
MODEL 221.0/1, 216.3 up to Model Year 8
Shown on model 221.0
Shown on model 221.0
Function
The interior illumination (IBL) system implements the illumination of the vehicle interior. The master control unit for this is the overhead control panel control unit.
The following control options for switching on/off are available:
- Automatic, when unlocking/locking the vehicle via the central locking system (CL [ZV])
- Automatic, when opening/closing a door
- Automatic, when opening/closing the trunk lid
- Automatic, depending on the position of the rotary light switch
- Manual, when pressing a corresponding switch
With code (551) Anti-theft alarm system (ATA [EDW]) when the anti-theft alarm system (ATA [EDW]) is triggered, the following lamps are switched on immediately without dimming:
- Front dome lamp
- Left rear interior lamp (model 221)
- Right rear interior lamp (model 221)
- Left coat hook lamp (E15/24) (model 216)
- Right coat hook lamp (E15/25) (model 216)
By removing the transmitter key (A8/1) from the EIS [EZS] control unit, the front dome lamp and the rear interior lights are switched on dimmed. They are automatically switched off after the run-on time has elapsed, which can be set via the COMAND controller unit.

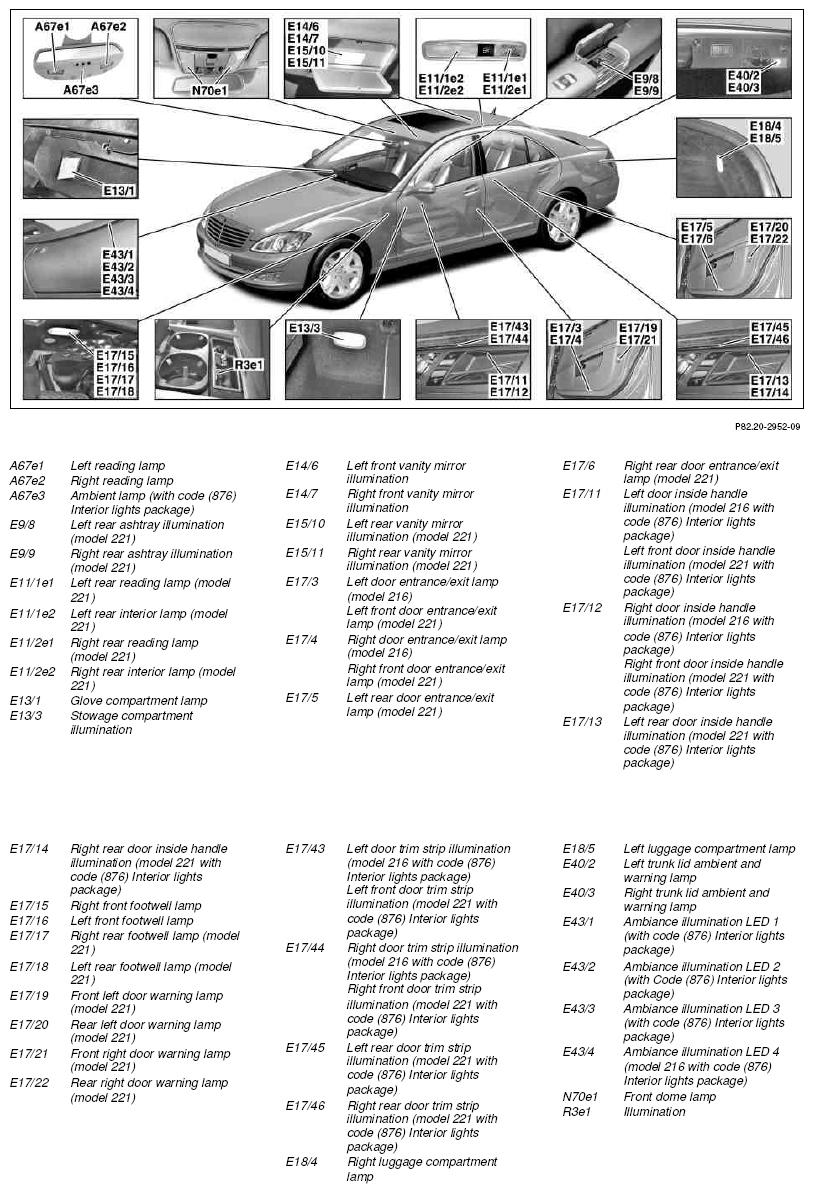

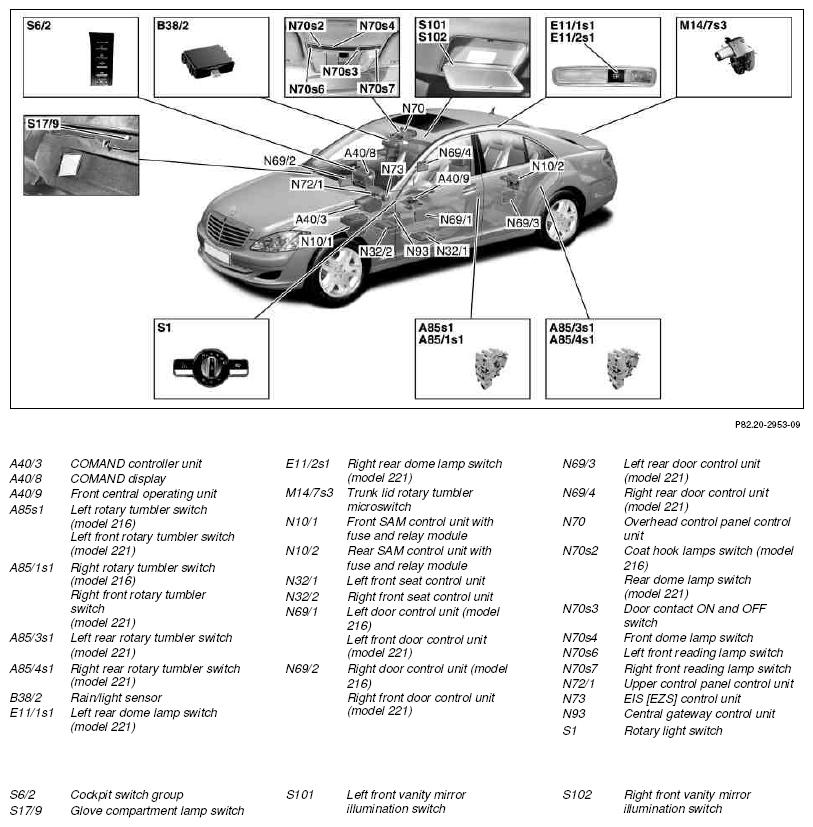

| Lamp | Installation location | Switching on/off automatically | Switching on/off Manual | Voltage supply |
|---|---|---|---|---|
| Front dome lamp | Overhead control panel | Rotary tumbler switch | Front dome lamp switch | Overhead control panel |
| Rear interior lamp (Model 221) | Rear grab handles | Rotary tumbler switch | Rear dome lamp switch | Overhead control panel |
| Left coat hook lamp and right coat hook lamp (model 216) | Rear coat hook | Rotary tumbler switch | Coat hook lamps switch | Overhead control panel |
| Front reading lamps | Inside rearview mirror unit (A67) | - | Front reading lamp switch | Overhead control panel |
| Rear reading lamps (Model 221) | Rear grab handles | - | Rear dome lamp switch | Overhead control panel |
| Front vanity mirror illumination | Front headliner | Vanity mirror illumination switch | - | Overhead control panel |
| Rear vanity mirror illumination (model 221) | Rear headliner | Integrated switch | - | Overhead control panel |
| Trunk illumination | Side paneling in trunk | Trunk lid rotary tumbler microswitch | - | Rear SAM control unit |
| Glove compartment lamp | Glove compartment | Glove compartment lamp switch | - | Upper control panel control unit |
| Stowage compartment illumination | Center console stowage compartment | Integrated switch | - | Front SAM ECU |
| Front entrance/exit lamps | Lower door panel | Rotary tumbler switch | - | Front door control unit |
| Rear entrance/exit lamps (model 221) | Lower door panel | Rotary tumbler switch | - | Rear door control unit |
| Warning lamps (model 221) | Rear door trim | Rotary tumbler switch | - | Rear door control unit |
| Front footwell lamps | Front footwell | Rotary tumbler switch | - | Upper control panel control unit |
| Rear footwell lamps (Model 221) | Rear footwell | Rotary tumbler switch | - | Front seat control unit |
| Trunk lid ambient and warning lamps | Left and right underside of trunk lid | Trunk lid rotary tumbler microswitch | - | Rear SAM control unit |
| Inside rearview mirror ambient lamp | Inside rearview mirror unit | Circuit 15 | - | Overhead control panel |
Ambiance illumination, function
The ambiance illumination can be switched on and off as follows:
- Circuit 15 On or circuit 15 Off and circuit 58d > 0% The ambiance illumination lights up permanently at the brightness level set in the COMAND controller unit.
- Circuit 15 Off and opening door
The ambiance illumination lights up with 100% brightness and is switched off after 5 min.
- Unlocking vehicle
The ambiance illumination lights up at 100% brightness and is switched off after 30s.
- Circuit 15 Off and closing all doors
The ambiance illumination lights up at 100% brightness and is switched off after 8s.
- Locking vehicle
The ambiance illumination lights up at 100% brightness and is switched off after 3s.
| Lamp | Installation location | Voltage supply |
|---|---|---|
| Front door trim strip illumination | Door inside | Front door control unit |
| Rear door trim strip illumination (model 221) | Door inside | Rear door control unit |
| Front door inside handle illumination | Handle recesses | Front door control unit |
| Rear door inside handle illumination (model 221) | Handle recesses | Rear door control unit |
| Ambiance illumination | Instrument panel | Upper control panel control unit |
Control illumination, function
The switch and controls illumination is activated when
- Rotary light switch is set to "Standing lights"
- Rotary light switch is at position "Automatic" and the rain/light sensor signals "Night"
The brightness of the switch and controls illumination can be adjusted via the switch and controls illumination/Night View Assist display brightness control (S6/2r1) integrated into the cockpit switch group. The brightness control is read in by the upper control panel control unit via the upper control panel LIN. The upper control panel control unit transmits the signal of circuit 58d in steps of 0 to 100% on the interior CAN.
The following control units are supplied with circuit 58d via CAN:
- Via interior CAN
- Front SAM control unit with fuse and relay module
- Rear control unit (N22/6) (model 216)
- AAC [KLA] control unit (N22/1)
- Door control units
- Overhead control panel control unit
- EIS [EZS] control unit
- Central gateway control unit
- Rear air conditioning control unit (N22/4) (with code (582) Rear air conditioner)
- Via central CAN (routed by the central gateway control unit)
- Instrument cluster (A1)
- COMAND controller unit
- Via telematics CAN (routed via the central gateway control unit and the COMAND controller unit)
- COMAND display
- Front central operating unit
- Left rear display (A40/5) (with code (864) Rear entertainment system)
- Right rear display (A40/6) (with code (864) Rear entertainment system)
- Audio/video controller control unit (N66/3) (with code (864) Rear entertainment system)
- RCP [HBF] control unit (N72/2) (with code (864) Rear entertainment system or code (406) Rear multicontour seat)
- Via chassis CAN (routed by the central gateway control unit):
- Steering column module (N80)
- Radar sensors control unit (SGR) (N62/1) (with code (233) Distronic Plus)
With circuit 58d applied, the control units actuate the switch and controls illumination for the particular controls that are connected.
| Interior illumination (IBL) component network | Interior and rear lights | GF82.20-P-0002-02SXA | |
| Entrance/exit lamps, warning lamps | GF82.20-P-0002-02SXB | ||
| Footwell lighting | GF82.20-P-0002-02SXC | ||
| Search and controls illumination | GF82.20-P-0002-02SXE | ||
| Ambiance illumination Vehicles with code (876) Interior lights package) |
GF82.20-P-0002-02SXD | ||
| Block diagram for interior illumination (IBL) | GF82.20-P-0002-04SX | ||
