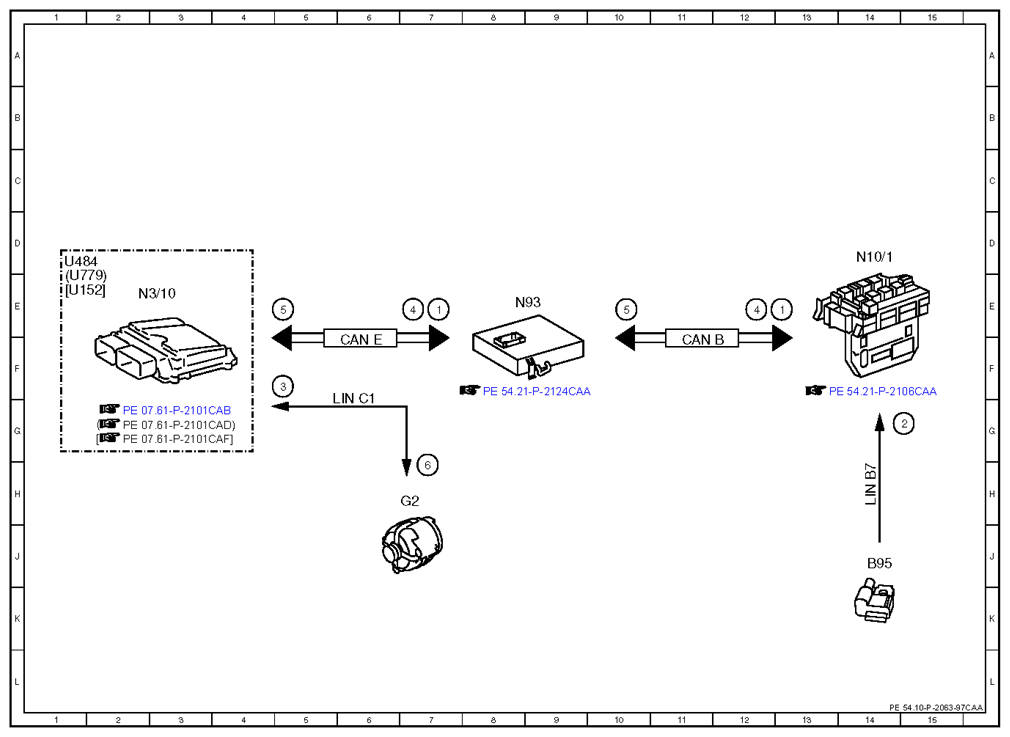

Electrical function schematic for dynamic idle speed increase - PE54.10-P-2063-97CAA
MODEL 216.3 as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 61, status | 7E |
| 1 | Circuit 61, status | 13E |
| 2 | Battery sensor, signal | 15G |
| 3 | Alternator, signal | 5F |
| 4 | Alternator, status | 7E |
| 4 | Alternator, status | 12E |
| 5 | Idle speed increase, request | 5E |
| 5 | Idle speed increase, request | 10E |
| 6 | Alternator, actuation | 7H |
| B95 | Battery sensor | 14J |
| CAN B | Interior CAN | 11F |
| CAN E | Chassis CAN | 6F |
| G2 | Alternator | 7H |
| LIN B7 | On-board electrical system LIN | 14H |
| LIN C1 | Drive train LIN | 6G |
| N10/1 | Front SAM control unit with fuse and relay module | 14D |
| N3/10 | ME-SFI [ME] control unit | 2E |
| N93 | Central gateway control unit | 8E |
| U152 | Valid for engine 156 | 2E |
| U484 | Valid for M273 ME | 1D |
| U779 | Valid for engine 275 | 2E |
